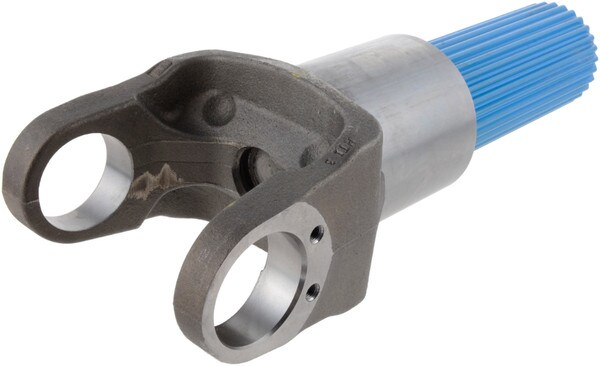

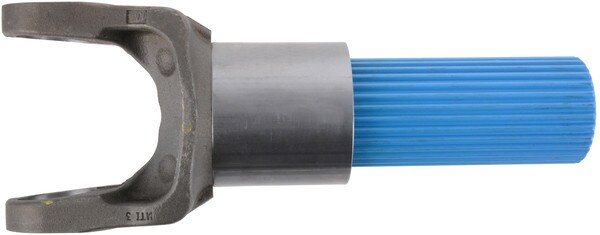

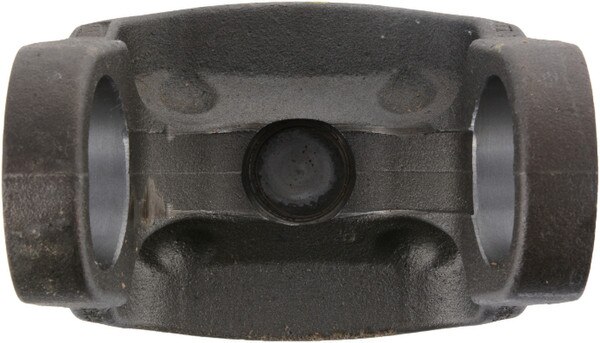

Dana Spicer Driveshaft Yoke Shaft - SPL170 Series - 170-82-10631X
Cross References
10631X, 170-82-10631X, 1708210631X, 2104-1708210631X, 21041708210631X, SP1708210631X
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913261092 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | MX |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | EA |

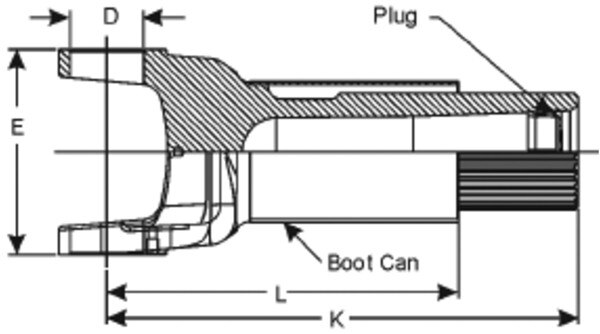

| Centerline To End Of Splne (K): | 14.547 |
| Cl To End Of Can/Tube: | 7.874 |
| End/Spline To Point/Rad. (R): | 7.874 |
| Major Spline Diameter: | 3.05 |
| Prop 65: | No |
| Series: | SPL170 |
| Spline Count: | 30 |
| Spline Length (L) In: | 1 |
| Style: | 1 |
| Type: | I |
| Description (Long Product Description): | Drive Shaft Yoke Shaft |
| Description (Short Product Description): | Yoke Shaft |
| Description (Extended Product Description): | Drive Shaft Yoke Shaft |
Features
- Dana engineering-approved for fit, form and function
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Strength and durability for long life.
- Tested for unparalleled reliability.
