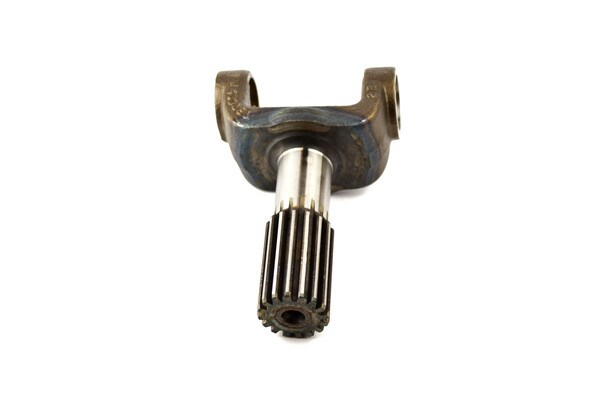

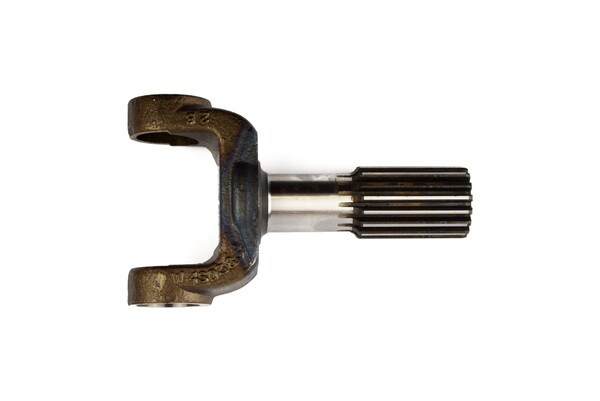

Dana Spicer Driveshaft Yoke Shaft - 1310 Series - 2-82-51
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913230265 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | US |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708990000 |
| Item Quantity Size UOM: | EA |
| Angle #1: | 16 |

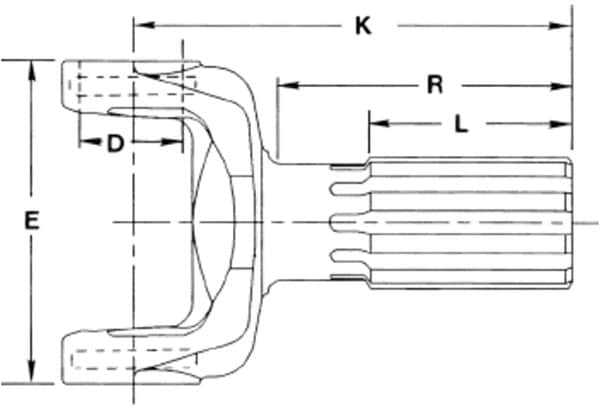

| Bearing Cap Diameter (D) In.: | 1.062 |
| Centerline To End Of Splne (K): | 5.125 |
| End/Spline To Point/Rad. (R): | 3.562 |
| Involute Spline: | N |
| Major Spline Diameter: | 1.25 |
| Outside Yoke Dimension (E) In.: | 3.469 |
| Prop 65: | No |
| Series: | 1310 |
| Spline Count: | 16 |
| Spline Hole Minor Diameter: | 1.047 |
| Spline Length (L) In: | 1.875 |
| Spline Width: | 0.109 |
| Style: | SR |
| Description (Long Product Description): | Drive Shaft Yoke Shaft |
| Description (Short Product Description): | Yoke Shaft |
| Description (Extended Product Description): | Drive Shaft Yoke Shaft |
Features
- Dana engineering-approved for fit, form and function
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component.
- Strength and durability for long life.
- Tested for unparalleled reliability.
Returns, Warranty & Cores
For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.
