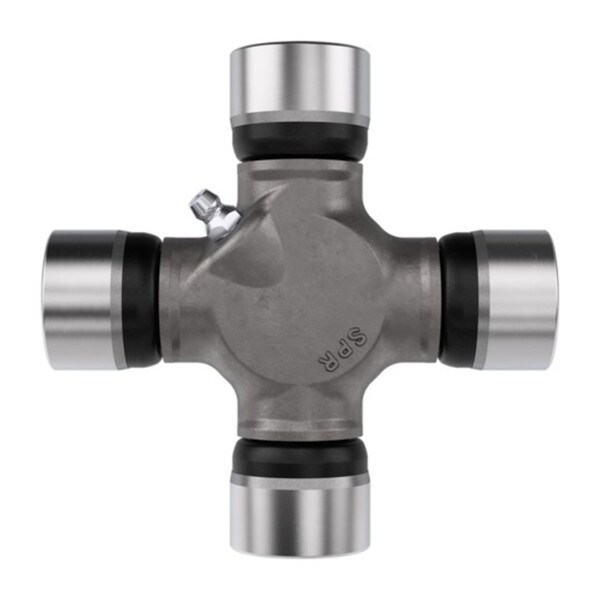

DANA UNIVERSAL JOINT - 5-160X
Cross References
073372, 081559-7, 0815597, 1000-UJ160, 1000UJ160, 10057-P2, 10057P2, 1007023, 1011120, 10420, 114560, 114560U, 11560, 11560UB, 127574R91, 14DS-22, 14DS22, 15-160X, 15160X, 1516853, 15515793, 155599179, 1752412, 2-0054, 20054, 20058, 201560, 201SJ12, 201SJ12A, 203791H1, 203791HI, 2100160, 216343, 216343A, 2185901, 21SJ12A, 2223568, 222359, 2263882, 2298621, 23153, 239004, 239044, 28054X, 28054XB, 303560, 31054, 3218621, 3290A, 3290B, 3707830, 38464, 3945104, 3CA01172, 3WO01172, 401761, 401794, 403186, 403414, 5-160XR, 5-160XU, 5-462X, 5.160X, 5160X, 5160XR, 5160XU, 5462X, 565160, 5702987, 5Y294, 5Y532, 5Y7218, 6598359, 70073372, 70081559, 702375C91, 74289R91, 81559, 815597, 8235-CP160X, 8235CP160X, 835727M91, 855846, 858846, 861452, 861453, 878624C91, 886919R91, 897732, 8MTH7039, 94081, 980613, A20499, A48709, AH8153A, AT49181, AT75226, AW371052, B6T7039A, B6TZ4635B, BB-7199W, BB7199W, CAT401794, CB1410A, CB1410U, CM5160X, CM5160XUB, CP160X, CP160X-RI, CP160XRI, D106251, D4NN4N167A, DS15-160X, DS15160X, DS5160X, DT160, E15160X, E5160X, FLT15160X, G5160X, K510X, K5GB10, K5GB103, K5GB10R, K5GB119, K5GB164, K5GB179, K5LGB103, K5LGB179, LL2428, M8X1540, N1560R, N1560RU, NUJ2100160, PRE-330, PRE330, RCUJ160, S-2860, S240058, S2860, SD15160X, TDACP160X, TT5-160, TT5160, TWDHD5160X, U0151, U0210, UJ160, UJ330, UJ330CHR, UPT20054, ZAD11560, ZAD11560UB
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913121020 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | US |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708996810 |
| Item Quantity Size UOM: | EA |

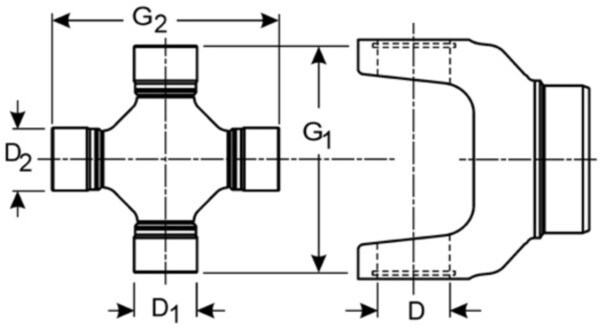

| Bearing Cap Diameter (1): | 1.188 IN |
| Bearing Cap Diameter (2): | 1.188 IN |
| Bearing Cap Diameter A (mm): | 30.175 MM |
| Bearing Cap Diameter B (mm): | 30.175 MM |
| Bearing Cap Finish: | Ground |
| Bearing Cap Type: | Round |
| Bearing Cap Type A: | OSR |
| Bearing Cap Type B: | OSR |
| Coating Type: | None |
| Grease Fitting Location: | Side of Cross |
| Grease Type: | N.L.G.I. Grade 2 |
| Grease Zerk Included: | Yes |
| Greaseable: | Yes |
| Hardware Included: | No |
| Length A (In): | 4.188 IN |
| Length A (mm): | 106.4 MM |
| Length B (In): | 4.188 IN |
| Length B (mm): | 106.4 MM |
| Material: | Steel |
| Model Number: | Spicer 1410 (SPL36) |
| Mounting Hardware Included: | No |
| OEM Mfg: | Spicer |
| OEM Series: | 1410 |
| Pre Greased: | No |
| Prop 65: | No |
| Seal Color/Finish: | Black |
| Seal Material: | Rubber |
| Snap Ring Included: | Yes |
| Snap Ring Type: | External |
| SR(1)Brng Cap to Brng Cap(OSR): | 4.188 |
| SR(2)Brng Cap to Brng Cap(OSR): | 4.188 |
| Type: | OSR Style |
| Description (Long Product Description): | Universal Joint Greaseable 1410 Series |
| Description (Short Product Description): | U-Joint |
| Description (Extended Product Description): | Universal Joint Greaseable 1410 Series |
Features
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
