WABCO Twin Air Dryer With Purge Tank - 4324330480 - 432 433 048 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

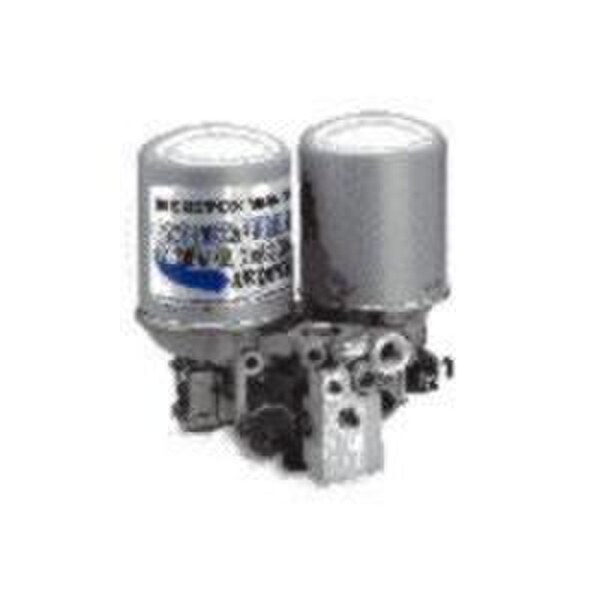

This twin air dryer contains an external purge tank used for desiccant regeneration. The system helps to remove 99.9% of oil and particulate from moving downstream. The 12 volt unit contains JED-463-0 exhaust and has a max operating pressure of 13 bar and an opening pressure of 11 bar. Temperature range is -40°C to +65°C and calculated volume is 31.451. Port thread sizes are as follows: Ports 11 and 21: 1/2" - 14 NTPF; Port 3: JED-463-0; Port 4/23: 1/4" - 18 NPTF.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO has been a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment. Best known for advanced driver assistance system (ADAS) products OnLaneASSIST, OnSide and OnGuard, WABCO continues to impress customers by upholding their mission: To create "a safer environment for all road users and providing ever-more productive fleet applications."

Features

• Contains an external purge tank
• 12 volts
• JED-463-0 exhaust
• Max operating pressure of 13 bar
• Opening pressure of 11 bar
• Temperature range is -40°C to +65°C
• Calculated volume is 31.451
• Ports 11 and 21: 1/2" - 14 NTPF; Port 3: JED-463-0; Port 4/23: 1/4" - 18 NPTF

Includes

One SS Twin air dryer with TCV 1 mm.

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

6300-4324330480, 8235-S4324330480, S432-433-048-0, S4324330480, TDAS4324330480, WAB4324330480
