Dana Spicer U-Joint Greaseable, Spicer 1710 Series Half Round - 5-675X
Details

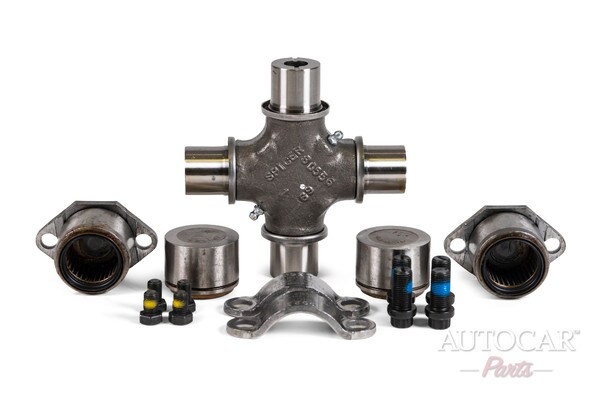

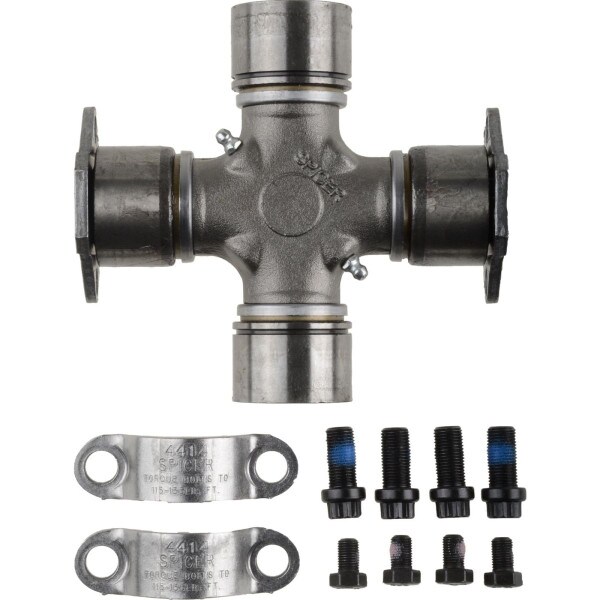

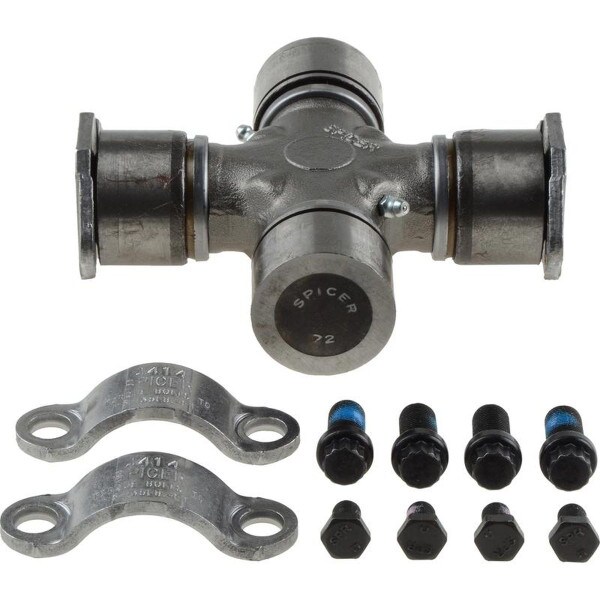

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This is a 1710 Series u-joint kit. Manufactured with OE tooling and technology, the Spicer brand guarantees a perfect fit, reliable finish and superior function.
Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.
Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is one of the leading aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for todays most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Cross References
01564194, 1000-UJ674, 1000-UJ675, 1000UJ674, 1000UJ675, 1002231, 10200.375, 102003/8, 10200375, 1020038, 1030-6, 10306, 10502222, 107587, 10800372, 109093, 1164100, 11704587, 12201, 12387782, 12900083, 14202, 15-674X, 15-675X, 15504052, 1564194, 15674X, 1607373C91, 1610COMBO, 16505, 1676698C1, 1676699C1, 1696914C91, 1696915C91, 16996914C91, 170227870, 1710COMBO, 2022453, 2055279, 2055356, 20QE1330, 2104-5674X, 2104-5675X, 21045674X, 21045675X, 21216003, 212160034, 2170-5674X, 21705674X, 225595, 226691, 226691N, 227856, 227870, 228195, 229603, 23000, 2300558, 2300560, 23010P, 239465, 2394655, 2413400, 24UJ674, 2600279, 26691, 275451, 277710, 27856, 27870, 279HR, 280HR, 281190, 281349, 285530, 30101, 30475, 31402751584, 320001, 320001VEL, 320014, 320014VEL, 329206, 3507657, 3526AX, 352816, 37780, 3901410, 3918978, 3918979, 3948981, 4-0674, 401008, 401008TRA, 401166, 40674, 41219131, 450GH, 46007700000, 479011, 4823010P, 48FP5675, 48P5438X, 48P5515X, 4D0487, 5 674X, 5 675X, 5-438X, 5-515X, 5-671X, 5-674X, 5-674XR, 5-675X, 5.674X, 5.675X, 5001338, 5003525, 5003979, 5003987, 51216003, 5178BG, 52801, 53109165, 5396-KN23010, 5396KN23010, 5438X, 5461X, 5515X, 5515XSP, 5584730, 5584780, 5671X, 5674X, 5674X-SP, 5674XR, 5674XSP, 5675XSP, 5675XTO, 599604, 6-0674, 6-0675, 60674, 60675, 6279309915, 6300227870, 6305003987, 643457C91, 654418, 6600962, 69130, 6948640, 6K6824, 706135, 72394655, 72803-0016, 728030016, 737238335993, 737238338871, 745-227856, 745-227870, 745227856, 745227870, 745800373, 752.5675X, 7525674X, 7525675X, 753970C91, 76059069, 765104, 767653010359, 7V3842, 7V4077, 800371, 800373, 800373BXW, 800373N, 800373TR, 800375, 8211826000, 8235-M675X, 8235-R674X, 8235M675X, 8235R674X, 86683294, 90013846, 930130, 931130, 9341990050, 9341990070, 9341990100, 9535122, 98005218, 98005228, 99410270, A1030, A16739, A16739-001, A16739001, A84923-001, A84923001, AC16739, ACF-9416-1, ACF94161, AE765104, AT225137, AV23010, AVKN23010, BBH-RB-23010, BBHRB23010, BE225595, BE226691, BE227856, BE228195, BE800371, BE800373, BEN226691, BEN227856, BGIKN23010, BGKN23010, BH226691, BH227856, BH228195, BH800371, BH800373, BP226691, BP227856, BP227870, BW107587, BW225595, BW226691, BW227856, BW227870, BW228195, BW277710, BW281349, BW285530, BW5001338, BW5003979, BW800371, BW800373, BW800373TR, BW800375, BWBW226691, BWBW227856, BWBW227870, BWBW228195, BWBW800371, BWS226691, BWS227856, BWS227870, BWS800371, BWS800373, BX226691, BX227856, BX227870, BX228195, BX277710, BX285530, BX800373, CP16S, CP16S1, CP16S2, CP17N38, CP17S, CP17S1, CP17S2, CP17S5, CP438X, CP515X, CP674X, CP675X, CR42791, CR52801, CR60675, CRUJ475, CRUJ476, D5674X, D5675X, D85515X, D85675X, D8DT515, DA5438X, DA5515X, DA5674X, DA5675X, DKN23010, DL737238335993, DLCP16S1, DLCP17S1, DLR674X, DLR675X, DO21045675X, DO5438X, DO5461X, DO5515X, DO5674X, DO5675X, DO5675XSP, DOSP5675X, DP5515X, DS15-674X, DS15674X, DS5674X, DS5675X, DS675, DT515, DT5515X, E-674X, E-BN227870N, E-US674X, E12979106, E4073176, E5674X, E5675X, E674X, E675X, E7HZ4635A, E7HZ4635B, EBN227870N, EM40650, EM69130, EUS674X, F488001, FLSP5515X, FLT15674X, FLT15675X, FLT5674XQ, FLT5675XQ, FP5675, G1202267, G15504052, G2055356, GT-5-438X, GT5438X, HD5674X, HD5675X, HDXKN23010, HKN23010, IKN23010, K115110, K5-674X, K5674X, K5675X, KN23010, KN23080, LP2300560, LPLP2300560, LV1041, LV1044, M674X, M675X, MBIKN23010, MBKN23010, MBLP2300560, MBW227870, MDKN23010, MDLP2300560, MERCP675X, MIDKN23010, MIKN23010, MIKN23080, MILP2300560, MIN13526AX, MKN23010, MS5178BG, MSDO5675X, MSMDKN23010, MSRWR675X, MSSP5675X, N13526AG, N13526AX, N13526AY, N13526BE, N226691, N227856, N30252B, N4-0674, N4110, N6-0675, NE42791, NE52801, NI40674, NI42791, NI52801, NI60675, NP40674, NP42791, NP52801, NP60675, NP6675, NUJ2300558, NUJ2600279, OTR23000, P0226691, P0227856, P226691, P227856, P227870, P5-674X, P5438X, P5515X, P5674X, P5675X, P800373, PA69130
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913121877 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | MX |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708996820 |
| Item Quantity Size UOM: | EA |
| Bearing Cap Diameter (1): | 1.938 IN |
| Bearing Cap Diameter (2): | 1.938 IN |
| Bearing Cap Diameter A (mm): | 49.225 MM |
| Bearing Cap Diameter B (mm): | 49.225 MM |
| Bearing Cap Type: | Bearing Plate X Round |
| Bearing Cap Type A: | Bearing Plate |
| Bearing Cap Type B: | Round |
| Bearing Plate (1): | 6.094 IN |
| Distance Between Bolts (1): | 2.437 IN |
| Grease Fitting Location: | Side of Cross |
| Grease Zerk Included: | Yes |
| Greaseable: | Yes |
| Hardware Included: | Yes |
| Length A (In): | 6.094 IN |
| Length A (mm): | 154.788 MM |
| Length B (In): | 6.094 IN |
| Length B (mm): | 154.788 MM |
| Material: | Steel |
| Mounting Hardware Included: | Yes |
| OEM Mfg: | Spicer |
| OEM Series: | 1710 |
| Pre Greased: | No |
| Prop 65: | No |
| SR(2)Brng Cap to Brng Cap(OSR): | 6.094 |

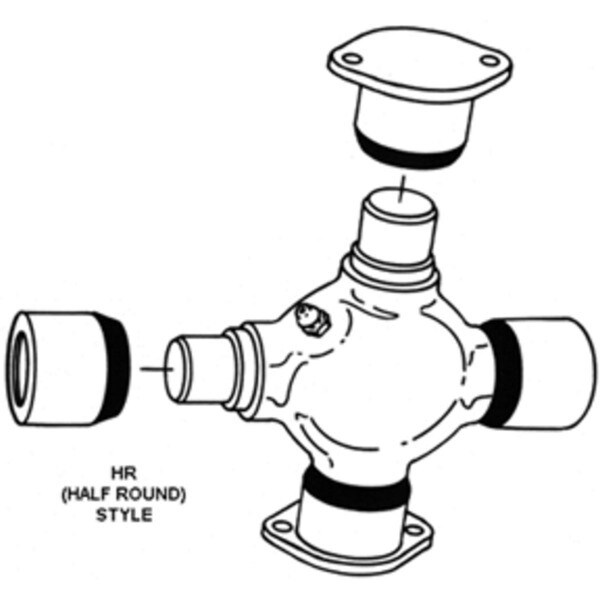

| Type: | HR Style |
| Description (Long Product Description): | Universal Joint Greaseable; Spicer 1710 Series Half Round |
| Description (Short Product Description): | U-Joint |
| Description (Extended Product Description): | Universal Joint Greaseable; Spicer 1710 Series Half Round |
Features
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
- Built to meet OE standards set by Dana
- Genuine OE quality. Tested and proven.
- Tested and validated to rigorous OE specifications
