  • DANA Spicer U-Joint Kit 1310 Series Lube Type - 5-153X - 5-153X

DANA Spicer U-Joint Kit 1310 Series Lube Type - 5-153X - 5-153X

Details

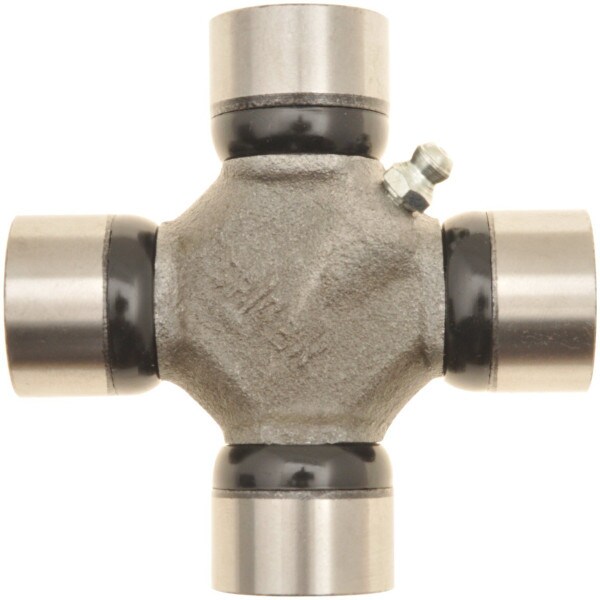

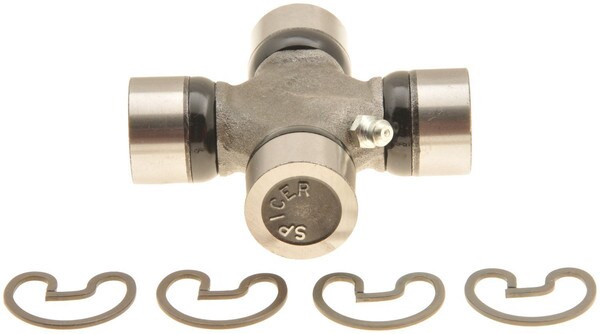

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This u-joint kit has the following specs - Both Bearing Cap Diameters 1.062, Both Snap Rings 3.219, greaseable, Forged Cross.


Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.


Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is one of the leading aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for todays most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.


Cross References

1-0121, 1-0153, 1-0200, 10153, 10153BHD, 10153HD, 1310X, 41201, 5-1310X, 5-153, 5-283X, 5-785X, 5002322, 51310X, 5153X, 5252X, 5283X, 5529X, 5625X, 5785X, 752.5153X, BL329, BL369, CP120X, CP121X, CP1310X, CP153X, CP200X, CR10153, DLCP120X, DLCP121X, DLCP153X, DS51310X, DS5153X, E51310X, FLT15153X, HD5153X, MS41201, N110121, NE10121, NE10153BF, NP10121, NP10153, NP10153BF, NP5121, S-2171, SP 5 153X, SP5-153X, SP51310X, SP5153X, SPI-5-1310X, SPI51310X, SPL22-1X, SPL22-6X, SPL221X, SPL226X, UJ369

Specifications

Brand Label:Spicer
Item-Level GTIN:00023913121051
Hazardous Material Code (Y/N):N
EXPI Data (Country of Origin):US
EXPI Data (Harmonized Tariff Code (HTS)):8708996810
Item Quantity Size UOM:EA
Bearing Cap Diameter (1):1.062 IN
Bearing Cap Diameter (2):1.062 IN
Bearing Cap Diameter A (mm):26.975 MM
Bearing Cap Diameter B (mm):26.975 MM
Bearing Cap Finish:Ground
Bearing Cap Type:Round
Bearing Cap Type A:OSR
Bearing Cap Type B:OSR
Coating Type:None
Grease Fitting Location:Side of Cross
Grease Type:N.L.G.I. Grade 2
Grease Zerk Included:Yes
Greaseable:Yes
Hardware Included:No
Length A (In):3.219 IN
Length A (mm):81.8 MM
Length B (In):3.219 IN
Length B (mm):81.8 MM
Material:Steel
Model Number:Spicer 1310/SPL22
Mounting Hardware Included:No
OEM Mfg:Spicer
OEM Series:1310
Pre Greased:No
Prop 65:No
Seal Color/Finish:Black
Seal Material:Rubber
Snap Ring Included:Yes
Snap Ring Type:External
SR(1)Brng Cap to Brng Cap(OSR):3.219
SR(2)Brng Cap to Brng Cap(OSR):3.219
Type:OSR Style
Description (Long Product Description):Universal Joint Greaseable 1310 Series OSR
Description (Short Product Description):U-Joint
Description (Extended Product Description):Universal Joint Greaseable 1310 Series OSR
