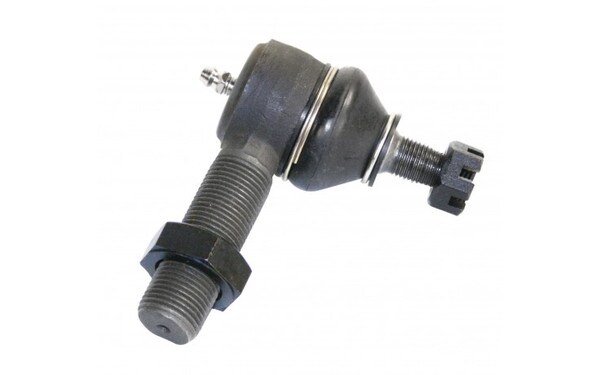

DANA SpicerTie Rod, RH - 220TR119 - 220TR119
Details
High Quality Bearing Design. Reliable . Safety. Greaseable socket design allows new lubricant to flush toxin from the assembly.
This part is under warranty for twelve (12) Months/1 Year; some exceptions may apply depending on application and part. Please contact our customer service team for warranty details.
Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is one of the leading aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for todays most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Cross References
10QH248P3, 10QH248P4, 10QH248P5, 10QH310P1, 10QH311, 10QH311P1, 10QH39, 10QH39P1, 12011-BNW, 12011BNW, 12541320, 12969, 1300383, 1300391, 143640-005, 143640005, 15584419, 15584420, 1654912C91, 1660295, 1660296, 1663000C91, 1668480C91, 1677271C91, 18QK214P2, 18QK23A, 18QK29301, 1J-2-58, 1J258, 2005676, 2041L, 2075447, 2091R, 21-2091R, 21-2115R, 21-2204R, 21-2209R, 21-3030R, 21-303OR, 21-431L, 21-431R, 2113R, 2114R, 2115R, 212041L, 212091R, 212115R, 212202R, 212204R, 212209R, 213030R, 213034R, 21303OR, 21376L, 21376R, 21431L, 21431R, 2204R, 220TR116, 220TR117, 220TR130, 2452860, 2452861, 2456860, 25005676, 25020925, 269-2158, 269-2159, 269-2311, 269-2485, 269-2644, 269-2645, 269-2710, 2692158, 2692159, 269228, 2692311, 2692312, 2692446, 2692447, 2692485, 2692644, 2692645, 2692698, 2692710, 2695098, 2719-818471, 2719818471, 289-00-010, 28900010, 2R230070, 2R230073, 2R230104, 30023, 30041, 30052, 30070, 30071, 30073, 30091, 30104, 310-228, 310-229, 310-284, 310-316, 310-318, 310-323, 310-395, 310-398, 310-425, 310-434, 310-460, 310188, 310189, 310228, 310229, 310268, 310269, 310284, 310316, 310318, 310323, 310395, 310397, 310398, 310424, 310425, 310434, 310460, 3144-F-448, 3144F448, 32022, 3310316, 340245002, 3613900000, 363272, 363273, 3634206, 3634207, 37003-5030, 370035030, 37024-4403, 37024-5002, 370244403, 370245002, 3919225, 3945962, 4300273, 442354C91, 442354C92, 462.ES2091R, 462.ES3030R, 462.ES431R, 462.ES431RI, 462.ES431RL, 462.ES4601L, 462.ES4601R, 462ES2091R, 462ES3030R, 462ES431R, 462ES431RI, 462ES431RL, 462ES4601L, 462ES4601R, 486355C91, 486355C91F, 486355R91, 50552793, 506684C91, 5205150, 5207095, 56ES2040R, 56ES2091R, 56ES376L, 581063C91, 590584C91, 61320603, 61320607, 685504, 686355C91, 692644, 729374160607, 729374228000, 798203, 8022113R, 8022114R, 8022115R, 802431L, 802431R, 818471, 82-10507, 820625, 820627, 820695, 8210507, 8235-R230070, 8235-R230071, 8235-R230104, 8235R230070, 8235R230071, 8235R230104, 838308B, 839307B, 839308B, 85106954, 85112008, 887783A, 887784A, 8SV5001A18, 8SV5004D1, 9091R, 9631R230104, 969055R91, 969056R91, 99500, A3144D394, A3144D550, A3144F448, A3144J296, A3144K296, A3144K297, A3144T1138, A3144U437, A3144V437, A3144V438, A3144Z546, ARE-9950, ARE-9986, ARE-9990, ARE9950, ARE9986, ARE9990, ARE9991, ATIR230104, AU887783A, AU887784A, BA212041L, BA212115R, BA21376L, BA21376R, BA21431L, BA21431R, BAE4616, BAE4617, BES431L, BES431R, CE4616, CE4617, CS3634206, CS3634207, CV2452860, CV2452861, D0H3A130B, D0HZ3A130B, D0HZ3A130C, D0HZ3A131B, DAY310228, DAY310229, DLA3144J296, DLA3144K297, DLR230022, DLR230023, DLR230041, DLR230071, DLR230104, DN310228, DN310229, DN310284, DN310323, DN310395, DN310424, DN310425, DN310434, DP310188, DP310189, DP310228, DP310229, DP310268, DP310269, DP310284, DP310395, DP310424, DP310425, DZSP692645, E-4616, E-4617, E-4618, E-4629, E-6856, E-9877, E12003, E12004, E12011, E12969, E4616, E4617, E4618, E4629, E5393, E6824, E6856, E9877, E9880, E9950, E9979, E9986, E9990, E9991, EATE2021, EATE2022, ECE4616, ECE4617, ECTE2021, ECTE2022, ECTE2043, ECTE2044, ECTE2453, ECX4616, ECX4617, EE4616, EE4617, EM99500, EM99900, ES-2115R, ES2040R, ES2041L, ES2090L, ES2091R, ES2091RI, ES2113R, ES2114R, ES2115R, ES2116L, ES2202R, ES2204R, ES2207R, ES2209R, ES3030-31LR, ES303031LR, ES3030R, ES3033L, ES3034R, ES3056, ES3057, ES3144R, ES346L, ES376L, ES376R, ES431L, ES431LR, ES431NR, ES431R, ES9091R, ETN818471, EU729374160607, EU729374228000, EUCE4616, EUCE4617, EUE4616, EUE4617, EUE4629, EUE5393, EUE6856, EUE9877, EUEE4616, EUEE4617, EXEM99500, EXEM99900, F6ES2040R, F6ES2041L, F6ES2113R, F6ES2114R, F6ES2115R, F6ES376L, F6ES376R, F6ES431L, F6ES431R, FEA3144J296, FEA3144K297, FEL28SV5004D1, FGES2113R, FGES2114R, FGES2115R, FGES3030R, FGES431L, FGES431R, FJES431L, FJES431R, FLDS1289, FLES2040R, FLES2041L, FLES2091R, FLES3030R, FLES376L, FLES376R, FLES431L, FLES431R, FLT3030R, FLT431R
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913180522 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | US |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8708947550 |
| Item Quantity Size UOM: | EA |
| Ball Ctr To Castle Nut Thread: | 2.61 |
| Large Taper Diameter: | 1.234 |
| Length Rod End - Socket Ctr: | 12.69 |
| Prop 65: | No |
| Purge Valve (Yes/No): | Y |
| Rod End Thread: | 1.875 x 12 |
| Rod End Thread Length: | 4.75 |
| Seal Type: | Boot |
| Side: | Right |
| Small Taper Diameter: | 1.086 |
| Taper Length Seal To Taper End: | 1.3 |
| Tie Rod Type: | Dropped |
| Total Taper Length: | 1.41 |
| Zerk/Lube Fitting: | Center |
| Description (Long Product Description): | Tie Rod Ends - Spicer - Right Hand |
| Description (Short Product Description): | Steering Tie Rod End |
| Description (Extended Product Description): | Tie Rod Ends - Spicer - Right Hand |
Features
- Built to meet OE standards set by Dana
- Genuine OE quality. Tested and proven.
- Includes everything you need for new king pin and bushing installation
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
