  • DANA Spicer Flange Yoke SPL170 Circular Steel - 170-2-39-1 - 170-2-39-1

DANA Spicer Flange Yoke SPL170 Circular Steel - 170-2-39-1 - 170-2-39-1

Details

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This is an SPL170 Series flange yoke. Manufactured with OE tooling and technology, the Spicer brand guarantees a perfect fit, reliable finish and superior function.


Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.


Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.

Cross References

Specifications

Brand Label:Spicer
Item-Level GTIN:23913248567
Hazardous Material Code (Y/N):N
EXPI Data (Country of Origin):Mx
EXPI Data (Harmonized Tariff Code (HTS)):8708990000
Item Quantity Size UOM:Ea
Description (Long Product Description):Drive Shaft Flange Yoke
Description (Short Product Description):Flange Yoke
Description (Extended Product Description):Drive Shaft Flange Yoke

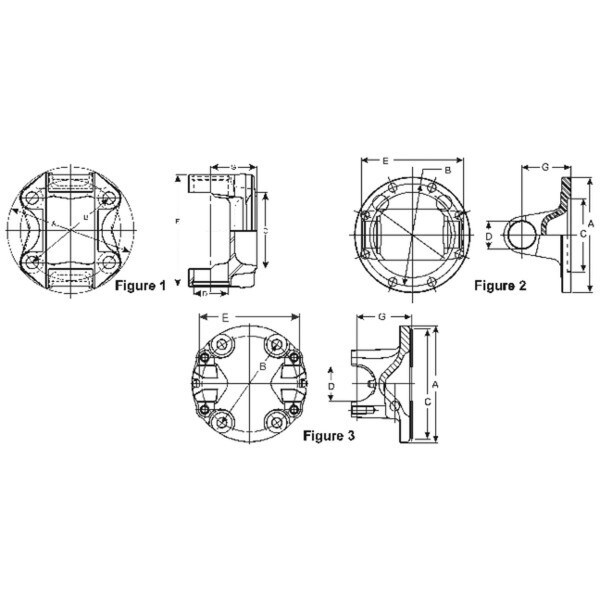

Bolt Circle Dia. In. (B):7.25
Bolt Hole Dia. In (B):.479 - Drilled
Design:Circular
Flange Face To C/L In. (G):3.375
Flange Or Swing Dia. In. (A):8
Joint Angle #1:3
Material:Steel
Number Of Bolt Holes:12
Outside Yoke Dimension In.(E):6.026
Pilot Dia. M=Male F=Female (C):7.750 - Male
Prop 65:No
Series:Spl170
Yoke Bearing Dimension In. (D):2.166
