DANA Spicer End Yoke Assembly 1310 26 Spline - 2-4-8091X - 2-4-8091X

Product Description

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you.

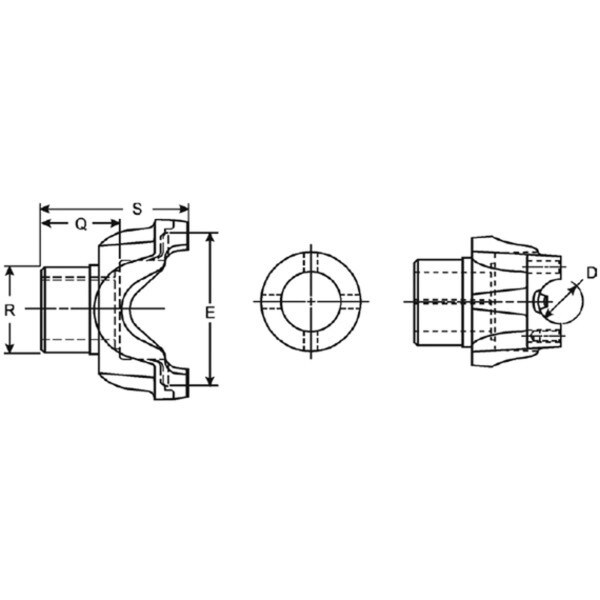

Made from steel, this 1310 Series end yoke assembly has 26 splines, a U-Bolt yoke style and a 1.552 in. hub diameter. C/L to end hub measures 3 inches. Outside yoke dimension measures 3.219 inches. Yoke bearing dimension measures 1.062 inches. Major diameter measures 1.146 inches. Length thru hole measures 1.5 inches.

Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.

Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today's most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.

Features

• 1310 Series
• 26 splines
• U-Bolt yoke style
• 1.552 in. hub diameter

Includes

One (1) end yoke assembly

Warranty

1-3 years depending on vocation and part category. See Dana Spicer warranty guide for more information.

Specifications
