  • DANA Spicer End Yoke Assembly SPL170 39 Spline - 170-4-281-1X - 170-4-281-1X

DANA Spicer End Yoke Assembly SPL170 39 Spline - 170-4-281-1X - 170-4-281-1X

Details

When it comes to the best drivetrain components on the market, the Dana and Spicer brands are legendary. Prolong the life of your vehicle, experience reduced noise, vibration, and harshness during your journey, and enjoy performance mile after mile, no matter where your trip takes you. This SPL170 Series end yoke assembly has 39 splines, an HR yoke style and a 3.0 in. hub diameter.


Dana Spicer parts are typically warrantied for 1-3 years from the date of purchase depending on the part category and vocation.


Whether you are driving between the lines or outsideof them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is the undisputed leader among aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for today' most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.


Cross References

170-4-2001-1X, 170-4-281-1X, 170-4-281-1XR, 170420011X, 17042811X, 17042811X-SP, 17042811XR, 17042811XSP, 170MU51P37, 170N42811X, 176MU41P13, 2104-17042811X, 210417042811X, 210841, 2502777C91, 25166910, 2607593C91, 3513135C91, 4333-2502777C91, 4333-3513135C91, 43332502777C91, 43333513135C91, 8081932, BCY-7196, BCY7196, D17042811X, DO17042811X, DS17042811X, E17042811X, S-13867, S13867, SP17042811X, TWD17042811X

Specifications

Brand Label:Spicer
Item-Level GTIN:23913249151
Hazardous Material Code (Y/N):N
EXPI Data (Country of Origin):Mx
EXPI Data (Harmonized Tariff Code (HTS)):8708990000
Item Quantity Size UOM:Ea
Description (Long Product Description):Pinion Shaft End Yoke
Description (Short Product Description):Diff End Yoke
Description (Extended Product Description):Pinion Shaft End Yoke
Assembly:Y

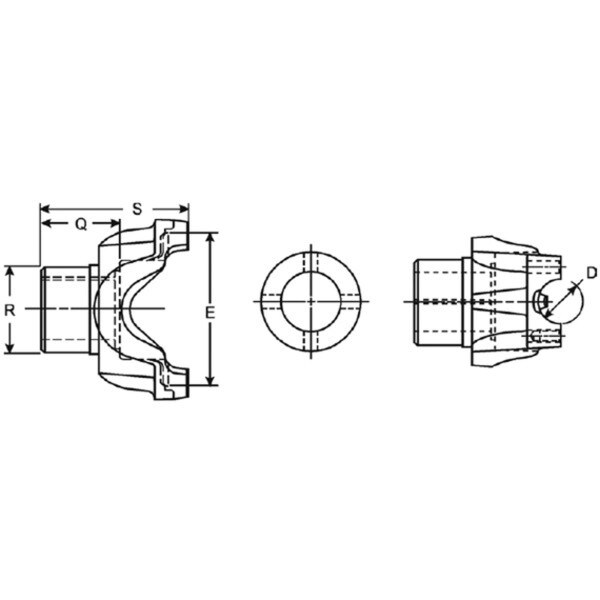

C-Bore Depth:0.25
C/L To End Hub S:6.24
California Proposition 65:Warning: Cancer - Www.P65Warnings.Ca.Gov
Hub Diameter R:3
Includes Slinger/Plug:Y
Involute Spline:Y
Length Thru Hole Q:2.281
Major Diameter:2.024
Material:Steel
Outside Yoke Dimension (In) E:6.456
Prop 65:Yes
Series:Spl170
Spline Count:39
Type:Splined Hole
Yoke Bearing Dimension (In) D:2.166
Yoke Style:Hr

Returns, Warranty & Cores

For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.

Prop 65

WARNING: Cancer and Reproductive Harm -
