  • Dana Spicer Steering Tie Rod End Assembly - 971443

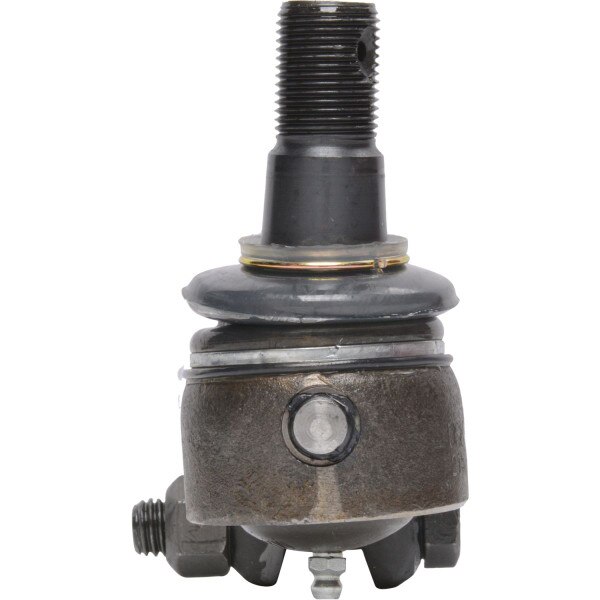

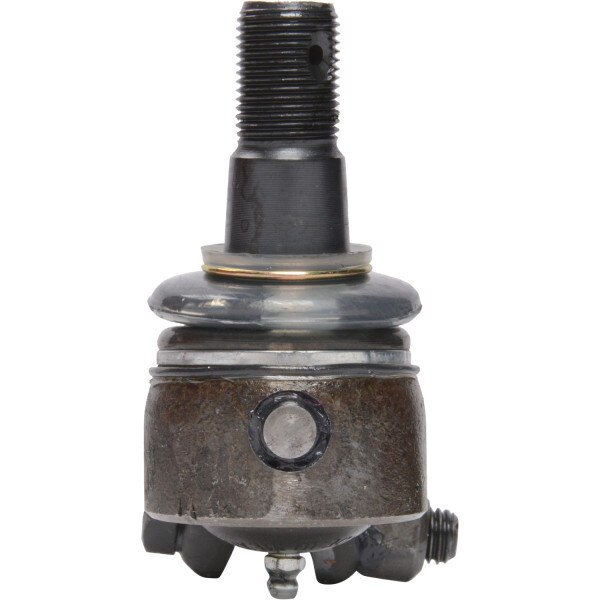

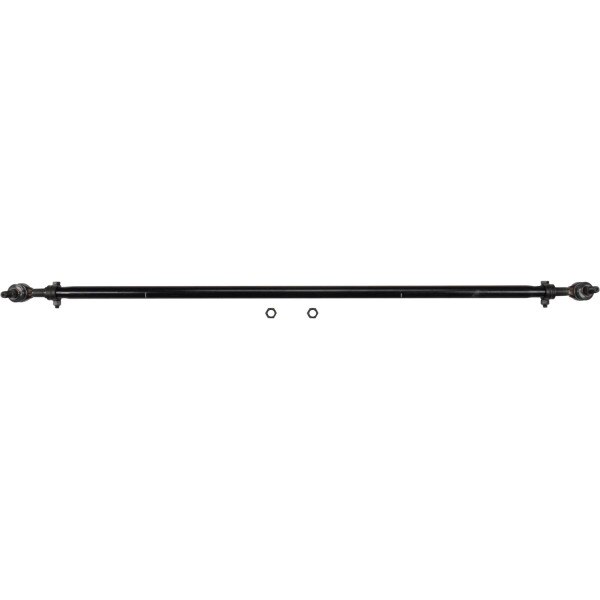

Dana Spicer Steering Tie Rod End Assembly - 971443

Details

Designed for minimal downtime and fewer maintenance intervals. Engineered, manufactured, and field-tested to ensure the application-specific demands of your vehicle. Trusted by OEMs and fleets.


This part is under warranty for twelve (12) Months/1 Year; some exceptions may apply depending on application and part. Please contact our customer service team for warranty details.


Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is one of the leading aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for todays most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.


Cross References

2719-971443, 2719971443, 5202859, 971086, 971443-AUT, 971443ETN, DS971443, ETN971443, S-23613, S23613, SP971443, ZBP0971443

Specifications

Brand Label:Spicer
Item-Level GTIN:00023913179267
Hazardous Material Code (Y/N):N
EXPI Data (Country of Origin):MX
EXPI Data (Harmonized Tariff Code (HTS)):8708990000
Item Quantity Size UOM:EA
Assy Length (Ball Ctr To Ctr):68.9
Comments:ALTERNATE BOOT SYTLE TRE3477L & TRE3476R
Cross Tube Diameter:1.66
Cross Tube Length:62
Dust Boot Included:Y
Left Tie Rod End:817018
Models:I 80, I 61, I 100, I 130,I132, I140
Prop 65:No
Right Tie Rod End:817019
Tie Rod End Style:Purge Valve
Tube Wall Thickness:0.19
Type:Straight
Description (Long Product Description):Cross Link Assembly
Description (Short Product Description):Steer Tie Rod Assy
Description (Extended Product Description):Cross Link Assembly

Features


  • Built to meet OE standards set by Dana.
  • Genuine OE quality. Tested and proven.
  • Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
  • Tested and validated to rigorous OE specifications.

Returns, Warranty & Cores

For warranty, return, or core information please reach out to customer service or visit our Policy & Procedures page located at the footer of our website.
