Dana Spicer U-Joint Strap Kit - SPL90/SPL100 - SPL90/100 Series - 90-70-28X
Details
Designed for minimal downtime and fewer maintenance intervals. Engineered, manufactured, and field-tested to ensure the application-specific demands of your vehicle. Trusted by OEMs and fleets.

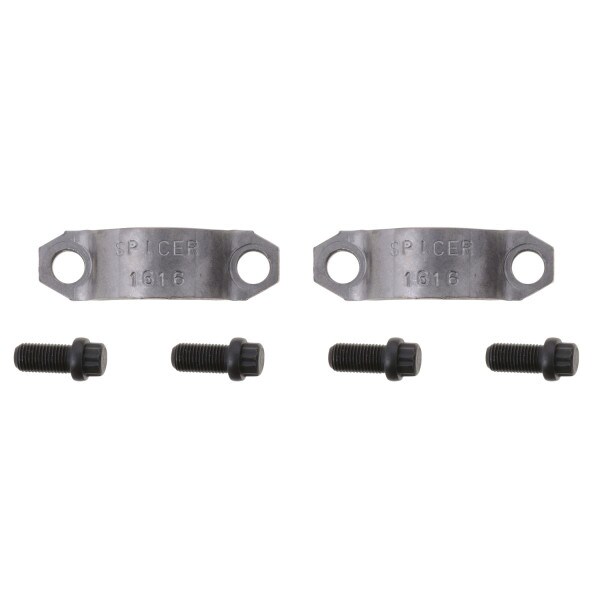

This strapkit includesFour (4) Drive Shaft Bolts, Two (2) Universal Joint Straps and is designed for SPL90/100 axle models - fits bearing cap diameter 1.625 inches. Its thread measres .375-24 and its bolt length measures .75 inches. C/L to C/L measures 2.312 inches. Bolt torque is 52.
This part is under warranty for twelve (12) Months/1 Year; some exceptions may apply depending on application and part. Please contact our customer service team for warranty details.
Whether you are driving between the lines or outside of them, you can expect the superior quality performance that comes from genuine Dana Spicer parts. When you buy genuine automotive aftermarket products including driveshaft components and axles, you will experience why Spicer is one of the leading aftermarket driveshaft component manufacturers in the industry. From the invention of the encased universal joint that eliminated sprockets and chains to the production of fully integrated propulsion systems for todays most complex powertrains, the Dana and Spicer brands remain leaders in revolutionizing power conveyance.
Cross References
1685128C91, 2104-907028X, 2104907028X, 3901338, 4.9-70-28X, 497028X, 4C4Z*4A254*CA, 4C4Z4A254CA, 752907028X, 90 70 28X, 90-70-28XR, 907028X, 907028X-SP, 907028XR, 907028XSP, 90N-70-28X, 90N7028X, D907028X, DA907028X, DO907028X, DS907028X, E907028X, FE907028X, N90-70-28X, N907028X, S-D756, SD756, SD907028X, SP907028X, SPI-90-70-28X, SPI907028X, TWD907028X, UJN907028X
Specifications
| Brand Label: | Spicer |
| Item-Level GTIN: | 00023913249090 |
| Hazardous Material Code (Y/N): | N |
| EXPI Data (Country of Origin): | US |
| EXPI Data (Harmonized Tariff Code (HTS)): | 8302303060 |
| Item Quantity Size UOM: | EA |
| Bolt Length: | 0.75 |
| Bolt Torque: | 52 |
| C/L To C/L: | 2.312 |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Fits Bearing Cap Diameter: | 1.625 |
| Prop 65: | Yes |
| Series: | SPL90/100 |
| Thread Diameter: | .375-24 |
| Type (Strap/Retainer): | Strap |
| Description (Long Product Description): | Universal Joint Strap Kit - SPL90/SPL100 |
| Description (Short Product Description): | U-Joint Strap Kit |
| Description (Extended Product Description): | Universal Joint Strap Kit - SPL90/SPL100 |
