MGM C30 S-cam Brake - 1430001

Product Description

Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

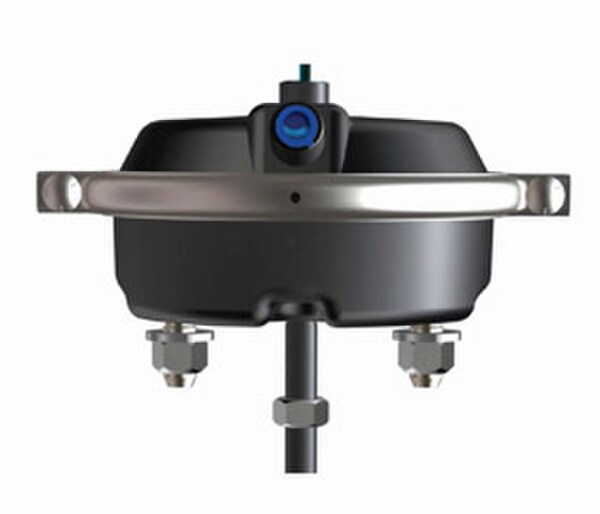

This C30 S-cam brake (drum) is designed for heavy-duty commercial vehicles. C models feature a formed steel pressure cap (epoxy-coated) and formed steel non-pressure chamber (epoxy-coated). It also features heavy-duty nylon diaphragms. Its top and side air ports measure 3/8-18 inches NPTF and it contains the added benefit of a center hole shield (except Type 12 and 16). This standard stroke C model s-cam brake chamber contains a 2.5 inch stroke; a 5/8-11 inch mounting bolt thread and a 1.55 mounting bolt length. Service size is 30. Its "A" measurement is 4.43 inches; "B" measurement is 3.69 inches; "C" measurement is 8.27 inches and "D" measurement is 4.75 inches. Its "E" measurement is 5/8-11 UNC; "F" measurement is 5/8- 18 UNF. Inlets measure at 3/8 inches - 18 NPTF and X-min measures 8 inches.

MGM's limited warranty depends on product and application. Contact us to learn more!

Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!

Features

• 2.5 inch stroke
• 5/8-11 inch mounting bolt thread
• 1.55 mounting bolt length
• Service size is 30
• "A" measurement is 4.43 inches
• "B" measurement is 3.69 inches
• "C" measurement is 8.27 inches
• "D" measurement is 4.75 inches
• "E" measurement is 5/8-11 UNC
• "F" measurement is 5/8- 18 UNF
• Inlets measure at 3/8 inches - 18 NPTF
• X-min measures 8 inches

Includes

C30 S-cam brake (drum)

Warranty

MGM's limited warranty depends on product and application. Contact us to learn more!

Cross Reference

1119496, 1430343, 1430344, 2335975, 2475298, 288814, 3000SC, 30SCN2C, 30SCND, 317232, 340450, 3512201, 37210777, 4L1167, 50866012, 5396SC30, 5554-1430001, 55541430001, 66030, 801733, 820022, 822089, 934045, A3000, ABPN42A30SCND, ACA08426, BWP-M459, BWPM459, E-30S, E393276D30, EBC30S, F3276D30, FLTS30S28, FRL 42036910, HD30S, K30011, KN36300, M-459, MBW004374, MBW288813, MGM1430001, MGMZAJ1430001, MIDSC30, NT3030ELS99, R870030, RVKN36300, SC-30, SC30, SC3000, TYPE 30, TYPE30, V133276D30, V143276D30, V303276D30, V343276D30, V363276D30, V396576D30, ZAJ1430001, ZZSC30
