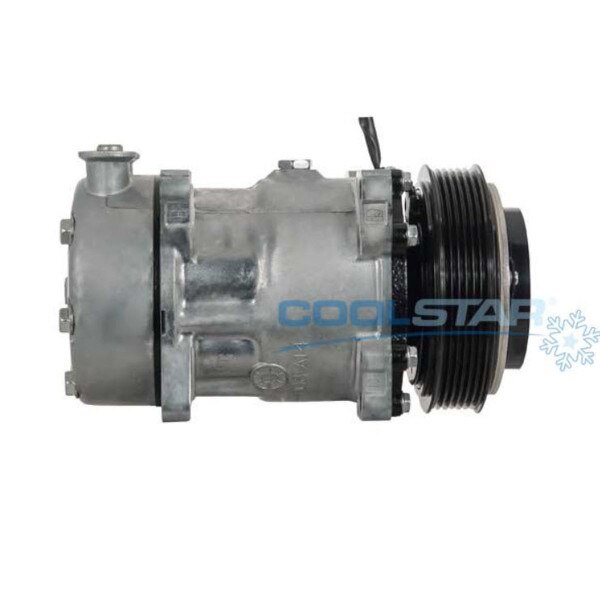

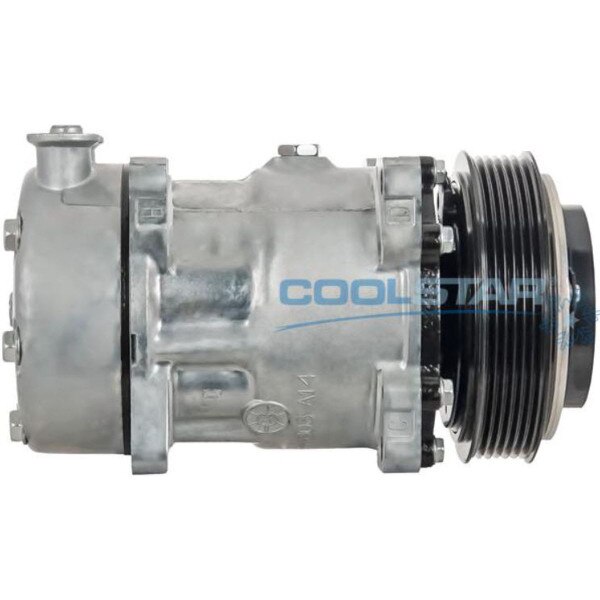

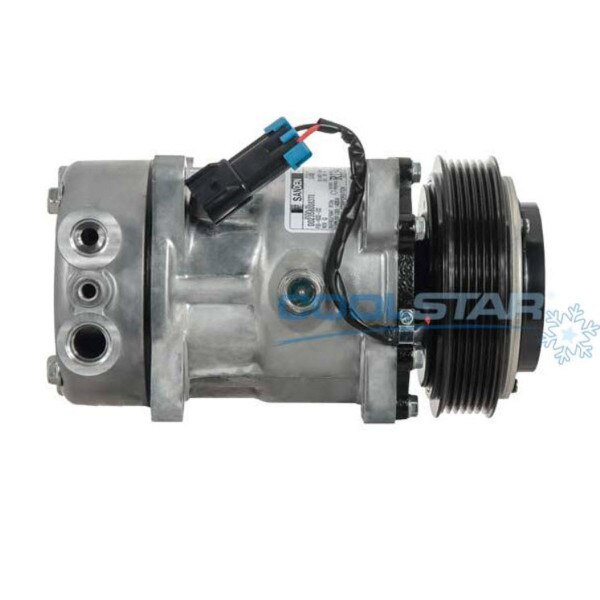

CoolStar Sanden SHD Comp OEM Grade - 330-2610
Details
*THIS PART IS NON-RETURNABLE*
Product Description
The CoolStar Sanden SHD Comp OEM Grade - 330-2610 was designed to be the ideal replacement part for your semi-truck.
This compressor from the trucking experts at CoolStar has a 125 mm clutch diameter, 6 grooves, and a 12V rating.
Warranty information may be based on the product and application. Please contact us for additional information.
CoolStar has been a trusted name in the trucking industry for an extremely long time, and the CoolStar Sanden SHD Comp OEM Grade - 330-2610 is the direct result of their dedication to quality.
Features
- OEM Number: F69-6003-222
- Make: Sanden
- Manufacturer: Sanden
- Manufacturer #: 4408
- Application: Peterbilt Trucks
- Description: Sanden SHD Comp 6 gr 125mm
- Additional Description: Super Heavy Duty - OEM
- Volts: 12V

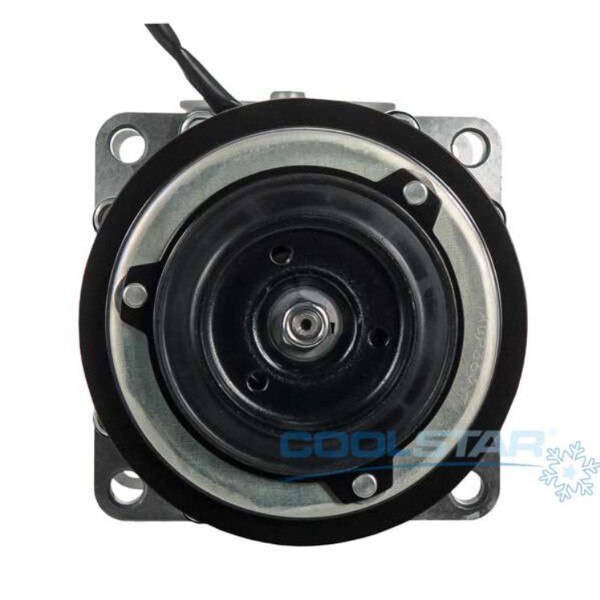

- Clutch Diameter: 125mm
- No. of Grooves: 6 groove
- Belt Type: Serpentine
- No. Comp. Cylinders: 7 cyl
- Comp. Displacement (ci): 9.5 cu.in.
- Factory Oil Charge: 300cc Oil
- Fitting Port Position: Lateral
- Fitting Style: Top O-ring Pad

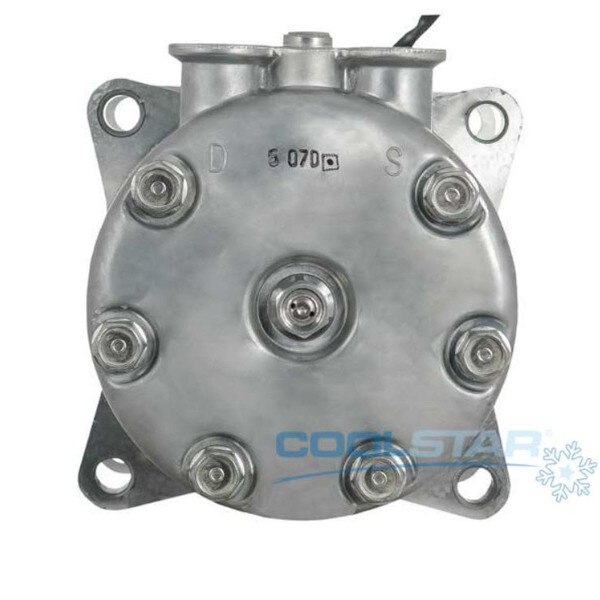

- Head Type: GSA

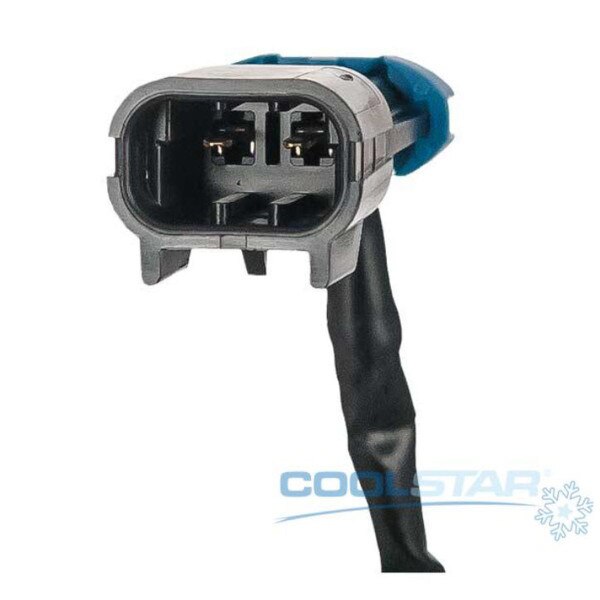

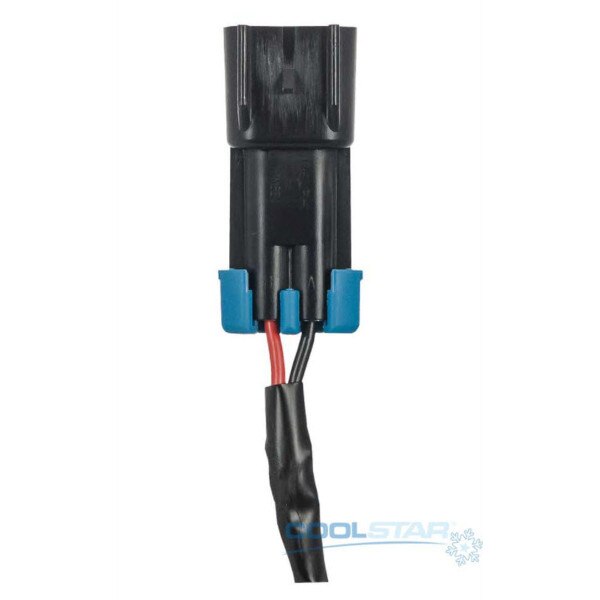

- Wire Type: 2 Wire Female Packard #15300002
- Replacement Compressor: NULL
- Replacement Clutch Assy.: 230-2660
- Replacement Head Assy: 03-6553
- Model: SD7H15-Super HD
- Oil Type: PAG100
- Product Name: A/C Compressor w/clutch
- Refrigerant Type: R134a
- Rotation: CW
- Shaft Type: Long Key Shaft
- Diode Protection: Diode/Thermal Fuse
Includes
One (1) compressor
Cross Reference
F69-6003-222
Specifications
| Brand | CoolStar |
| MPN | 330-2610 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This compressor has a 125 mm clutch diameter. |
