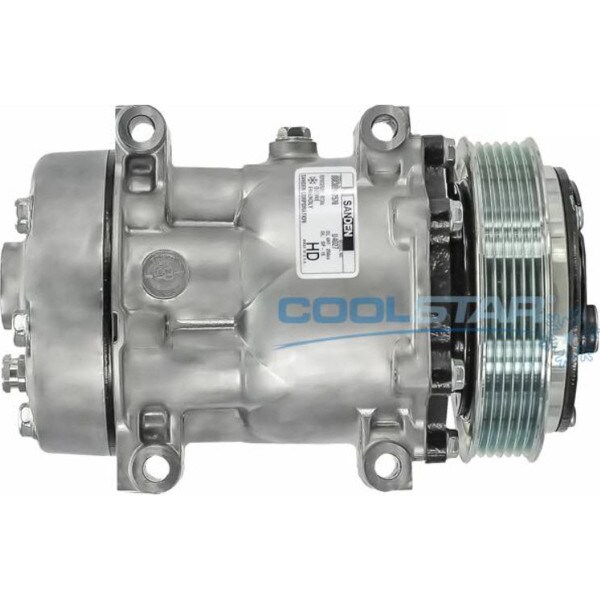

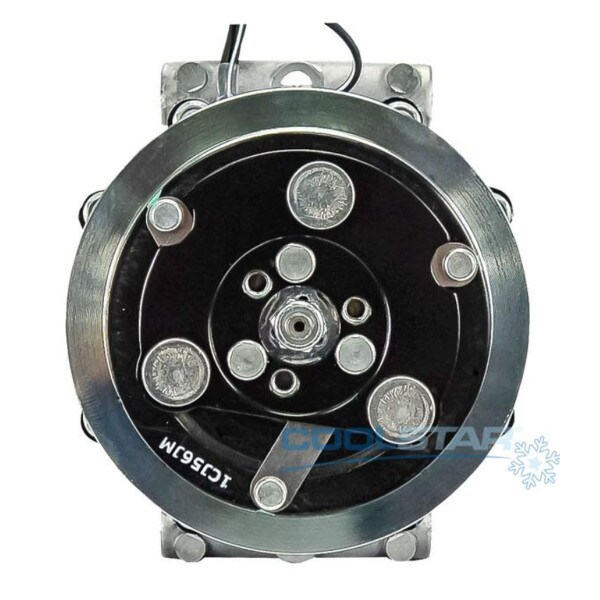

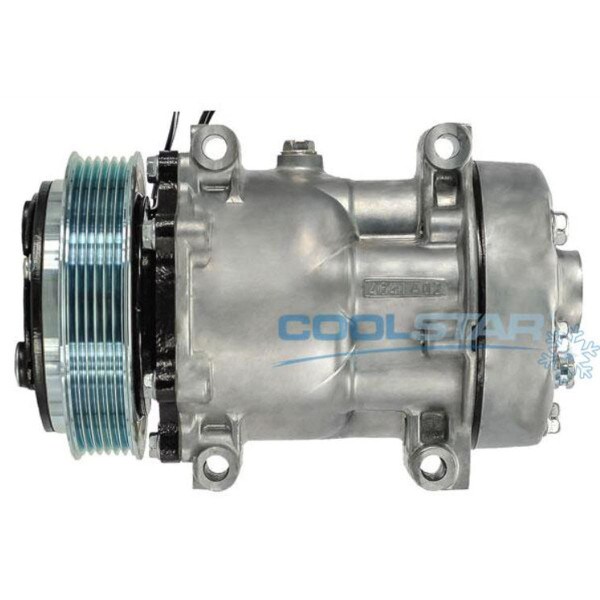

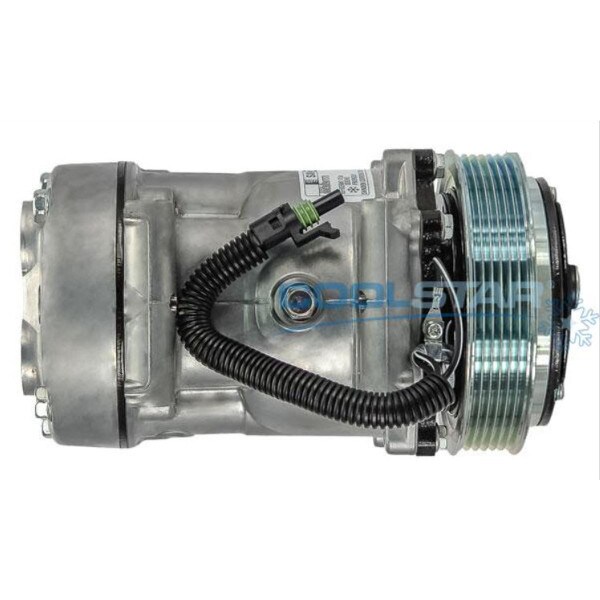

CoolStar Sanden SD7H15-HD Compressor - 330-2337
Details
*THIS PART IS NON-RETURNABLE*
Product Description
The CoolStar Sanden SD7H15-HD Compressor - 330-2337 was designed to be the ideal replacement part for your semi-truck.
This compressor from the expert specialists at CoolStar has a 12V rating, a 125 mm clutch diameter, and 7 cylinders.
Warranty information may be based on the product and application. Please contact us for additional information.
CoolStar has been a trusted name in the trucking industry for an extremely long time, and the CoolStar Sanden SD7H15-HD Compressor - 330-2337 is the direct result of their dedication to quality.
Features
- OEM Number: 4027 ; A6110059-001 ; A6110033-001
- Make: Sanden
- Manufacturer: Sanden
- Manufacturer #: 4027
- Application: Autocar Applications
- Description: Sanden STD Comp 6 gr 125mm
- Additional Description: Super HD style
- Volts: 12V
- Clutch Diameter: 125mm
- No. of Grooves: 6 groove
- Belt Type: Serpentine
- No. Comp. Cylinders: 7 cyl
- Comp. Displacement (ci): 9.5 cu.in.
- Factory Oil Charge: 250cc Oil
- Fitting Port Position: Horizontal
- Fitting Style: Rear Universal O-ring FLX-7 Pad
- Head Type: GV

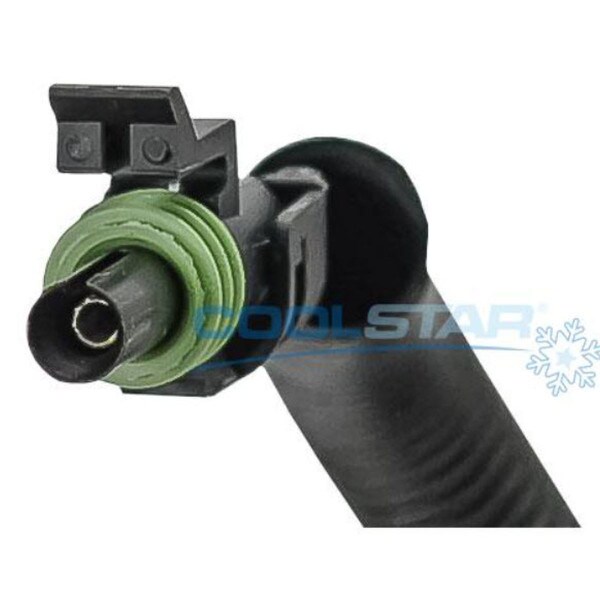

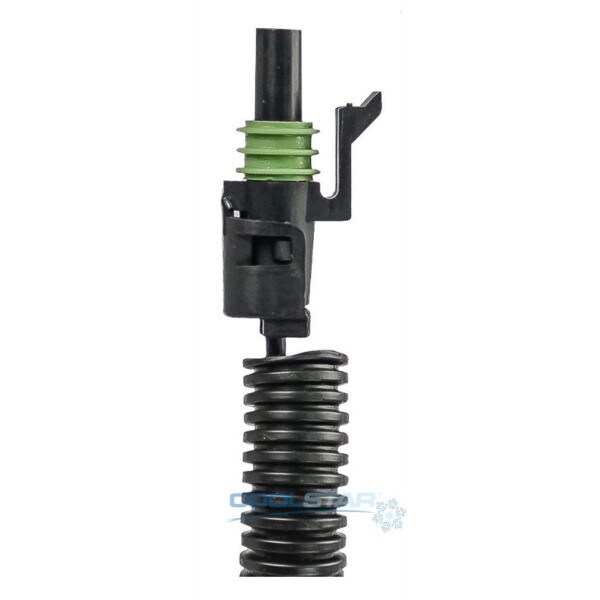

- Wire Type: 1 Wire Male Packard #12015791 W/ Diode
- Replacement Compressor: NULL
- Replacement Clutch Assy.: 230-2660
- Replacement Head Assy: 03-6554
- Model: SD7H15HD
- Oil Type: PAG100
- Product Name: A/C Compressor w/clutch
- Refrigerant Type: R134a
- Rotation: CW
- Shaft Type: Long Key Shaft
- Diode Protection: w/diode
Includes
One (1) compressor
Cross Reference
4027, A6110033-001, A6110059-001
Specifications
| Brand | CoolStar |
| MPN | 330-2337 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This compressor has a 125 mm clutch diameter. |
