Haldex Clearance Sensing Automatic Brake Slack Adjuster - 40020241

*THIS PART IS NON-RETURNABLE*

Product Description

One of the best ways to avoid wear and tear on all of your brakes, is to have a high-quality Automatic Slack Adjuster. Acting as a lever, ASAs connect the actuator or the spring brake chamber to the camshaft. This compensates for the gradual wear and tear of the brake drum and shoe lining while keeping pace with the actuator's stroke. Automatic Slack Adjusters are one of the most reliable tools in measuring potential issues with your brakes, while getting the best out of them at the same time.

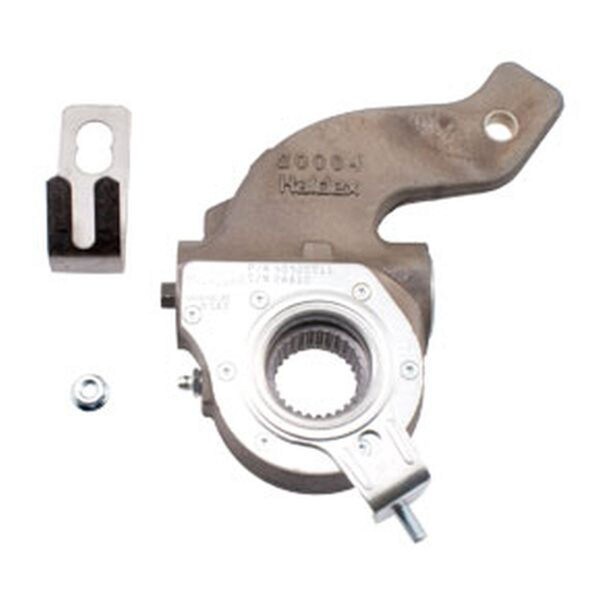

This Haldex S-ABA Clearance Sensing Automatic Slack Adjuster makes the most consistent and precise gradual adjustments for optimum lining-to-drum clearance. Clearance Sensing slack adjusters keep brakes unaffected by deflection or thermal expansion. This specific ASA has a 5.5 inch arm length, is built with 28 splines with a spline diameter of 1.5 inches. It's compatible with a body angle of 35 degrees. It's control arm also makes for flexible application coverage. All S-ABA adjusters are self-Sensing, making installation quick and easy. For Standard Steer Axel Brakes.

This product comes with a 6 year, 1 million mile warranty.

Haldex is a major provider of innovative solutions for brakes to heavy duty vehicles across the globe. Haldex aims to bring the safest and most dynamic brake parts to your truck, creating a world of safer vehicles for generations to come. For unique products to operational excellence, choose Haldex to drive your future.

Features

• 1.5 inch, 28 teeth Clearance Sensing Automatic Brake Adjuster
• Self-Sensing for quick and easy installation
• Control Arm makes for flexible application coverage
• Clearance Sensing adjustment type keeps brakes unaffected by deflection or thermal expansion
• Consistent and precise gradual adjustments make for optimum lining-to-drum clearance
• 5.5 inch Arm Length
• 35 degree Body Angle
• 6 year, 1 million mile warranty

Includes

One (1) Automatic Slack Adjuster Without Clevis

Warranty

6 year, 1 Million Mile Warranty

Cross Reference

101261, 106902, 107402, 107403, 107421, 107536, 107788, 107991, 107996, 135S2816, 3519851, 400-10008, 400-10070, 400-10081, 400-10180, 400-20227, 400-20304, 40020230, 40020241, 409-10227, 409-10407, 409-10512, 409-10814, 409-10861, 409-10870, 409-10872, 409-10890, 409-10893, 409-10894, 409-10895, 409-10949, 409-10979, 409-20011, 40920011, 5396-40020241, 539640020241, 65171, 767653321677, A1-3275-Q-1083S, A1-3275-R-1084S, A1-3275-W-1089S, A1-3275-X-1090S, A13-3275-N-768S, A16-3275-A-599S, A17-3275-A-599S, A17-3275-U-593S, A18-3275-B-600S, A18-3275-N-768S, A18-3275-U-593S, A19-3275-N-768S, A2-3275-A-1119S, A2-3275-N-768S, A2-3275-W-1089S, A2-3275-X-1090S, A2-3276-A-599S, A21-3275-A-599S, A21-3275-N-768S, A21-3275-U-593S, A23-3275-H-1152S, A23-3275-N-768S, A24-3275-N-768S, A29-3275-A-599S, A29-3275-U-593S, A33-3275-N-768S, A43-3275-Z-1144S, A44-3275-A-1145, A44-3275-A-599S, A44-3275-U-593S, A44-3275-Z-1144, A5-3275-N-716S, A56-3275-A-599S, A56-3275-U-593S, CS52347, CS52364, CS56040, CS56049, E-6945, HDX 40020241, HDX40020241, MID40020241, MK22100S, MK42100S, MK72100S, R801078, R801080, R802179, R802180, R802181, R802648, R802649, R802680, R802681, R802684, R802685, R803046, R803047, R803048, R803049, R803050, R803051, R803052, R803053, R803109, R803196, R803198, R806019, SA00202, SA00501, SA00903, SA00906, SA00908, SA01201, SA01204, SA01901, SA02203, SA02207, SA02501, SA03501, SA03601, SA04201, SA04401, SA04802, SA05501, SA05504, SA05801, SA05804, SA07002, SA07012, SA07013, SA07102, SA07202, SA07212, SA08102, SA08402, SA08902, SA08912, SA09202, SA09212, SA10202, SA10212, SA10802, SA10812, SA11102, SA11302, SAS1008, SAS1009, SAS1012, SAS1020, SAS1022, SAS1023, SAS1029, SAS1030, SAS1040, SAS1047, SAS1054, SAS1059, SAS1061, SAS1140, SAS1149, SAS1165, ZZ40020241

Specifications
