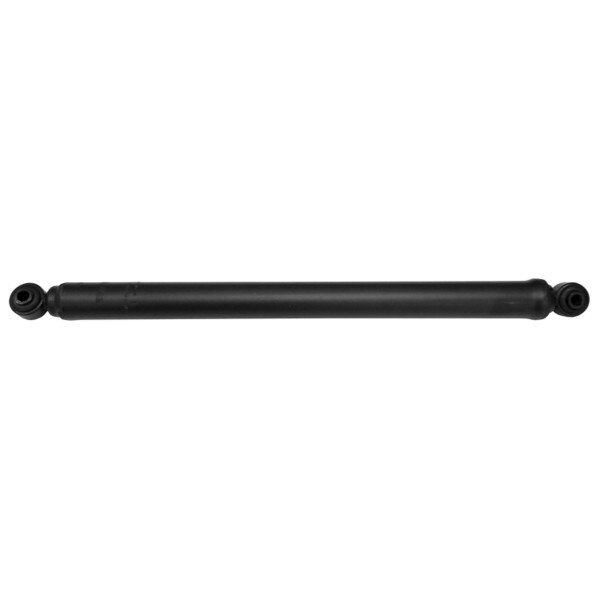

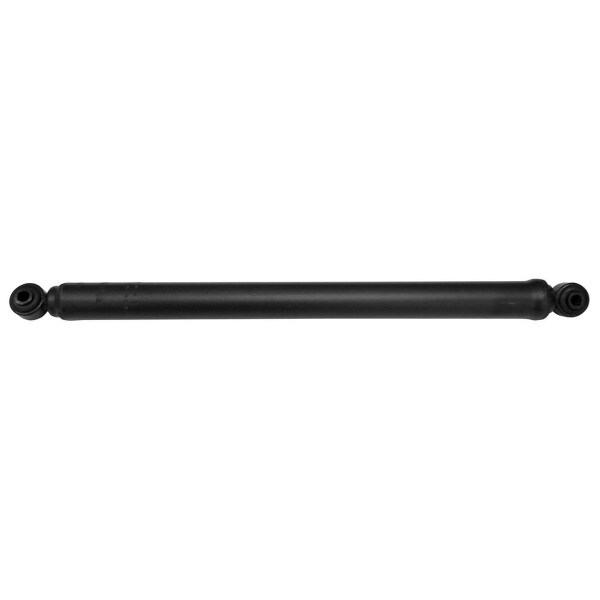

Monroe Magnum Cab Shock - 66138
Details
Shock absorbers help keep vehicles grounded and are particularly helpful in the springtime when roads appear weak from potholes created during winter. If drivers do not replace shocks, they will feel every bump, groove or road instability plus risk trucking accidents. The top three reasons for shock failure are usually because of weak weldings; cracked bushings and excessive oil
Specifications
Features
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient and consistent control (most applications)
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- Bujes con rebordes Tenneco: Bujes con rebordes y bujes adheridos con disenos de manguito que evitan la salida del buje para mejorar la calidad y la durabilidad, en la mayoria de las aplicaciones
- Cargado con gas nitrogeno: Para una mejor conduccion y manejo, ayuda a mantener el contacto de la llanta con el suelo al reducir la aireacion
- Cojinete recubierto de PTFE: Reduce la friccion durante el funcionamiento entre la barra y la guia de la barra, mejorando la durabilidad - en la mayoria de aplicaciones
- Diametro de 1-3/8 pulgadas (35 mm): Diametro mas grande que la mayoria de los amortiguadores para brindar un control mas eficiente y consistente, en la mayoria de las aplicaciones
- Robusto bloqueo hidraulico: Evita la extension excesiva de la suspension, el tope del piston y evita danos en el conjunto del reten (en la mayoria de aplicaciones)
- Tecnica de soldadura en bucle:La soldadura por resistencia con soldadura adicional de 360 ??grados proporciona hasta 12,100 libras (5488 kg) de resistencia a la traccion para una maxima durabilidad (cuando se requiera)
- Tubo de presion de .05 pulgadas que soporta una presion de 9 KPSI - En la mayoria de las aplicaciones
- Tubo de reserva de 2 pulgadas (50,8 mm): Mas fluido para un rendimiento mas uniforme - en la mayoria de las aplicaciones
- Valvula de 10 etapas: reacciona a una amplia gama de condiciones de conduccion, en la mayoria de las aplicaciones
- Vastago de piston de 5/8'' (16 mm) de diametro: Diseno nitrocarburado ecologico, mantiene los beneficios del cromo, sin afectar la durabilidad. El uso de hierro sinterizado permite dimensiones de piston precisas para un ajuste excepcional
