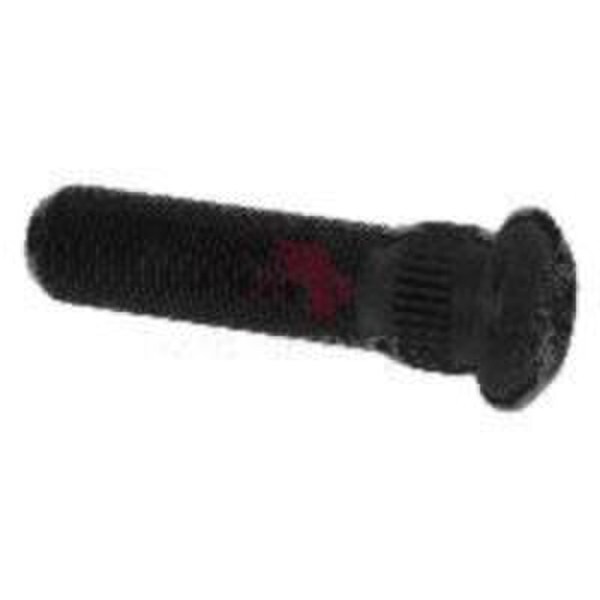

Meritor Wheel Stud M22 X 3.55 LG - 101164 - R006036 -

SKU 101164
(0) No Reviews yet


Product Description

Made for use with the R005991 nut, the Meritor Wheel Stud - R006036 is the perfect metric stud replacement part for your heavy-duty vehicle.

This Wheel Stud from Meritor has a 22.0mm thread diameter, a .72 in. body length, and a grade of 10.9.

Warranty information will be based on the product and application. Please contact us for additional information.

For a great way to make sure your truck has the parts it needs to run smoothly, turn to Meritor.


  • Body Diameter is 0.977 in.
  • Thread is M22 x 1.5
  • Type is Headed
  • Length from Under Head is 3.5 in.
  • Head Style is Round
  • Metric Thread Size is M22 X 1.5-6g
  • Body Length is 0.72 in.
  • Grade is 10.9
  • Threads per Inch is 1.5 per mm
  • Thread Length is 2.19 in.
  • Serration Length is 0.41 in.
  • Thread Diameter is 22.0 mm
  • OEM is Webb 101164
  • Head Thickness is 0.36 in.
  • Serration Diameter is 1.015 in.
  • VMRS Code is 018-003-009
  • Single Ended
  • Head Diameter is 1.31 in.
  • Wheel End Thread Direction is RH


One wheel stud


1 Year

Cross Reference

131570, 15428001, 2R006036, 3918469, 61002841, 610028410, B5M3215, BA131570, BC131570, DLR006036, DP131570, E6036, ECE6036, EE6036, EU6036, EUE6036, EUEE6036, GHE6036, LEW544, LTW544, M3215, MSE6036, R006036, W2101164, WD15428001, WS6036, WW101164, Webb 101164


UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each

Designed for use with the R005991 nut.
