  • Meritor Wheel Stud, Pack(10EA) - 101160 - R006034

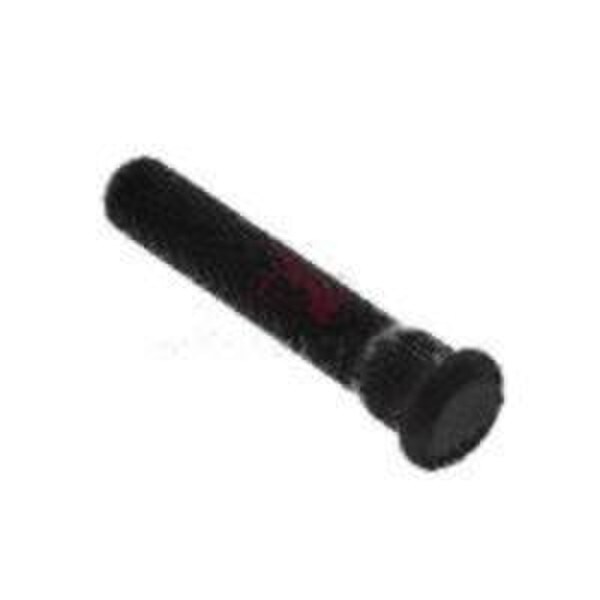

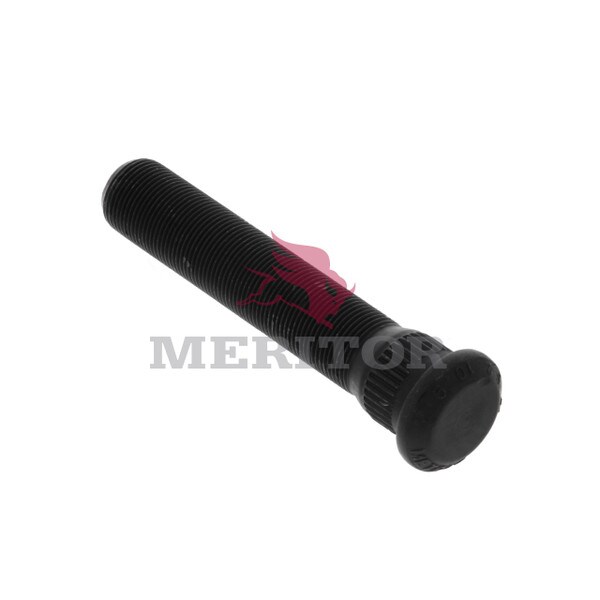

Meritor Wheel Stud, Pack(10EA) - 101160 - R006034

Back

Details

Designed for use with the R005991 nut, the Meritor Wheel Stud - R006034 is the perfect metric stud for your heavy-duty vehicle. Made using long lasting and reliable materials, the Meritor Wheel Stud - R006034 will provide you with the longevity you've been looking for.


This from has a 22.0mm thread diameter, a .72 in. body length, and a grade of 10.9.


Warranty information will be based on the product and application. Please for additional information.


Meritor has been at the forefront of the trcuking industry for many years and the Meritor Wheel Stud - R006034 is the result of their time and dedication to making sure truck drivers have the best possible replacement parts for their vehicles. For a great way to make sure your truck has the parts it needs to run smoothly, turn to Meritor.


Back

Cross References

101199, 131564, 131572, 15428003, 2016156, 2016157, 2R006034, 61000921, 610009210, 77W546, 8071941, B5M3217, BA131572, DLR006034, DN131572, DP131559, DP131572, E6034, ECE6034, EI6034, EIE6034, EU6034, EUE6034, FDW546, FRW546, GHE6034, LEW546, LTW546, M3217, R006034, RIR006034, S23864, W1270, W1325, W2101160, WD15428003, WS6034, Webb 101160

Back

Specifications

BrandMeritor
SupersedesR006034
MPNR006034
Width4.45
VMRS018-003-009
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height4.35
Benefits

Designed for use with the R005991 nut.


Features

  • Body Diameter is 0.977 in.
  • Length from Under Head is 4 25/32 in.
  • Type is Headed
  • Head Style is Round
  • Is Serrated
  • Metric Thread Size is M22 X 1.5-6g
  • Thread is M22 x 1.5
  • Body Length is 0.72 in.
  • Grade is 10.9
  • Threads per Inch is 1.5 per mm
  • For use with R005991 nut
  • Thread Length is 3.47 in.
  • Serration Length is 0.41 in.
  • Thread Diameter is 22.0 mm
  • OEM is Webb 101160
  • Head Thickness is 0.36 in.
  • Serration Diameter is 1.015 in.
  • VMRS Code is 018-003-009
  • Single Ended
  • Head Diameter is 1.31 in.
  • Wheel End Thread Direction is RH

Includes

One wheel stud


Warranty

1 Year
