WABCO 12V SS 1200+ Air Dryer - 4006110580 - 400 611 058 0

SKU 4006110580
$377.30
(0)No Reviews yet

Details

Product Description

Air dryers protect air systems in heavy-duty vehicles that require clean air to properly operate. Not only does the air dryer work to remove contaminants like water and vapor before they reach the air brake system, but the truck part helps reduce the chance of premature failure in other systems. Air dryers may fail due to leaks, clogs or worn electrical issues. It is important to replace the air dryer cartridge‚ during routine maintenance on air brake systems.

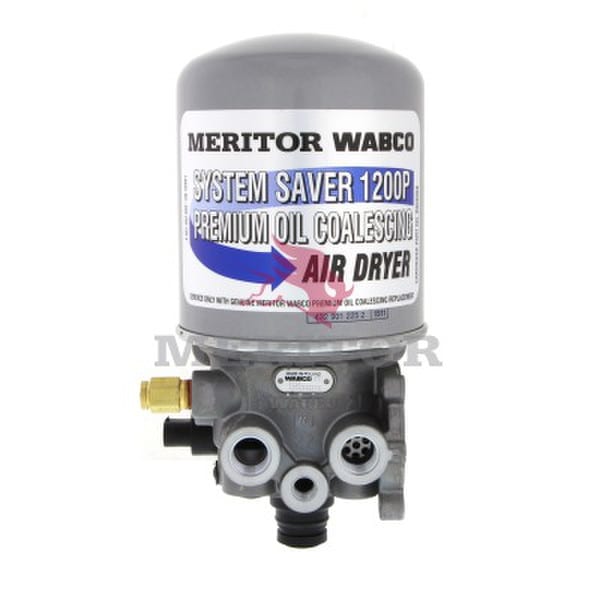

This WABCO SS1200+ air dryer is for heavy-duty vehicles. This part replaces obsolete Meritor part number R955079. The coalescing SS1200P air dryer from WABCO features 12 volts, DC, 100 watts and a 1/4 inch control port; 1/2 inch supply port; 1/2 inch delivery port and a 1/3 inch purge tank port. It also has a turbo cut-off valve and includes complete air dryer assembly, mounting hardware, and heater harness.

Product warranty is as follows: 1-3 years depending on the product type and application. Call for more information!

For over 150 years, WABCO has been a known leader in reliable braking control systems and advance driving technologies. WABCO is best known for OnLaneAssist; OnSide Blind Spot Detection; and OnGuard safety system ABS products. When in need of quality ABS and ADAS products, turn to WABCO!


Features

  • Replaces obsolete Meritor part number R955079
  • Features 12 volts DC
  • 100 watts
  • 1/4 inch control port
  • 1/2 inch supply port
  • 1/2 inch delivery port
  • 1/3 inch purge tank port
  • Turbo cut-off valve
  • Includes complete air dryer assembly, mounting hardware, and heater harness

Includes

One (1) WABCO SS1200+ air dryer


Warranty

1-3 years depending on the product type and application. Call for more information!


Cross Reference

400 611 058 0, 4006110620, 432 421 037 0, 432 421 048 0, 432-421-037-0, 4324210480, 6300-4006110620, 650-R955079, 815-4006110580, 8235-R955079NX, 85143302, 955300CX, R955079, R955079NX, R955079X, R955082, S432 421 037 0, S432 421 048 0, S432-421-037-0, S4324210330, S4324210330X, S4324210337, S4324210480, S4324210487, WAB4006110580, WAB4006110620, WN4006110580


Specifications

Volume14.836
OE ManufacturerMeritor WABCO
Manufacturer Number7647
Width7455
Height5316
Series7631
Length5974
Brandwabco
SupersedesR955079
Component TypeSS 1200+
Voltage12V
MPN4006110580
UPC680502914649
ColorGrey
Width9.5 in.
VMRS013-010-252
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Type / StyleReplacement Kits
Height7.5 in.
Global Trade Number00680502914649
Benefits

This WABCO SS1200+ air dryer is for heavy-duty vehicles. This part replaces obsolete Meritor part number R955079. The coalescing SS1200P air dryer from WABCO features 12 volts, DC, 100 watts and a 1/4 inch control port; 1/2 inch supply port; 1/2 inch delivery port and a 1/3 inch purge tank port. It also has a turbo cut-off valve and includes complete air dryer assembly, mounting hardware, and heater harness.
