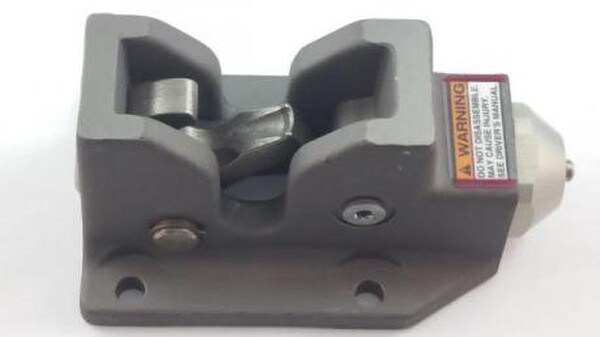

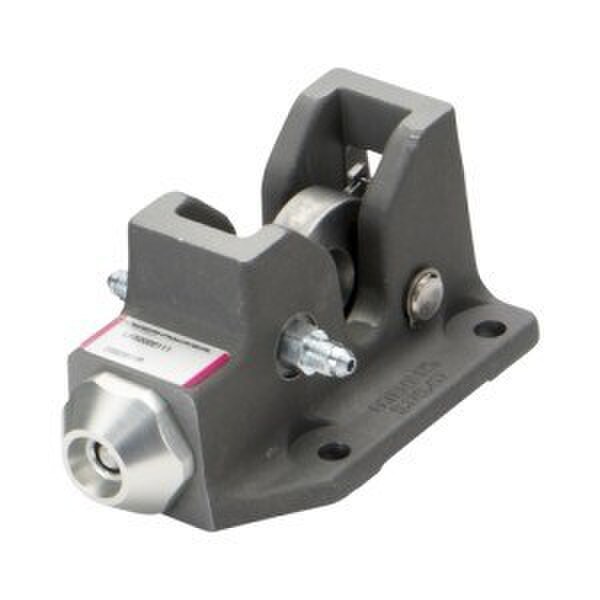

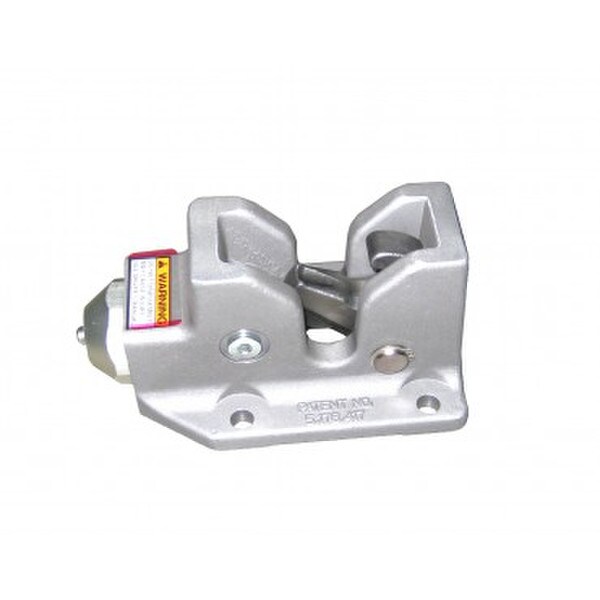

CAB LATCH HYDRAULIC - A6620046-001

Product Description

This part is oversized and can NOT be shipped overnight air.

The Autocar Hydraulic Latch A6620046-001 secures covers and cabs for safe travel and is ideal for new and existing fire and rescue applications. This Latch from Autocar has a compact size, incredible strength, and has versatile mounting capability that easily meets single or multiple latch needs. Our unique, patented design includes a latch indicator with options such as an indicator light or transmission lock that indicates when the latch has engaged or released. Pin reaction indicates the latch has engaged mechanically and extension of the pin indicates the latch has disengaged hydraulically. For a great way to make sure you are using the best possible parts in your semi-truck, choose the Autocar Hydraulic Latch A6620046-001.

Features

• SAE #4 straight threads on both hydraulic ports
• Furnished with upper catch bracket
• Engages mechanically
• Releases hydraulically at 300 psi (20.7 Bar)
• Can be used with or without suspension device
• Indicator pin is retracted when latch is engaged
• Maximum vertical pull load – 10,000 lbs (4536 kg)
• Maximum hydraulic pressure – 5,000 psi (345 Bar)
• Operating pressure to open latch – 200-300 psi (13.8-20.7 Bar)
• Recommended Fluid – MIL-H-5606 or equivalent
• Recommended operating temperature range – (-30°F to 130°F or -34°C to 54°C)
• Corrosion-resistance – 200 hours per B117
• Weight with catch bracket – 6.5 lbs (2.95 kg)
• Visual Indicator Pin – Standard
• Electric indicator switch – Optional
• Compact size
• Versatile Mounting



Specifications

Brand	Autocar
Color	Grey
UOM Quantity (Per Unit of Measure)	1
Unit of Measure (case, ea, drum, etc.)	each
Type / Style	Latch
Benefits	Genuine Autocar hydraulic latch with standard visual indicator pin and optional electric indicator. Comes in compact size for versatile mounting and corrosion resistant coating.
