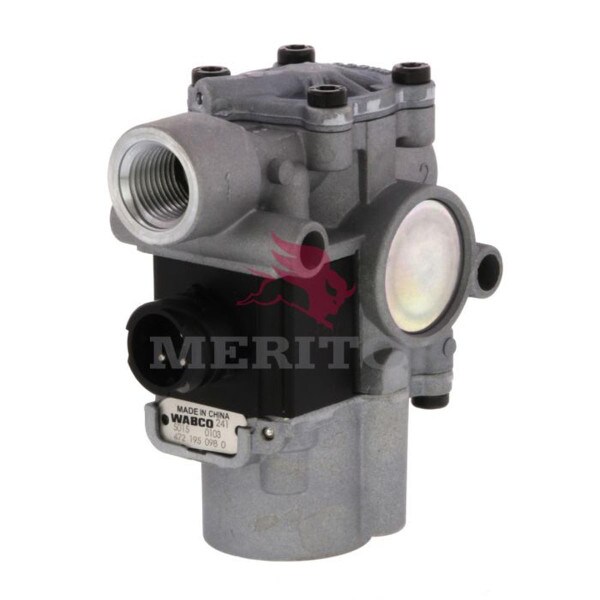

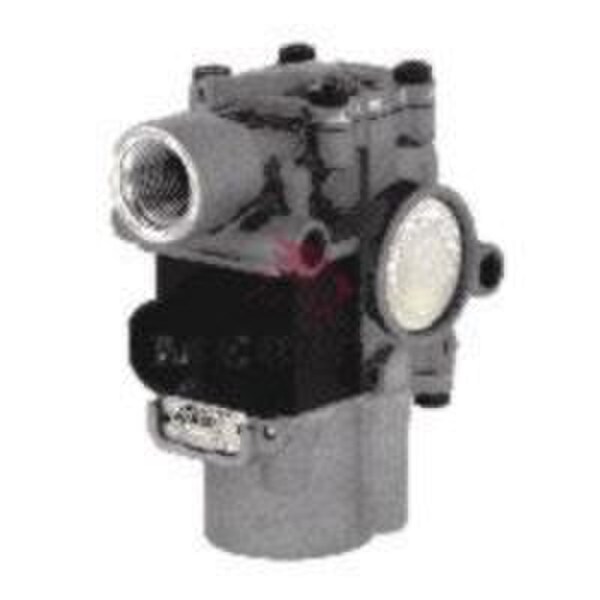

WABCO Tractor Abs Mod Valve - 4721950980 - 472 195 098 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

This ABS solenoid modulator valve for tractors contains a Bayonet DIN 72 585 A1-3.1-Sn/K1 electrical connection and integrated silencer exhaust. The 12 volt unit has a max operating pressure of 11 bar and a rated current of 2220 mA. It has a IP 68 / IP 69K protection class; a caluclated volume of .75 and a temperature range of -40°C to +80°C. Port thread measurements for 1 and 2 are 1/2 inch and distance between holes is 71 x 20 millimeters.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.

Features

This ABS solenoid modulator valve for tractors contains a Bayonet DIN 72 585 A1-3.1-Sn/K1 electrical connection and integrated silencer exhaust. The 12 volt unit has a max operating pressure of 11 bar and a rated current of 2220 mA. It has a IP 68 / IP 69K protection class; a caluclated volume of .75 and a temperature range of -40°C to +80°C. Port thread measurements for 1 and 2 are 1/2 inch and distance between holes is 71 x 20 millimeters.

Includes

One Relay Valve Kit

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

20851002, 4006110400, 4721950529, 4721950770, 4721950780, 4721950790, 4721950940, 4721950950, 6300-4721950770, 6300-4721950780, 6300-4721950790, 6300-4721950940, 6300-4721950950, 6300-4721950980, 8235-S4721950770, 8235-S4721950780, 8235-S4721950790, 8235-S4721950940, 8235-S4721950950, R955354, S472-195-077-0, S472-195-078-0, S472-195-079-0, S472-195-094-0, S472-195-095-0, S4721950770, S4721950780, S4721950790, S4721950940, S4721950950, S4721950980, TDAS4721950770, TDAS4721950780, TDAS4721950790, TDAS4721950940, TDAS4721950950, WAB4721950770, WAB4721950780, WAB4721950790, WAB4721950940, WAB4721950950, WAB4721950980, WO4721950770, WO4721950950, ZN304016, ZN304018
