WABCO 3/2 Closed 12V Solenoid Valve - 4721700020 - 472 170 002 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles. It's important to pay attention to the warningsigns of a failing ABS module including if the ABS warning light is illuminated; brake pedals become unresponsive or require more effort to engage and the speedometer fails. Driving with bad ABS is never recommended and should be promptlyrepaired after pre-trip inspections.

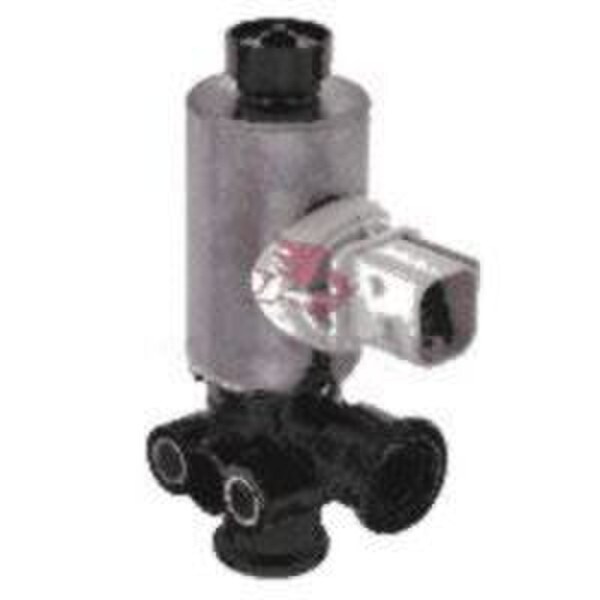

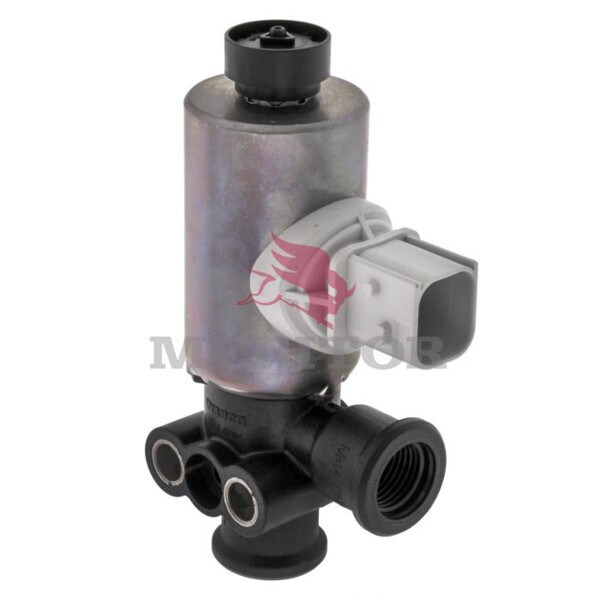

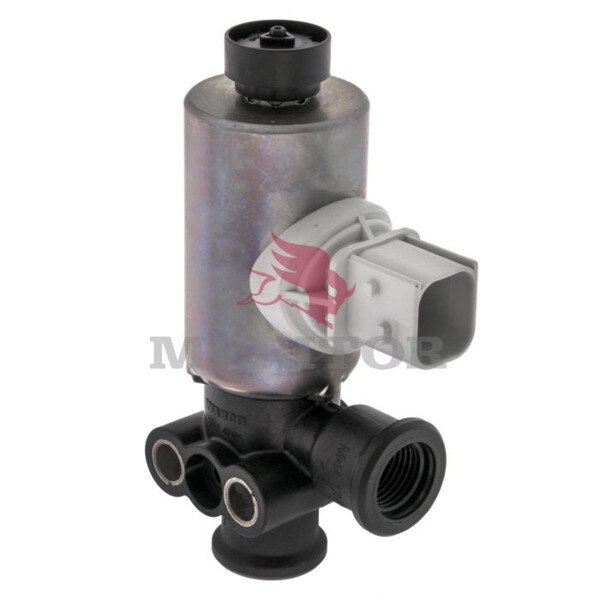

This 3/2 solenoid valve is normally closed and contains a TYCO HDSCS Cod. A C-114-18739-1 electrical connection and a 4.0 millimeter exhaust. Its maximum operating pressure is 10.2 bar with a multi-nominal doameter of 4 millimeters a rated current of 1410 mA. Port thread measurements for 1 and 2 are both V16 x 1.5 JED-388. This 12 volt unit has a calculated volume of 0.3388; a IP 6K6K / IP 6K9K protection class and a temperature range of -40°C to +80°C.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO has been aglobal supplier of commercial vehicle technologies to maintain safer uptime in a greener environment. Best known for advanced driver assistance system (ADAS)productsOnLaneASSIST®, OnSide®, andOnGuard®‚, WABCO continues to impress customers by upholding their mission: To create "a safer environment for all road users and providing ever-more productive fleet applications."

Features

• Normally closed
• TYCO HDSCS Cod. A C-114-18739-1 electrical connection
• 4.0 millimeter exhaust
• Maximum operating pressure is 10.2 bar
• Multi-nominal doameter of 4 millimeters
• Rated current of 1410 mA
• Port thread measurements for 1 and 2 are both V16 x 1.5 JED-388
• 12 volts
• Calculated volume of 0.3388
• IP 6K6K / IP 6K9K protection class
• Temperature range of -40°C to +80°C

Includes

One 3/2 solenoid valve

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

6300-4721700020, A0009974612, S4721700020, TDAS4721700020, WAB4721700020, WO4721700020
