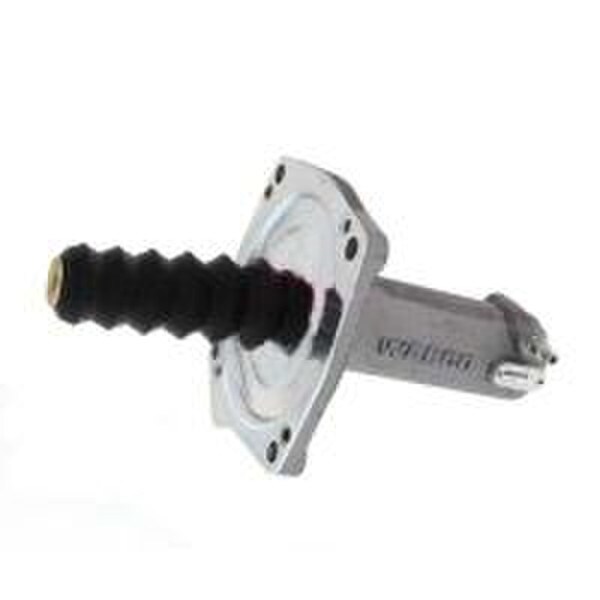

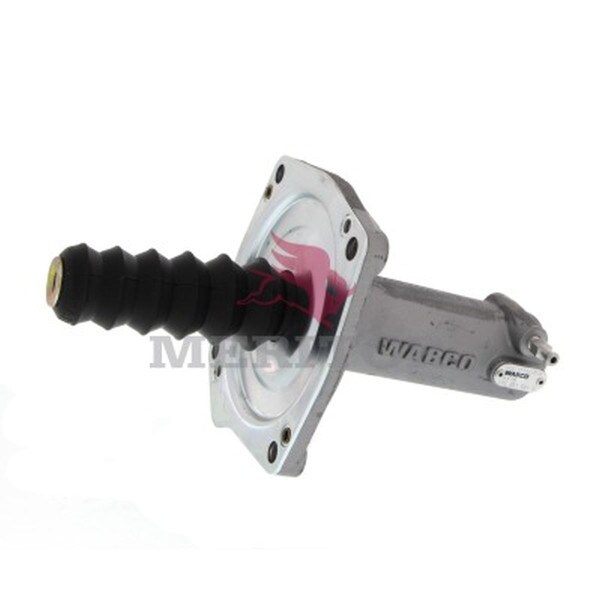

WABCO Clutch Servo Secondary Cylinder - 9700515030 - 970 051 503 0
Details
ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.
This slave cylinder has a max operating pressure of 100 bar and an oil inlet that meets SAE J 1703 brake fluid standards. It also has 4x 9.0 mm mounting and a stroke that is 53.3 millimeters. It has a Ball R6 push rod thread and port thread 32 is sized at M7 x 1. Lastly, it has a 3.744 calculated volume and a temperature range of -40°C to +80°C.
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.
Cross References
6300-9700515030, 8235-S9700515030, S970-051-503-0, S9700515030, TDAS9700515030, WAB9700515030
Specifications
| Volume | 3.744 |
| Operating Temperature Range | -40 to + 185° F |
| Port Size | 12033 |
| Brand | wabco |
| Supersedes | S9700515030 |
| MPN | 9700515030 |
| UPC | 680502215333 |
| Color | Grey |
| Width | 5.1 in. |
| VMRS | 023-004-001 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Type / Style | Slave Cylinder |
| Height | 5.65 in. |
| Global Trade Number | 00680502215333 |
| Benefits | This slave cylinder has a max operating pressure of 100 bar and an oil inlet that meets SAE J 1703 brake fluid standards. It also has 4x 9.0 mm mounting and a stroke that is 53.3 millimeters. It has a Ball R6 push rod thread and port thread 32 is sized at M7 x 1. Lastly, it has a 3.744 calculated volume and a temperature range of -40°C to +80°C. |
Features
- Max operating pressure of 100 bar
- Oil inlet that meets SAE J 1703 brake fluid standards
- 4x 9.0 mm mounting
- Stroke that is 53.3 millimeters
- Push rod thread is Ball R6
- Port thread 32 is sized at M7 x 1
- 3.744 calculated volume
- Temperature range of -40°C to +80°C
Includes
One slave cylinder
Warranty
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
