Wabco SS 1800P Air Dryer W/ Cut-Off Valve - 432 413 062 0
Details
ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.
This SS1800P air dryer with desiccant cartridge contains a turbo cut-off valve with a cut-out pressure of 7.9 to 9 bar. It has a JED-463-0 exhaust; a 280 METRI-PACK NR.1202 0599 heating connection and an operating pressure of 9 bar. The 12 volt unit's opening pressure is 12.8 bar and it has a temperature range of -40°C to +80°C. Port thread 21 measures at 1/2 inch while port 22 and 4/23 are 1/4 inch. Port 3 is JED-463-0.
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.
Cross References
6300-4324130620, 8235-R955313, S4324130620, 10017339, WAB4324130620, TDA-R955313, R955313
Specifications
| Operating Temperature Range | -40 to + 185° F |
| OE Manufacturer | Meritor WABCO |
| Port Size | 12045 |
| Crack Pressure | 12019 |
| Manufacturer Number | 7652 |
| Width | 5949 |
| Height | 5948 |
| Series | 7608 |
| Length | 5950 |
| Brand | wabco |
| Supersedes | R955313 |
| Component Type | SS 1800P |
| Voltage | 12V DC |
| MPN | 4324130620 |
| UPC | 680502121658 |
| Color | Black |
| Width | 11.75 in. |
| VMRS | 013-010-252 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 9.25 in. |
| Benefits | This SS1800P air dryer with desiccant cartridge contains a turbo cut-off valve with a cut-out pressure of 7.9 to 9 bar. It has a JED-463-0 exhaust; a 280 METRI-PACK NR.1202 0599 heating connection and an operating pressure of 9 bar. The 12 volt unit's opening pressure is 12.8 bar and it has a temperature range of -40°C to +80°C. Port thread 21 measures at 1/2 inch while port 22 and 4/23 are 1/4 inch. Port 3 is JED-463-0. |
Features
- Contains a turbo cut-off valve
- Cut-out pressure of 7.9 to 9 bar
- JED-463-0 exhaust
- 280 METRI-PACK NR.1202 0599 heating connection
- Operating pressure of 9 bar
- 12 volt
- Opening pressure is 12.8 bar
- Temperature range of -40°C to +80°C
- Port thread 21 measures at 1/2 inch while port 22 and 4/23 are 1/4 inch. Port 3 is JED-463-0
Includes

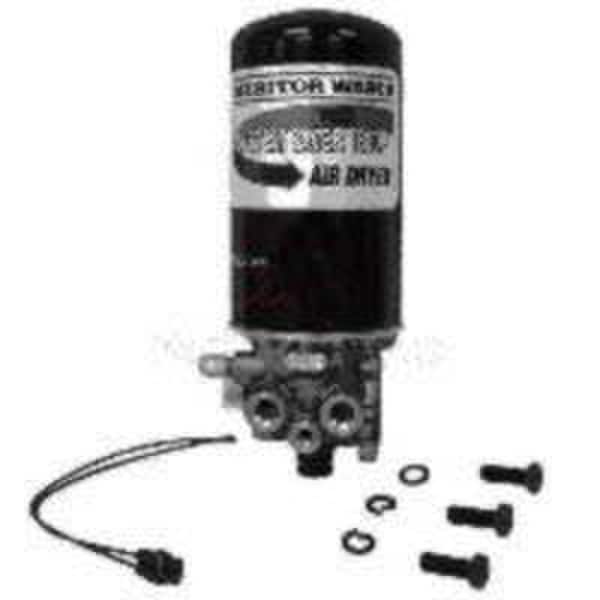

One 1800P air dryer with harness, washer and bolts
Warranty
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
