WABCO Standard 12V SS 1200 Air Dryer - 4006110500 - 400 611 050 0

Product Description

Whether you need to replace your truck's complete air dryer unit, a valve or just a cartridge, WABCO has the suspension part you need for your commercial vehicle.

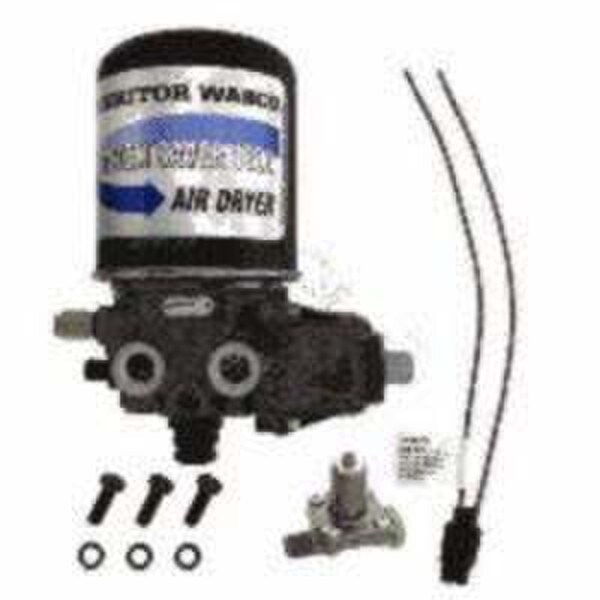

This System Saver 1200, 12 volt is for use in standard air brake applications on trucks, tractors, and buses. This air dryer features regeneration valve that helps to extend cartridge life. It contains a spin-on desiccant cartridge and offers 100 watt, 12 volt DC heater element. It has an operating temperature range of -40F to 175F and a thermostat range (on-temp) of -45F and (off-temp) of -86F. Its discharge line measures 1/2 inch ID minimum and is a sufficient length to keep temperature at dryer inlet below 175F. Minimum govenor cut-off pressure is 115 PSI while its max pressure is 140 PSI. This unit replaces obsolete Meritor part R955205.

Product warranty is as follows: 1-3 years depending on the product type and application. Call for more information!

For over 150 years, WABCO has been a known leader in reliable braking control systems and advance driving technologies. WABCO is best known for OnLaneAssist; OnSide Blind Spot Detection; and OnGuard safety system ABS products. When in need of quality ABS and ADAS products, turn to WABCO!

Features

• Spin-on desiccant cartridge
• 100 watt, 12 volt DC heater element
• Operating temperature range of -40F to 175F
• Thermostat range (on-temp) of -45F and (off-temp) of -86F
• Discharge line measures 1/2 inch ID minimum
• Minimum govenor cut-off pressure is 115 PSI
• 140 PSI
• Replaces obsolete Meritor part R955205

Includes

System Saver 1200, 12 volt

Warranty

1-3 years depending on the product type and application. Call for more information!

Cross Reference

065041, 065041X, 065111, 065133, 065141, 065152XX, 065225, 065225BXW, 065225N, 065225P, 065225PG, 065226, 065226BXR, 065226BXW, 103388, 103389, 103960, 104249, 104250, 104257, 104320, 104326, 104377, 104420, 104438, 104443, 104550, 104734, 106254, 106365, 106386, 106445, 106446, 106447, 106449, 106455, 106470, 106483, 106484, 106485, 106691, 106692, 106694, 106695, 106696, 106697, 106699, 106700, 106701, 106702, 106703, 106704, 106705, 106706, 106707, 106708, 106709, 106712, 106713, 106714, 106715, 106716, 106736, 106737, 106739, 106743, 106744, 106750, 106760, 106775, 106779, 106829, 106919, 106949, 106986, 107725, 107874, 107876, 107949, 107953, 107955, 107959, 107961, 107963, 108024, 108069, 108167, 108196, 108243, 108245, 108287, 108304, 108314, 108364, 108433, 108469, 108502, 108635, 108929, 109092, 109100, 109192, 109223, 1093793, 1093794, 109396, 109495, 109495P, 109685, 109685B1, 109685BXR, 109685P, 109685PG, 109685PGX, 109685X, 109685X-BW, 109685XBW, 109689, 109727, 109728, 109729, 110112R, 1310721, 14347, 14371, 1539089, 15518195, 15535322, 15543837, 15613646, 1608371, 1620405C91, 1620677C91, 1621397C91, 1621964C91, 1673737C91, 1673827C91, 1676683C91, 170.065225, 170.109495, 170.955205, 170.9553, 170065225, 170109495, 17010949500, 170955205, 170955300, 1709555300, 2072029, 23880305, 26QE357, 26QE357P2, 26QE357P3, 26QE357P4, 26QE357P5, 26QE357P6, 26QE377, 26QE377P5, 2FS82, 3500516, 3915282, 400 611 050 0, 432 413 001 0, 4324130010, 4324130019, 448301090A, 5000765, 5002063X, 5003897, 5006791, 5009378, 5013547, 5017281, 5152XX, 61170150, 650-R955205, 65041, 65111, 65133, 65141, 65152, 65224, 65225, 65225P, 65226, 65478, 65650, 670-S20738, 6814310115, 6814310315, 6814310615, 713010016, 713010061, 745-065225, 745-109685X, 745-X109685, 745109685X, 745X109685, 800202, 801845, 8023177, 815-4006110500, 8235-SRWABK118, 8235R955205, 8235R955205NX, 85122942, 90009361, 917352, 955205, 955205M1D, 955205P, 955205RX, 955205X, 955300X, AD2001, APL-100011, APL-100220, APL100011, AT955205K, AT955205KTEC, AT955300, AV065225, AV109495, AV109685, AV65225, AV955205, AVR955205, BAN065225, BBH-065041, BBH-065225, BBH-109685, BBH-109685R, BBH065041, BBH065225, BBH109685, BBH109685R, BEN109495, BERR955205, BHS-13728, BHS-F345, BHS13728, BHSF345, BND065225, BW065225, BW109495, BW109685X, BWAD9, BWR109685, BX065041X, BX065225, BX109495, BX109685, BX109685B1, BX109685X, BXK065133, D6336, DA33100, E-BN065225X, E-BN109495N, E-BN109685HX, E-BN109685X, E4HS2A131BA, E4HS2A131CA, EBN065225X, EBN109495N, EBN109685HX, EBN109685X, F6HT2B912BB, FLTAD5225, FLTAD9685, GTA-955205K, GTA955205K, H109685X, K065225, K065225RO, K109495, K109685, K109685RO, LAD-5586, M-65225, M65225, MERS4008507010, ML955205, MSBW109495, N109495, OTR-OTR065225, OTR065225, OTR109495, OTR109685, OTR955205, OTR955300, P0065225, PBC-AV065225, R-955205, R109685, R955005, R955065225, R955065225X, R955109685HX, R955109685X, R955109685XCF, R955109689X, R955205, R955205-RI, R955205X, R955300, R955300X, ROR955205, RW-R955205, RWABK118, RWR955205, S-13728, S-20738, S-E854, S-F345, S13728, S20738, S4008507010, S4324130010, SE854, SF345, SRWABK118, SRWABK118NX, TDA R955205, TDAR955205, TDASRWABK118, TR955205, V1113547, WAB4006110500, WAP22-007, WAP22007, WN4006110500
