WABCO Charging Valve - 4341003100 - 434 100 310 0
Details
Product Description
ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

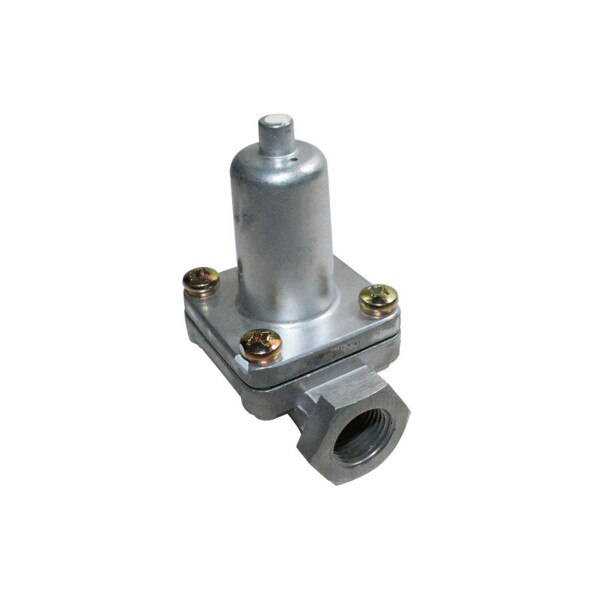

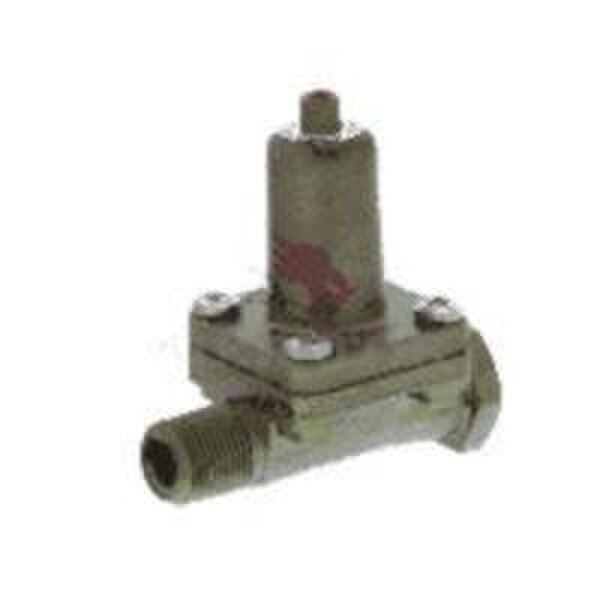

This charging valve with return flow is designed for air dryers. It contains a 8.2 bar charging pressure and a nominal diameter of 8.0 millimeters. It has 1/2 inch female and male port thread measurements; a calculated volume of .49735 and a temperature range of -40°C to +80°C.
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.
Features
- 8.2 bar charging pressure
- Nominal diameter of 8.0 millimeters
- 1/2 inch female and male port thread measurements
- Calculated volume of .49735
- Temperature range of -40°C to +80°C
Includes
One pressure controlled check valve
Warranty
This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
Cross Reference
Wabco 4341003100 Cross References
060-065677, 065677, 109845, 20QE4162, 5000105, 5000148X, 5000588, 5003168, 5003225, 5003730, 5004825, 5006638, 6300-4341003100, 8023178, 8235-S4341003100, S434-100-310-0, S4341003100, TDAS4341003100, WAB4341003100
Specifications
| Volume | 0.49735 |
| Operating Temperature Range | -40°C to +80°C |
| Port Size | 11971 |
| Brand | wabco |
| Supersedes | S4341003100 |
| Component Type | With return flow |
| MPN | 4341003100 |
| Width | 5 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 3.1 in. |
| Benefits | This charging valve with return flow is designed for air dryers. It contains a 8.2 bar charging pressure and a nominal diameter of 8.0 millimeters. It has 1/2 inch female and male port thread measurements; a calculated volume of .49735 and a temperature range of -40°C to +80°C. |
