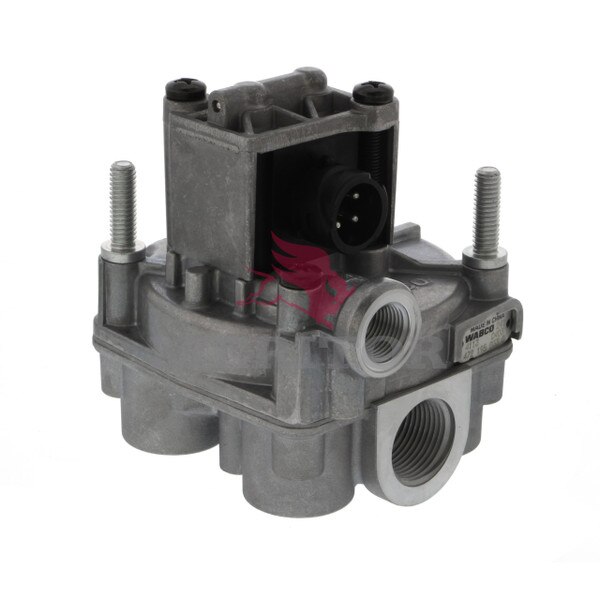

WABCO 12V ABS Relay Valve Bayonet - 4721950330 - 472 195 033 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles. It's important to pay attention to the warning signs of a failing ABS module including if the ABS warning light is illuminated; brake pedals become unresponsive or require more effort to engage and the speedometer fails. Driving with bad ABS is never recommended and should be promptly repaired after pre-trip inspections.

This ABS relay valve for trailers contains 4 x 5/16 inch mounting and a break point of .28 bar. The 12V unit has a Bayonet DIN 72585 A1-3.1-Sn/K1 electrical connection with a rated current of 2220 mA. The relay valve has a IP 66 / IP 69K protection class; a calculated volume of 1.2945 and a temperature range of -40‚°C to +80‚°C. Port thread measurements are as follows: Port 1: 2x 3/4" - 18 NPTF; Port 2: 4x 3/8" - 18 NPTF; Port 3: 3/4" - 18 NPTF; Port 4: 3/8" - 18 NPTF JED-686.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO has been a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment. Best known for advanced driver assistance system (ADAS) products OnLaneASSIST, OnSide and OnGuard, WABCO continues to impress customers by upholding their mission: To create "a safer environment for all road users and providing ever-more productive fleet applications."

Features

• 4 x 5/16 inch mounting
• Break point of .28 bar
12V
• Bayonet DIN 72585 A1-3.1-Sn/K1 electrical connection
• Rated current of 2220 mA
• IP 66 / IP 69K protection class
• Calculated volume of 1.2945
• Temperature range of -40‚°C to +80‚°C
• Port 1: 2x 3/4" - 18 NPTF; Port 2: 4x 3/8" - 18 NPTF; Port 3: 3/4" - 18 NPTF; Port 4: 3/8" - 18 NPTF JED-686

Includes

One ABS Relay valve

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

10800262, 10800314, 3508877, 40502928, 4461082010, 4721950339, 5396-AQ960503, 5396AQ960503, 6300-4721950330, 767653293455, 960503, AQ960503, AQ960503M1D, HAQ960503, HDXAQ960503, MAQ960503, MBAQ960503, MBIAQ960503, MERR955344, MERR955345, MERS4005001010, MERS4461082010, MERS4493260300, MERS4721950330, MIDAQ960503, R955344, R955345, R955373, S400-500-101-0, S4005001010, S446-108-201-0, S4461082010, S449-326-030-0, S4493260300, S472-195-033-0, S4721950330, SN2611D, TDAS4721950330, WAB10800262, WAB10800314, WAB4721950330, ZZAQ960503

Specifications
