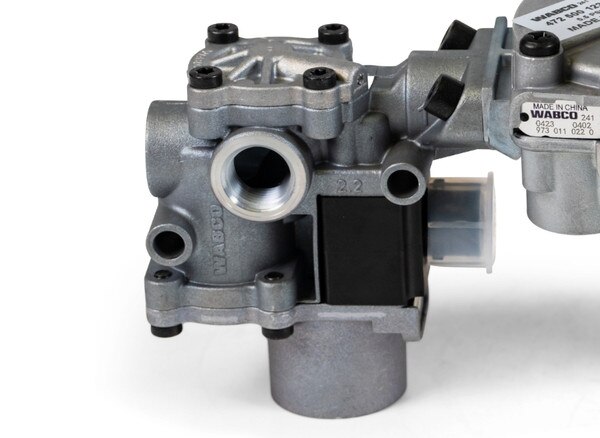

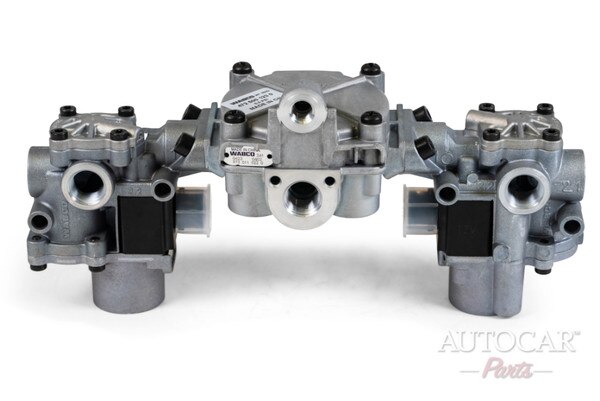

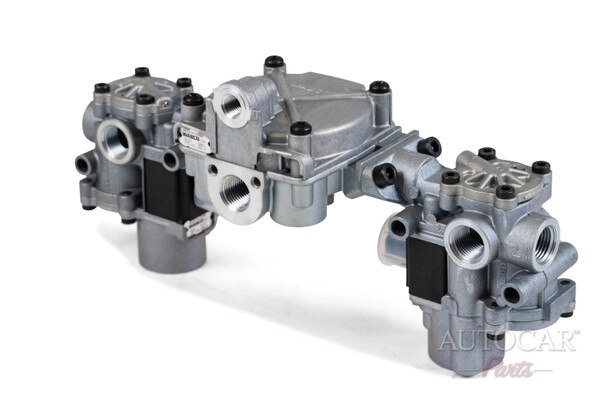

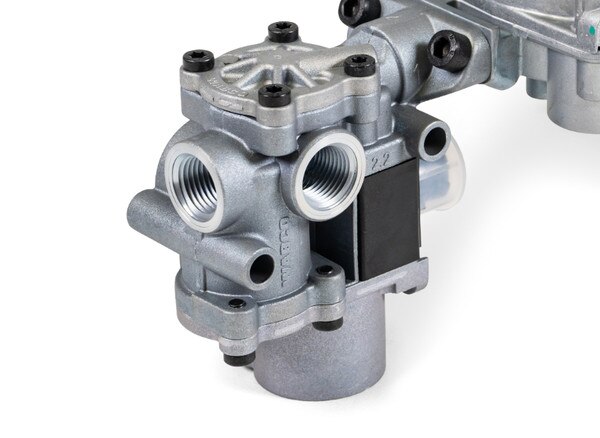

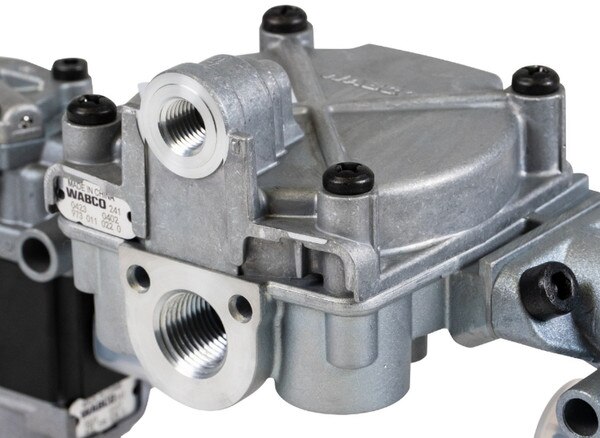

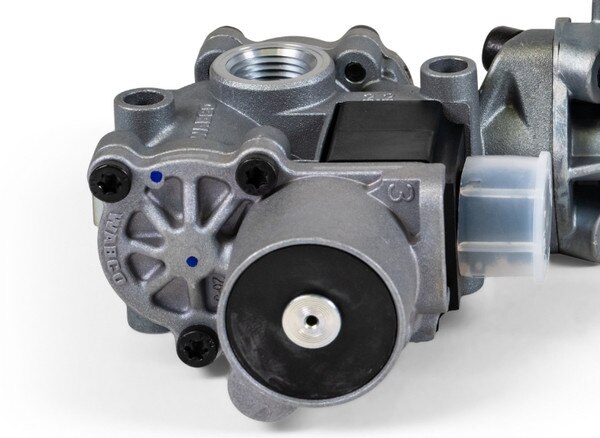

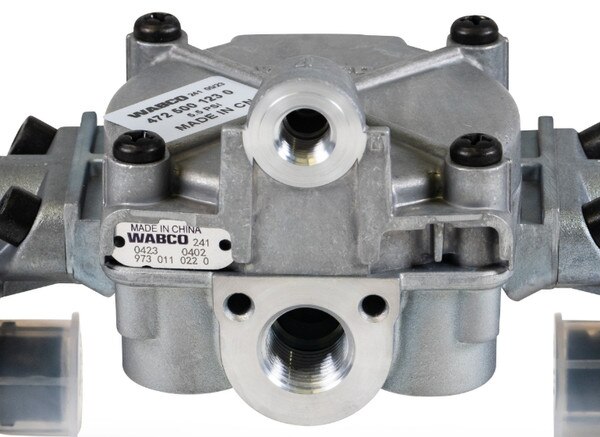

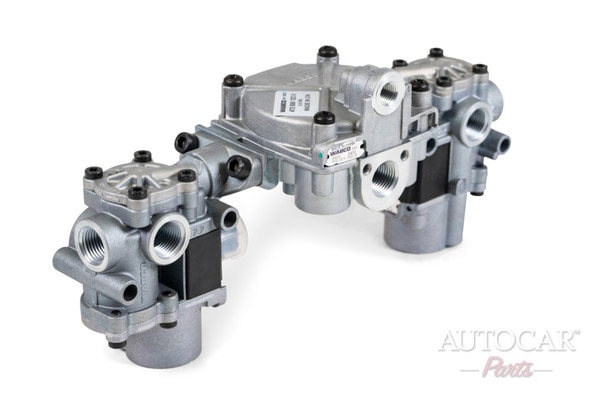

  • WABCO 4S/4M ABS Axle Package - 4725001230 - 472 500 123 0

WABCO 4S/4M ABS Axle Package - 4725001230 - 472 500 123 0

Back

Details

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles. It's important to pay attention to the warningsigns of a failing ABS module including if the ABS warning light is illuminated; brake pedals become unresponsive or require more effort to engage and the speedometer fails. Driving with bad ABS is never recommended and should be promptlyrepaired after pre-trip inspections.

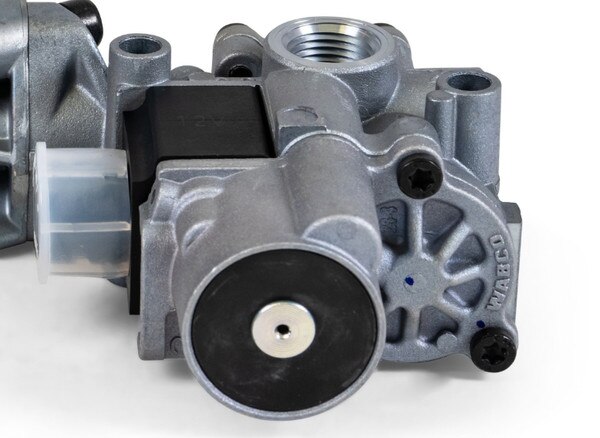

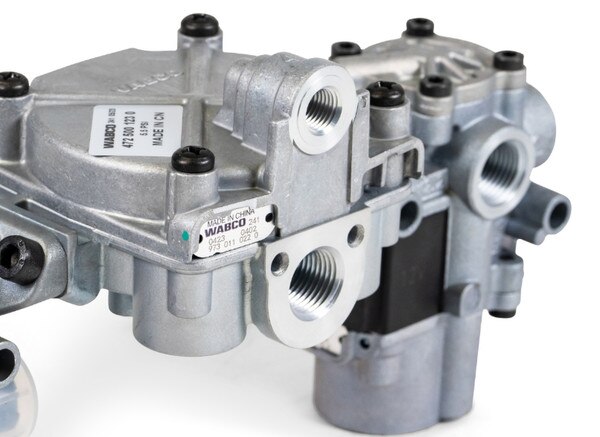

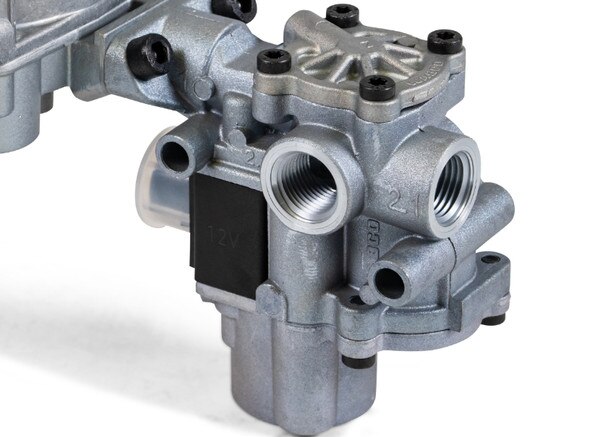

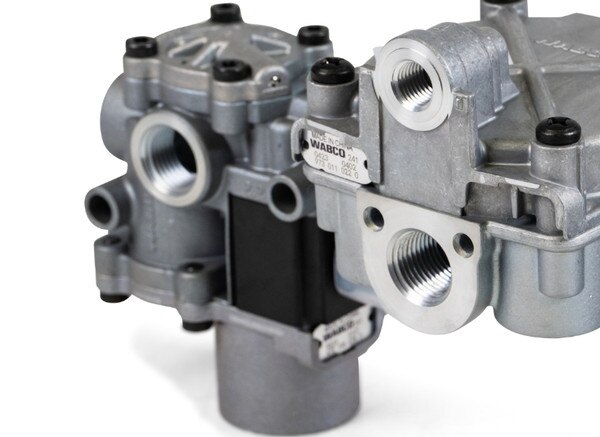

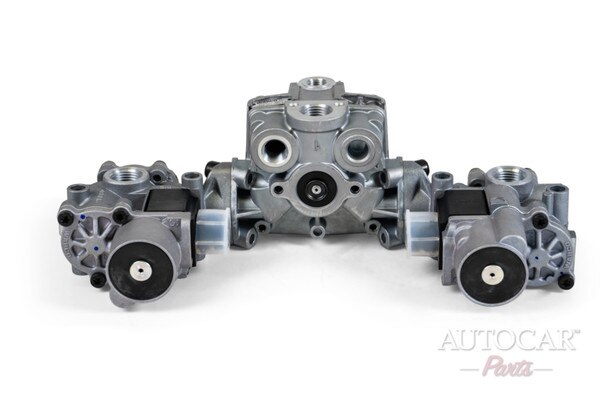

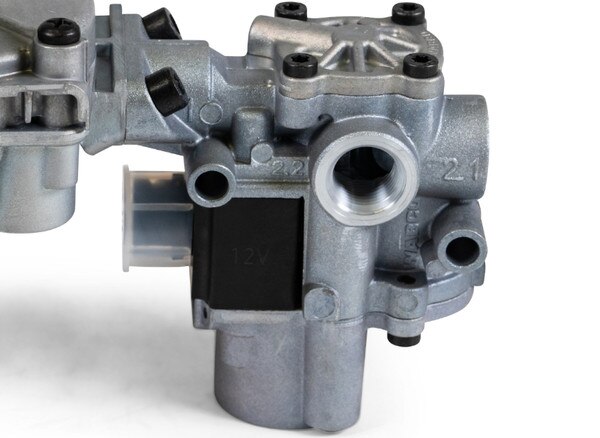

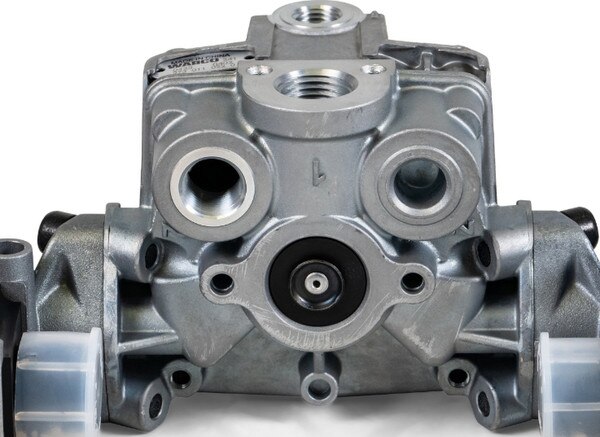

This 4S/4M 6S/4M ABS axle package contains an 11 bar operating pressure and a DIN 72585-A1-3.1-Sn/K1 electrical connection. The 12 volt unit has a response pressure of .38 bar; a calculated volume of 6.16 and a temperature range of -40°C to +80°C. Port thread sizes are as follow: Port 1: 1/2 - 14 Dry Seal NPTF; Port 2: 3/8 - 18 Dry Seal NPTF; Port 2.1 and 2.2: 1/2 - 14 Dry Seal NPTF; Port 3: Exhaust; Port 4: 1/4" - 18 Dry Seal NPTF. This product has a IP66, IP69K protection class and is compatible with C, D and E version ECUs.


This product's warranty may depend on type and vocation. Please contact our customer service team for more details.


For over 150 years, WABCO has been aglobal supplier of commercial vehicle technologies to maintain safer uptime in a greener environment. Best known for advanced driver assistance system (ADAS)productsOnLaneASSIST®, OnSide®, andOnGuard®‚, WABCO continues to impress customers by upholding their mission: To create "a safer environment for all road users and providing ever-more productive fleet applications."

Back

Cross References

1610596, 20434416, 20540690, 2057835, 2588806C1, 2S4725001210, 3521342, 400 611 034 0, 400 611 040 0, 4006110020, 4006110030, 4006110340, 4006110400, 472 500 007 2, 4721950529, 4721950780, 4721950790, 4725000072, 4725001200, 4725001209, 4725001210, 4725002230, 4725002260, 4725003200, 4725003210, 4725004230, 5010422777, 6300-4006110020, 6300-4006110030, 6300-4721950780, 6300-4721950790, 6300-4725001210, 6300-4725001230, 6300-4725002260, 6300-4725003200, 6300-4725003210, 6300-4725004230, 6300-8946011322, 6300-8946011362, 650-R950134, 650-S4725000072, 6556402, 815-4006110340, 815-4006110400, 8235-R955355, 8235-R955356, 8235-S4721950780, 8235-S4721950790, 8235-S4725001230, 8235-S4725002260, 8235-S4725003210, 8235-S8946011322, 8235-S8946011362, 8235R955355, 8946011322, 8946011362, 9730110220, G1092743, MERS4725000072, MERS4725001230, N2955010110, R950058, R950058NX, R950134, R955353, R955353NX, R955354, R955354NX, R955355, R955355NX, R955356, R955356NX, R955410, R955411, R955412, S472-195-078-0, S472-195-079-0, S472-500-120-0, S472-500-121-0, S472-500-123-0, S472-500-223-0, S472-500-226-0, S472-500-320-0, S472-500-321-0, S472-500-423-0, S4721707970, S4721707977, S4721950760, S4721950770, S4721950780, S4721950790, S4725000062, S4725000067, S4725000072, S4725000077, S4725001200, S4725001210, S4725001230, S4725002230, S4725002260, S4725003200, S4725003210, S4725004230, S894-601-132-2, S894-601-136-2, S8946011322, S8946011362, S973 011 022 0, S973-011-921-2, S9730110220, S9730110240, S9730119212, TDA R955355, TDAR955356, TDAS4721950780, TDAS4721950790, TDAS4725001200, TDAS4725001210, TDAS4725001230, TDAS4725002230, TDAS4725002230; S472-500-223-0; S4725002230; WAB4725002230; 4725001209, TDAS4725002260, TDAS4725003200, TDAS4725003210, TDAS4725004230, TDAS8946011322, TDAS8946011362, WAB4006110020, WAB4006110030, WAB4006110400, WAB4721950780, WAB4721950790, WAB4725001200, WAB4725001210, WAB4725001230, WAB4725002230, WAB4725002260, WAB4725003200, WAB4725003210, WAB4725004230, WAB8946011322, WAB8946011362, WN4006110030, WN4006110400, WN4725001210, WN4725001230, WO4725002230, WO8946011362, ZDRS4725000072, ZN3040215, ZN3040220

Back

Specifications

Volume6.16
Operating Temperature Range-40 to + 185° F
Port Size12036
Manufacturer Number7581
Width7578
Height7577
Length7580
Brandwabco
SupersedesS4725001230
ProtectionIP66, IP69K
Voltage12V DC
MPN4725001230
UPC680502072349
ColorGrey
Width6.7 in.
VMRS013-011-125
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Type / StyleRear Axle
Height6.95 in.
Global Trade Number00680502072349
Benefits

This 4S/4M 6S/4M ABS axle package contains an 11 bar operating pressure and a DIN 72585-A1-3.1-Sn/K1 electrical connection. The 12 volt unit has a response pressure of .38 bar; a calculated volume of 6.16 and a temperature range of -40°C to +80°C. Port thread sizes are as follow: Port 1: 1/2 - 14 Dry Seal NPTF; Port 2: 3/8 - 18 Dry Seal NPTF; Port 2.1 and 2.2: 1/2 - 14 Dry Seal NPTF; Port 3: Exhaust; Port 4: 1/4" - 18 Dry Seal NPTF. This product has a IP66, IP69K protection class and is compatible with C, D and E version ECUs.


Features

  • 4S/4M 6S/4M
  • 11 bar operating pressure
  • DIN 72585-A1-3.1-Sn/K1 electrical connection
  • 12 volts
  • Response pressure of .38 bar
  • Calculated volume of 6.16
  • Temperature range of -40°C to +80°C
  • Port 1: 1/2 - 14 Dry Seal NPTF; Port 2: 3/8 - 18 Dry Seal NPTF; Port 2.1 and 2.2: 1/2 - 14 Dry Seal NPTF; Port 3: Exhaust; Port 4: 1/4" - 18 Dry Seal NPTF
  • IP66, IP69K protection class
  • Compatible with C, D and E version ECUs

Includes

One ABS axle package


Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
