  • WABCO 4S/4M Axle Abs Tractor Package - 4725001210 - 472 500 121 0

WABCO 4S/4M Axle Abs Tractor Package - 4725001210 - 472 500 121 0

Back

Details

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

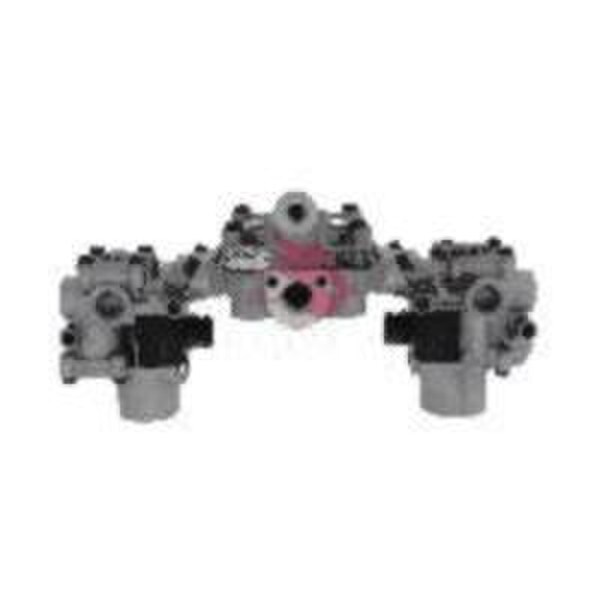

This 4S/4M axle package provides an alternative to separate valve installation by combining a service brake relay valve with two ABS modulator valves. It is compatible with C, D and E Version ECUs. The 12 volt unit contains a DIN 72585-A1-3.1-Sn/K1 electrical connection with an 11 bar max operating pressure and .38 bar response pressure. Cracking pressure measures at 5.5 PSI with a temperature range of -40°C to +80°C. Port thread measurements are as follows: Port 1: 1/2 - 14 Dry Seal NPTF; Port 2: 3/8 - 18 Dry Seal NPTF; Port 2.1: 1/2 - 14 Dry Seal NPTF; Port 3: Exhaust; Port 4: 1/4" - 18 Dry Seal NPTF. The replacement kit contains replacement valve, bolts, o rings and lubricant.


This product's warranty may depend on type and vocation. Please contact our customer service team for more details.


For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.


Back

Cross References

20434416, 2S4725001210, 3521342, 400 611 034 0, 4006110000, 4006110010, 4006110340, 4006110390, 4006110400, 472 500 007 2, 4721950529, 4721950770, 4725000072, 4725001200, 4725001209, 4725001230, 4725002250, 4725003200, 4725003210, 4725004230, 5010422777, 6300-4006110000, 6300-4006110010, 6300-4006110390, 6300-4721950770, 6300-4725001210, 6300-4725001230, 6300-4725002250, 6300-4725003200, 6300-4725003210, 6300-4725004230, 650-S4725000072, 815-4006110340, 8235-R955353, 8235-R955354, 8235-R955411, 8235-S4721950770, 8235-S4725001230, 8235-S4725002250, 8235-S4725003210, 9730110220, G1092743, MERS4725000072, MERS4725001230, R950058, R950058NX, R955353, R955353NX, R955354, R955354NX, R955355, R955355NX, R955356, R955356NX, R955405, R955410, R955411, R955412, S472-195-077-0, S472-500-120-0, S472-500-121-0, S472-500-123-0, S472-500-320-0, S472-500-321-0, S472-500-423-0, S4721707970, S4721707977, S4721950760, S4721950770, S4725000062, S4725000067, S4725000072, S4725000077, S4725001200, S4725001210, S4725001230, S4725002250, S4725003200, S4725003210, S4725004230, S973 011 022 0, S973-011-921-2, S9730110220, S9730110240, S9730119212, TDAR955353, TDAS4721950770, TDAS4725001200, TDAS4725001210, TDAS4725001230, TDAS4725002250, TDAS4725003200, TDAS4725003210, TDAS4725004230, WAB4006110000, WAB4006110010, WAB4006110390, WAB4721950770, WAB4725001200, WAB4725001210, WAB4725001230, WAB4725002250, WAB4725003200, WAB4725003210, WAB4725004230, WN4006110010, WN4725001210, WN4725001230, WN4725002250, WO4721950770, ZDRS4725000072, ZN3040215

Back

Specifications

Operating Temperature Range-40°C to +80°C
Port Size11989
Crack Pressure4434
Brandwabco
SupersedesS4725001210
ProtectionIP66, IP69K
Voltage12V DC
MPN4725001210
Width6.7 in.
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height6.95 in.
Benefits

This 4S/4M axle package provides an alternative to separate valve installation by combining a service brake relay valve with two ABS modulator valves. It is compatible with C, D and E Version ECUs. The 12 volt unit contains a DIN 72585-A1-3.1-Sn/K1 electrical connection with an 11 bar max operating pressure and .38 bar response pressure. Cracking pressure measures at 5.5 PSI with a temperature range of -40°C to +80°C. Port thread measurements are as follows: Port 1: 1/2 - 14 Dry Seal NPTF; Port 2: 3/8 - 18 Dry Seal NPTF; Port 2.1: 1/2 - 14 Dry Seal NPTF; Port 3: Exhaust; Port 4: 1/4" - 18 Dry Seal NPTF. The replacement kit contains replacement valve, bolts, o rings and lubricant.


Features

  • 4S/4M
  • Compatible with C, D and E Version ECUs
  • DIN 72585-A1-3.1-Sn/K1 electrical connection
  • 11 bar max operating pressure
  • .38 bar response pressure
  • Cracking pressure measures at 5.5 PSI
  • Temperature range of -40°C to +80°C
  • Port 1: 1/2 - 14 Dry Seal NPTF; Port 2: 3/8 - 18 Dry Seal NPTF; Port 2.1: 1/2 - 14 Dry Seal NPTF; Port 3: Exhaust; Port 4: 1/4" - 18 Dry Seal NPTF
  • Replacement valve, bolts, o rings and lubricant

Includes

One Rear Axle Package


Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.
