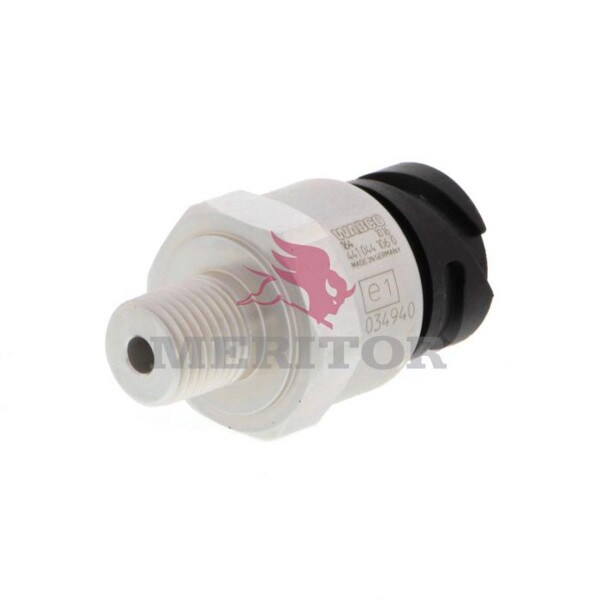

WABCO Piezo-Resistive Pressure Sensor - 4410441060 - 441 044 106 0

Product Description

ABS is an important component of any heavy-duty truck's braking system. Not only does ABS keep wheels grounded, but it helps to prevent lock-up; skidding; and losing control of vehicles.

The WABCO Piezo-Resistive Pressure Sensor - 4410441060 is without sealing and has a bayonet electrical connection. Hysteresis measures at 0.2% FS and the Linearity measures at 0.3% FS. This 24 volt unit has a measuring range of 0 to 10 bar and a max operating pressure of 16 bar. Predominance is .5V and it has a rated current of 15A. Its sensitivity is measured at .40 V/bar and has a protection class of IP6K7/IP6K9K. Lastly, the temperature range on this Pressure Sensor from WABCO is -40°C to +80°C; its calculated volume is .04959 and the Port 0 thread is 1/4 inch.

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

For over 150 years, WABCO continues to be a global supplier of commercial vehicle technologies to maintain safer uptime in a greener environment.

Features

• Piezo-Resistive
• Without sealing
• Bayonet electrical connection
• Hysteresis measures at 0.2% FS
• Linearity measures at 0.3% FS
• 24 volts
• Measuring range of 0 to 10 bar
• Max operating pressure of 16 bar
• Predominance is .5V
• Rated current of 15A
• Sensitivity is measured at .40 V/bar
• IP6K7/IP6K9K
• Temperature range is -40°C to +80°C
• Calculated volume is .04959
• Port 0 thread is 1/4 inch

Includes

One (1) WABCO Piezo-Resistive Pressure Sensor - 4410441060

Warranty

This product's warranty may depend on type and vocation. Please contact our customer service team for more details.

Cross Reference

Wabco 4410441060 Cross References

TDAS4410441060, 41904178, 8235-S4410441060, 6300-4410441060, S4410441060, 228-018, 11167588, WAB4410441060, APP04558AM

Specifications

Volume	0.04959
Operating Temperature Range	-40 to + 185° F
Port Size	12082
Brand	wabco
Supersedes	S4410441060
Protection	IP6K7/IP6K9K
Component Type	Piezo-Resistive
Voltage	24V
MPN	4410441060
Width	5 in.
UOM Quantity (Per Unit of Measure)	1
Unit of Measure (case, ea, drum, etc.)	each
Height	.1 in.
Benefits	This Piezo-Resistive pressure sensor is without sealing and has a bayonet electrical connection. Hysteresis measures at 0.2% FS and the Linearity measures at 0.3% FS. This 24 volt unit has a measuring range of 0 to 10 bar and a max operating pressure of 16 bar. Predominance is .5V and it has a rated current of 15A. Its sensitivity is measured at .40 V/bar and has a protection class of IP6K7/IP6K9K. Lastly, its temperature range is -40°C to +80°C; its calculated volume is .04959 and the Port 0 thread is 1/4 inch.

11167588, 228-018, 41904178, 6300-4410441060, 8235-S4410441060, APP04558AM, S4410441060, TDAS4410441060, WAB4410441060
