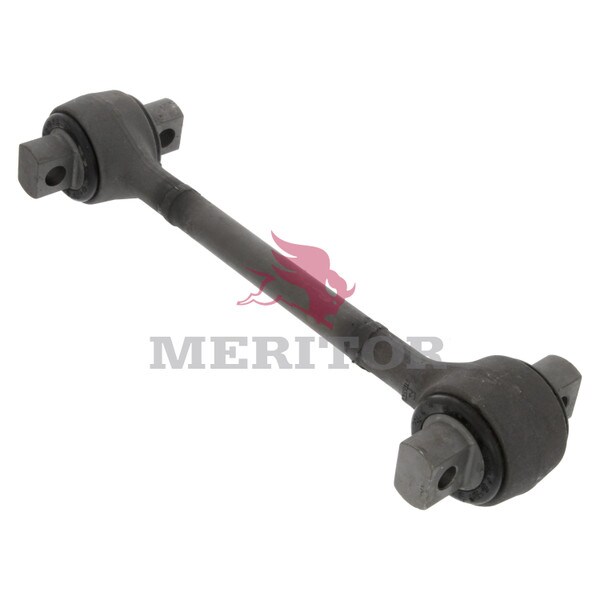

Meritor Torque Arm - R305083
Details
TORQUE ARM 5/8" HOLE HANGER END 3/4" HOLE AXLE END
Warranty depends on application and product type. Contact us for more information.
Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!
Cross References
2R305083, 345-211, DN345211, E5083, EOEUE5083, EUE5083, FGPB16, GHE5083, R305083, TMR520
Specifications
| Brand Label: | Mertr |
| Item-Level GTIN: | 680502002650 |
| Hazardous Material Code (Y/N): | N |
| Item Quantity Size UOM: | Ea |
| Description (Short Product Description): | Torque Arm |
| Bolt Hole Diameter: | Hanger End: 5/8 In.; Axle End: 3/4 In. |
| Weight: | 18.42 |
| Torque Arm Style: | Rigid |
| Torque Arm Material: | Solid Center Bar |
| Pallet Quantity: | 160 |
| Oem Part: | Peterbilt 03-04327 |
| Length: | Center-To-Center: 17 11/32 In. |
| Hole Diameter: | 0.750 In. |
| Bushing Style: | Straddle/Bar Pin |
| Bushing Outside Diameter: | 2 3/4 In. |
| Bushing Material: | Rubber |
| Bushing Length: | 4 3/8 In. |
| Brand: | Meritor |
| Application: | Peterbilt |
| Axle End Bushing: | R303868 |
| Hanger End Bushing: | R302226 |
