  • Meritor Genuine END YOKE ES - 176N410411X

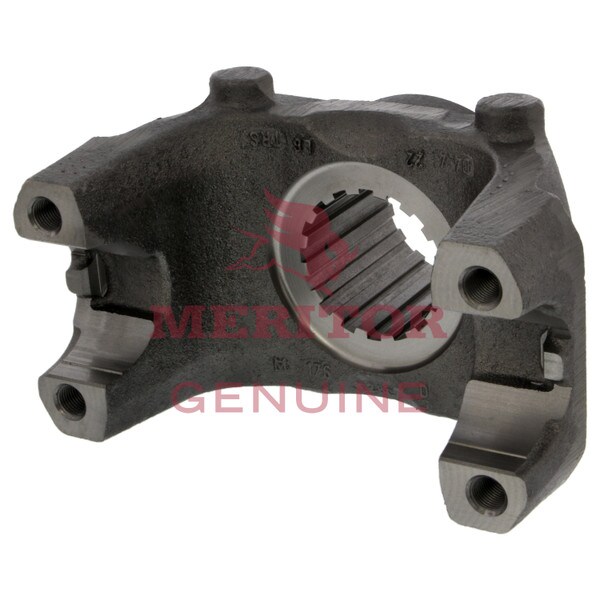

Meritor Genuine END YOKE ES - 176N410411X

Back

Details

END YOKE


Warranty information may be based on the product and application. Please contact us for additional information.


For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE ES - 176N410411X is the ideal way to make sure you have the replacement part you've been looking for.


Back

Cross References

1616215C91, 176MU, 176MU51P27, 176N-4-1041-1X, 176TYS38-27A, 176TYS38-27A2, 176TYS3827A, 176TYS3827A2, 3303006, 51P27, 6.3-4-1031-1R, 6.3-4-1041-1X, 6.3-4-1041-1XR, 6.3410411X, 63410311, 63410311R, 63410411X, 63410411XR, 8235-176N410411X, 8235-176TYS3827A, 8235176N410411X, 8235176TYS3827A, D63410411X, DS63410411X, E63410411X, N6.3-4-1041-1X, N63-4-1041-1X, N63410411X, S-B429, SB429, SD63410411X, SP63410411X, TWD63410411X, ZBP63410411X

Back

Specifications

Series2290
Joint Angle8250
BrandMeritor Genuine
Supersedes176TYS38-27A
Counter Bore Depth0.14 in.
Center To End5.06 in.
Number Of Splines / Teeth46
MPN176N410411X
UPC737238648932
Width7.5 in.
VMRS024-001-003
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height7.5 in.
Benefits

END YOKE ES


Features

  • Bearing Cap Diameter: 1.94 in.
  • Center To End: 5.06 in.
  • Counter Bore Depth: 0.14 in.
  • Deflector: DEFR56-7
  • Distance Between Nibbs: 7.09 in.
  • Hub Diameter: 3.25 in.
  • Joint Angle: 30 degrees
  • Kit Mtg. Holes: TH
  • Series: 176N
  • Spline Diameter: 2.390 in.
  • Spline Length: 2.32 in.
  • Use Kit: KT17SB
  • Use U-Joint Kit: R677X

Includes

Meritor Genuine END YOKE ES - 176N410411X


Warranty

Warranty information may be based on the product and application. Please contact us for additional information.
