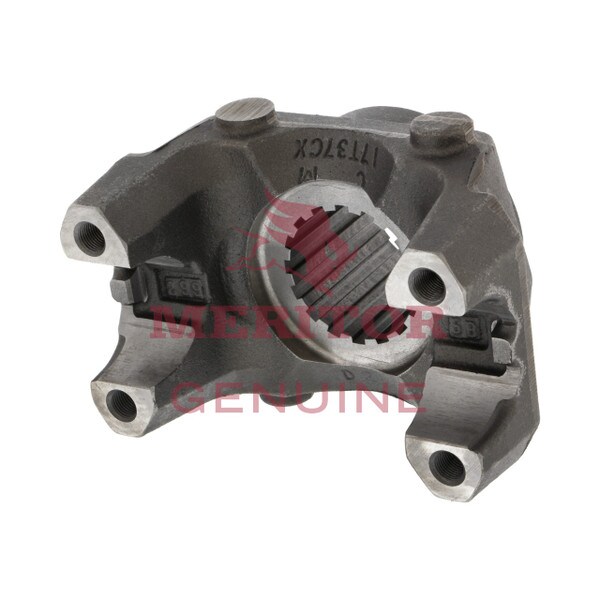

  • Meritor Genuine 46 Spline 17N End Yoke - 17TYS38-75A - 17TYS3875A

Meritor Genuine 46 Spline 17N End Yoke - 17TYS38-75A - 17TYS3875A

Details

Meritor Genuine offers genuine production parts for original performance with the same quality as parts used on new OEM equipment and on trucks rolling down the assembly lines. Meritor Genuine makes it a point to continually update their parts with the latest design enhancements and is the best choice for new vehicles, vehicles still under warranty and for customers who want to run with the best. We make it easy to spec your product by giving you the most detailed information available - Series: 17N, Spline Diameter: 2.39 in., Splines: 46, Hub diameter: 3.25 in., Spline length: 2.32 in., Center to end: 6.52 in., Joint angle: 47 degrees, Bearing cap diameter: 1.94 in., Counter bore depth: 0.14 in., Use u-joint kit: M675X, Distance between nibbs: 6.19 in., Use kit: KT17SB.


Meritor Genuine warranties its parts for 1 year from the point of sale, though warranties for certain categories of parts may vary.


An American company based in Troy, Michigan, Meritor is a leading global supplier and pioneer of drivetrain, mobility, braking and aftermarket solutions for commercial vehicle and industrial markets. With years of experience engineering leading-edge products that offer superior performance, efficiency and reliability, you run with the best when you run with Meritor.


Cross References

17-N4-7771-1X, 17TYS3875A, 217TYS38 75A, 6-4-7771-1X, 6477711X, 8068512, 8235-17TYS3875A, A3260V1634, S-F340

Specifications

Series2291
Joint Angle8261
Depth0.14 in.
Diameter1.94 in.
BrandMeritor Genuine
SupersedesA3260V1634
Counter Bore Depth0.14 in.
Center To End6.52 in.
Number Of Splines / Teeth46
MPN17TYS3875A
UPC680502142721
Width7.4 in.
VMRS024-001-003
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height7.7 in.
BenefitsWe make it easy to spec your product by giving you the most detailed information available - Series: 17N, Spline Diameter: 2.39 in., Splines: 46, Hub diameter: 3.25 in., Spline length: 2.32 in., Center to end: 6.52 in., Joint angle: 47 degrees, Bearing cap diameter: 1.94 in., Counter bore depth: 0.14 in., Use u-joint kit: M675X, Distance between nibbs: 6.19 in., Use kit: KT17SB.

Features

  • Series: 17N
  • Spline Diameter: 2.39 in.
  • Splines: 46
  • Hub diameter: 3.25 in.
  • Spline length: 2.32 in.
  • Center to end: 6.52 in.
  • Joint angle: 47 degrees
  • Bearing cap diameter: 1.94 in.
  • Counter bore depth: 0.14 in.
  • Use u-joint kit: M675X
  • Distance between nibbs: 6.19 in.
  • Use kit: KT17SB

Includes

One (1) end yoke and one (1) deflector


Warranty

1 Year
