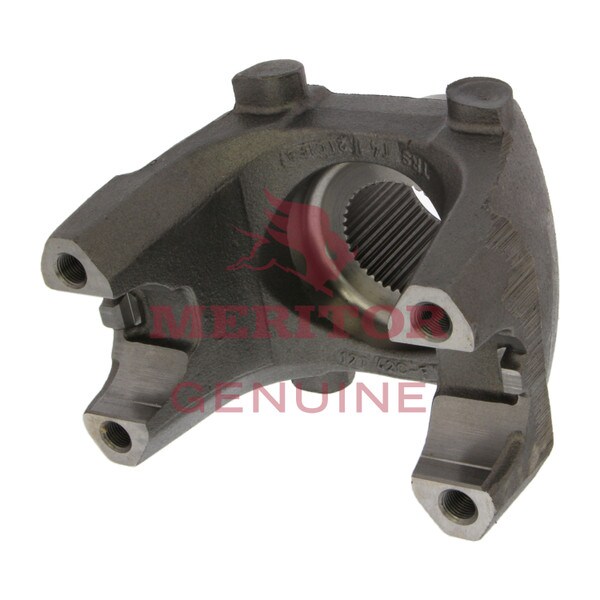

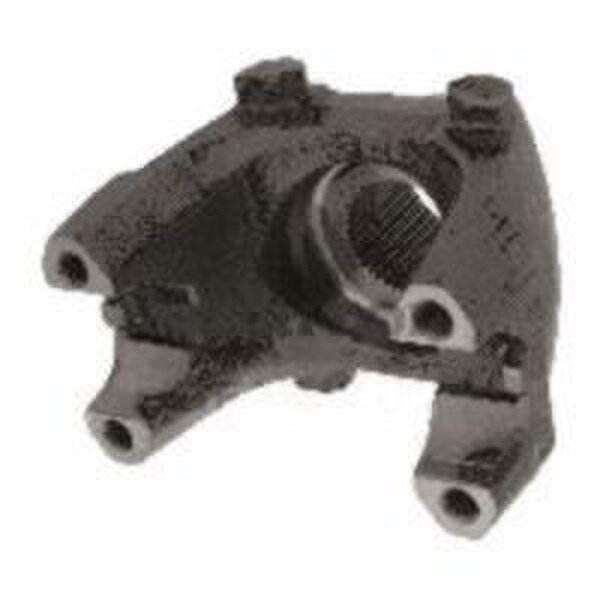

Meritor Genuine END YOKE - 17TYS3299
Details
Product Description
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 17TYS3299 is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 6.25 in.
- Counter Bore Depth: 0.09 in.
- Distance Between Nibbs: 6.19 in.
- Hub Diameter: 3.00 in.
- Joint Angle: 46 degrees
- Kit Mtg. Holes: TH
- Series: 17N
- Spline Diameter: 2.024 in.
- Spline Length: 2.31 in.
- Use Kit: KT17SB
- Use U-Joint Kit: M675X
Includes
Meritor Genuine END YOKE - 17TYS3299
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 17TYS3299 Cross References
17TYS32-99, 217TYS32 99, 3260T1814, 6-4-6371-1, 6-4-63711, 8068495, N6-4-6371
Specifications
| Series | 2291 |
| Joint Angle | 8265 |
| Depth | 0.09 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Supersedes | 17TYS32-99 |
| Counter Bore Depth | 0.09 in. |
| Center To End | 6.25 in. |
| Number Of Splines / Teeth | 39 |
| MPN | 17TYS3299 |
| UPC | 680502029442 |
| Width | 7.5 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.5 in. |
| Benefits | END YOKE |
