Meritor Genuine END YOKE ES - 17N476411X
Details
Product Description

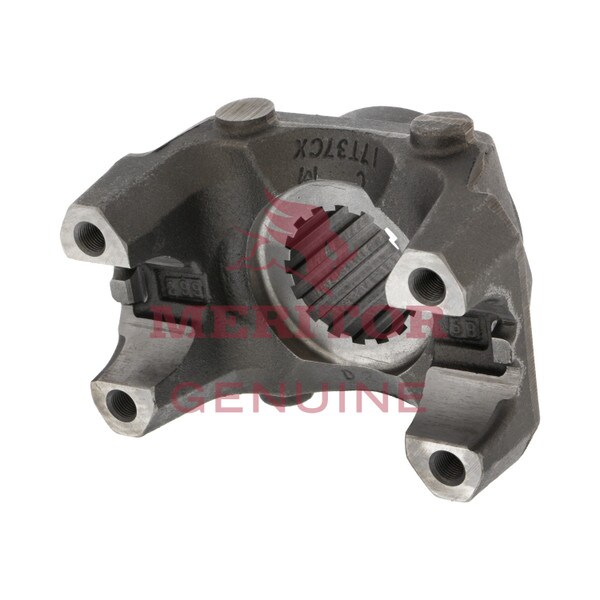

END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE ES - 17N476411X is the ideal way to make sure you have the replacement part you've been looking for.
Features
- Bearing Cap Diameter: 1.94 in.
- Center To End: 5.16 in.
- Counter Bore Depth: 0.09 in.
- Deflector: DEFR59-1
- Distance Between Nibbs: 6.19 in.
- Hub Diameter: 3.00 in.
- Joint Angle: 33 degrees
- Kit Mtg. Holes: TH
- Series: 17N
- Spline Diameter: 2.024 in.
- Spline Length: 2.31 in.
- Use Kit: KT17SB
- Use U-Joint Kit: M675X
Includes
Meritor Genuine END YOKE ES - 17N476411X
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
Cross Reference
Meritor 17N476411X Cross References
17N476411X, 17TYS32100A, 17TYS3268A, 17TYS3268A1, 217N 4 7641 1X, 3260-F-1228, 4351D, 4E, 6-4-7641-1X, 6476411X, 8235-17N476411X, 823517N476411X, A1-3260-R-1292, A13260F1228, A13260R1292, A3260R1292, A3260Y1845, ATI17N476411X, E9HZ4351D, N6-4-7641-1 X, N6-4-7641-1X, N6476411X, TDA17N476411X
Specifications
| Series | 2291 |
| Joint Angle | 8260 |
| Depth | 0.09 in. |
| Diameter | 1.94 in. |
| Brand | Meritor Genuine |
| Counter Bore Depth | 0.09 in. |
| Center To End | 5.16 in. |
| Number Of Splines / Teeth | 39 |
| MPN | 17N476411X |
| UPC | 737238648840 |
| Width | 7.4 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | END YOKE ES |
