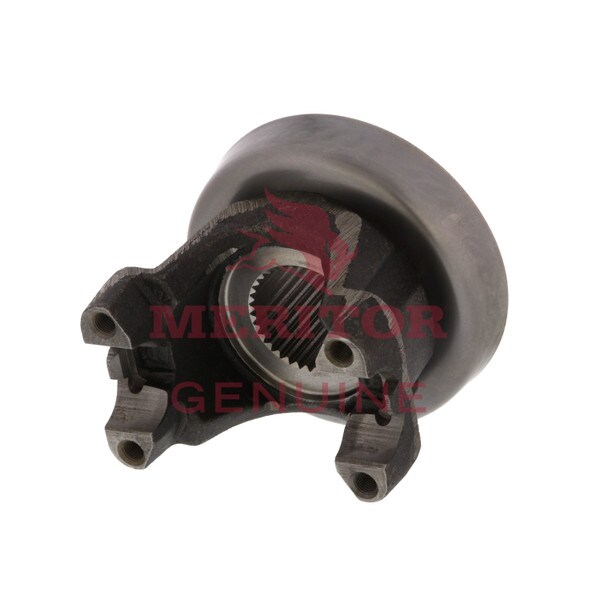

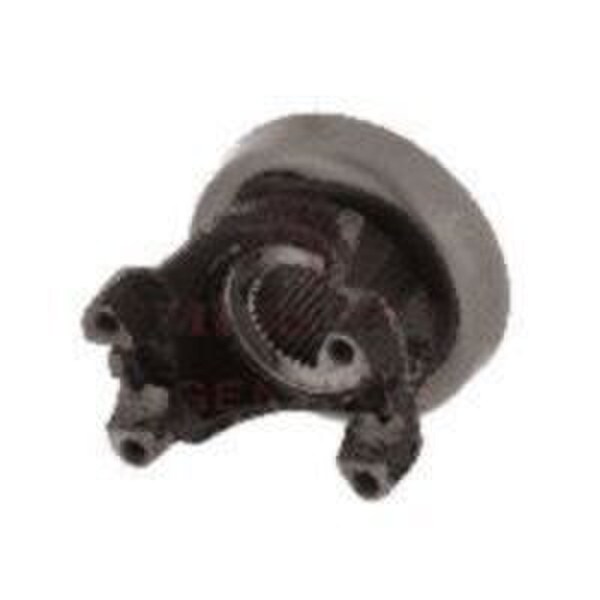

Meritor Genuine END YOKE - 148N480511X
Details
END YOKE
Warranty information may be based on the product and application. Please contact us for additional information.
For years now, Meritor has been at the forefront of the trucking industry, and the Meritor Genuine END YOKE - 148N480511X is the ideal way to make sure you have the replacement part you've been looking for.
Cross References
148N47541, 148TYS28A, 2 148N 4 8051 1X, 3-4-7541, 3-4-8051-1X, 3-4-8051X, 347541, 3480511X, TDA148N480511X
Specifications
| Series | 2286 |
| Joint Angle | 8257 |
| Diameter | 1.38 in. |
| Brand | Meritor Genuine |
| Center To End | 4.47 in. |
| Number Of Splines / Teeth | 34 |
| MPN | 148N480511X |
| UPC | 884879616063 |
| Width | 7.4 in. |
| VMRS | 024-001-003 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 7.7 in. |
| Benefits | END YOKE |
Features
- Bearing Cap Diameter: 1.38 in.
- Center To End: 4.47 in.
- Comments: Dana Spline - 1.774 in.-34
- Deflector: DEFR40-4
- Distance Between Nibbs: 4.19 in.
- Hub Diameter: 2.50 in.
- Joint Angle: 34 degrees
- Kit Mtg. Holes: TH
- Series: 148N
- Spline Diameter: 1.774 in.
- Spline Length: 2.25 in.
- Use Kit: KT124
- Use U-Joint Kit: CP148N or CP188X
Includes
Meritor Genuine END YOKE - 148N480511X
Warranty
Warranty information may be based on the product and application. Please contact us for additional information.
