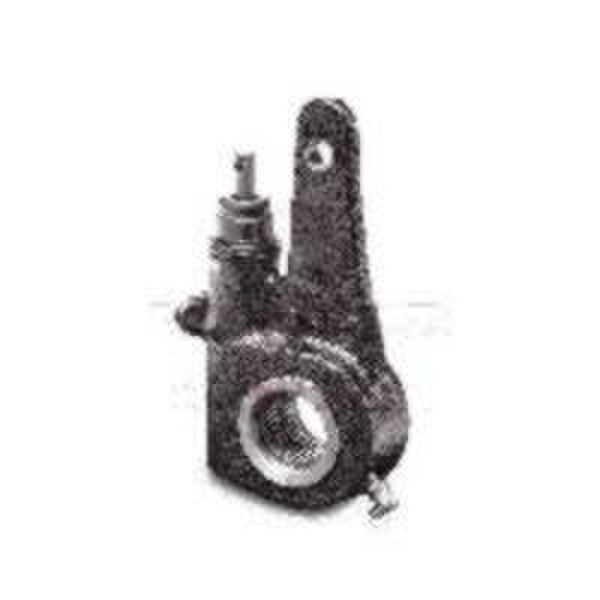

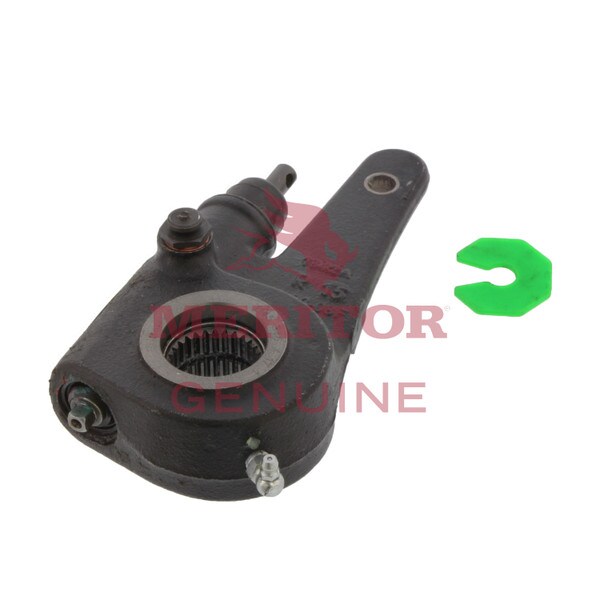

Meritor Genuine AY-ASA 1.50-28 - R803049

Product Description

AIR BRAKE - ASA - MERITOR

Warranty depends on application and product type. Contact us for more information.

Meritor is a world leader of air brake, suspension, and drivetrain system parts for on-and-off highway vehicles. When in need of replacement truck parts, choose to buy from one of the best - Meritor!

Features

• Aftermarket Extended Warranty - General: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Heavy Se: 3 Years / Unlimited Miles
• Aftermarket Extended Warranty - Linehaul: 5 Years / 500K Miles
• Aftermarket Extended Warranty - Off-High: 3 Years / Unlimited Miles
• Arm Length: 5.50 in.
• Chamber Sizes: 24
• Clevis Type: Unclevised
• Maximum Torque Rating: More than 45 inch pounds
• Model: Meritor
• Notes: Yellow piston. Drum brake.
• OEM: Meritor
• Related Clevis Kit: R810009
• Sensing Type: Stroke
• Slack Spline Count: 28
• Slack Spline Diameter: 1.50 in.
• Type: Type 2

Includes

AY-ASA 1.50-28

Warranty

Warranty depends on application and product type. Contact us to learn more.

Cross Reference

0034254, 05-563, 05563, 101261, 106902, 107402, 107403, 107421, 107536, 107788, 107991, 107996, 1392833, 1691272C91, 2018228C91, 2R803049, 3519845, 3947647, 400-10008, 400-10070, 400-10081, 400-10180, 400-20227, 400-20241, 400-20304, 40020230, 409-10227, 409-10407, 409-10512, 409-10814, 409-10861, 409-10870, 409-10872, 409-10890, 409-10893, 409-10894, 409-10895, 409-10949, 409-10979, 65171, 737238562641, 8235-R803049, 8235R802447, 8235R803049, A1-3275-Q-1083S, A1-3275-R-1084S, A1-3275-W-1089S, A1-3275-X-1090S, A13-3275-N-768S, A16-3275-A-599S, A17-3275-A-599S, A17-3275-U-593S, A18-3275-B-600S, A18-3275-N-768S, A18-3275-U-593S, A19-3275-N-768S, A2-3275-A-1119S, A2-3275-N-768S, A2-3275-W-1089S, A2-3275-X-1090S, A2-3276-A-599S, A21-3275-A-599S, A21-3275-N-768S, A21-3275-U-593S, A23-3275-H-1152S, A23-3275-N-768S, A23275A599S, A24-3275-N-768S, A29-3275-A-599S, A29-3275-U-593S, A33-3275-N-768S, A43-3275-Z-1144S, A44-3275-A-1145, A44-3275-A-599S, A44-3275-U-593S, A44-3275-Z-1144, A5-3275-N-716S, A56-3275-A-599S, A56-3275-U-593S, A563275A599S, A633275A1145S, ATIR803049, CR802447, CS52347, CS52364, CS56040, CS56040M1D, CS56049, E-6945, E11418, E11418A, MBR802447, MERR803049, MK22100S, MK42100S, MK72100S, PLR802447, R2R802447, R801078, R801080, R802179, R802180, R802181, R802447, R802648, R802649, R802680, R802681, R802684, R802685, R803046, R803047, R803048, R803049, R803049-RI, R803049RI, R803050, R803051, R803052, R803053, R803109, R803196, R803198, R806019, RBA23275A599S, RBA563275A599S, RBR802447, RBR803049, RI737238562641, ROCR802447, ROR802447, ROR803049, RSR802447, RWR802447, RWR803049, SA00202, SA00501, SA00903, SA00906, SA00908, SA01201, SA01204, SA01901, SA02203, SA02207, SA02501, SA03501, SA03601, SA04201, SA04401, SA04802, SA05501, SA05504, SA05801, SA05804, SA07002, SA07012, SA07013, SA07102, SA07202, SA07212, SA08102, SA08402, SA08902, SA08912, SA09202, SA09212, SA10202, SA10212, SA10802, SA10812, SA11102, SA11302, SAS1008, SAS1009, SAS1012, SAS1020, SAS1022, SAS1023, SAS1029, SAS1030, SAS1040, SAS1047, SAS1054, SAS1059, SAS1061, SAS1140, SAS1149, SAS1165, TDAR802447, TDAR803049, TWDR803049, ZZCS56040
