Meritor - 85123570002

SKU 85123570002
$453.99
(0)No Reviews yet

Out of Stock

This item is currently on back order but can still be purchased

Ships by 03/06/2026.

Details

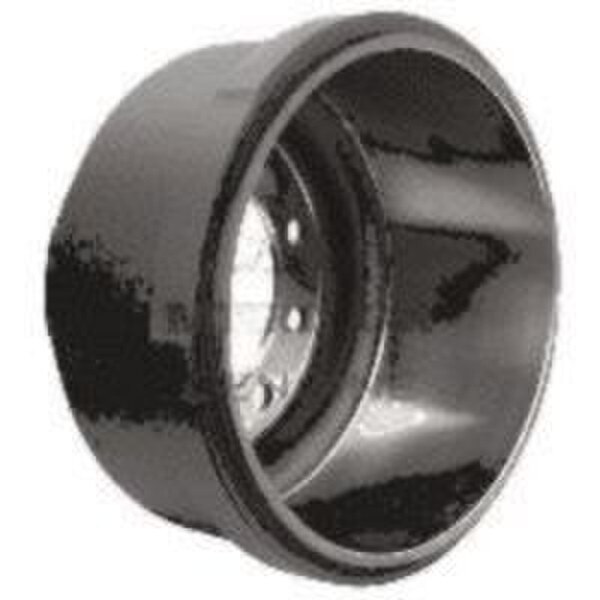

Brake drum, balanced drum/cast mtb


Cross References

00060, 10012097, 10025912, 10080287, 107638, 107638B, 123406, 123544, 123570, 13-00060, 1300060, 13104940, 15-03-6022, 15036022, 151.68607, 151.68611BA, 1513807A, 15168607, 1658625B, 2605078C1, 3123406002, 3398-3807A, 33983807A, 33983807AX, 33983807X, 3503500C2, 3807A, 3807AX, 3807X, 3972312, 53-123544-002, 53123581002, 53123597002, 54229-01, 5422901, 5499201, 56855B, 600014, 600014HD, 600026, 600026STM, 61363WE, 630000, 63123448002, 63123510002, 640000, 65727PB, 66814, 66814F, 66834, 66834B, 66834F, 66854, 66854B, 66854B20, 66854F, 66855B, 67434B, 77809BW, 77809BW20, 77854BW, 85-123570-002, 85123406002, 90434B, 90486B, 91812B, ABP N42A10025912, ABP N42A1658625B, ABP/N42A1658625B, ABPN42A10012097, ABPN42A1658625B, APB N42A1658625B, APBN42A1658625B, CM 10025912, CM10012097, CM10025912, CNM10012097, CNM107638, CO10025912, CON10012097, DB165858B, DR66854, FLT4407B, GD4703QG, GU3807A, GU3807AX, GUN 3807AX, GUN-3807AX, GUN-3807X, GUN3807, GUN3807A, GUN3807AX, GUN3807X, HD26M, KH3807A, N42A10012097, N42A1658625B, OTR1615B, OTR16585B, STE6000014HD, W66834F, W703505S307, W77809BW, WB66854, WB66854B, WB66854F, WE66834F, WE66854, WE66854B, WE66854B20, WEB 77854BW, WEB-66854F, WEB-77854BW, WEB66854B20, WEB66854F, WEB66854F20, WEB77854BW, WLT-13-00060, WLT1300060, WW61363WE, WW66854, WW66854B, WW66854F, WWD 77809BW, WWD66854B, WWD77809BW, WWD77854BW, X61363, XX61363WE, ZBR3807A, ZBR3807AX, ZBR3807X

Specifications

ESC0
BrandMeritor Genuine
MPN85123570002
Width18
VMRS013-017-006
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Height12

Features

  • Axle Capacity: 26,000 lbs.
  • Bolt Circle Diameter: 11.25 in.
  • Bolt Hole Diameter: .94 in.
  • Bolt Hole Number: 10
  • Brake Diameter: 16.50 in.
  • Brake Diameter: 16.50 in.
  • Brake Shoe Width: 8.63 in.
  • Brake Size: 16.50 in. x 8.63 in.
  • Brake Surface Width: 9.11 in.
  • Brake Width: 8.63 in.
  • Drum Mounting: Outboard
  • Overall Depth: 11.25 in.
  • Pilot Diameter: 8.78 in.
  • Type: Cast Balanced
  • Wheel Type: Disc

Warranty

1 Year
