Match Made TP-5 Style Tractor Protection Valve - ACA-0472A700
Details
Product Description
Reverse flow and "water hammering" are just a few warning signs of failing check valves. If you are experiencing these symptoms, consider buying replacement brake valve parts from Match Made for your heavy-duty truck.

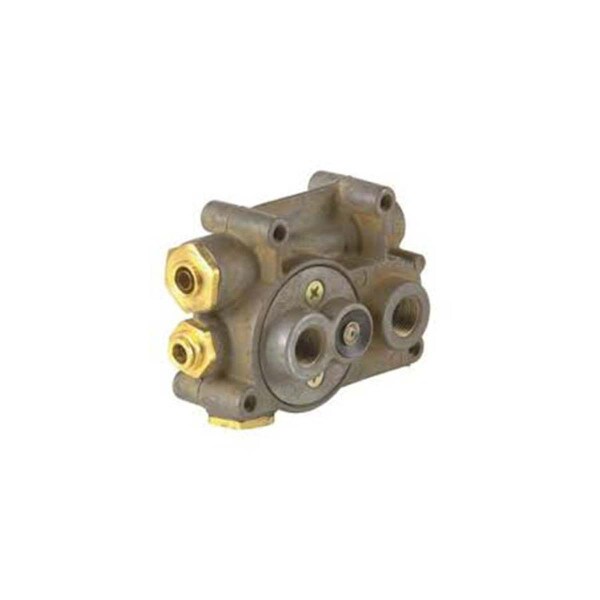

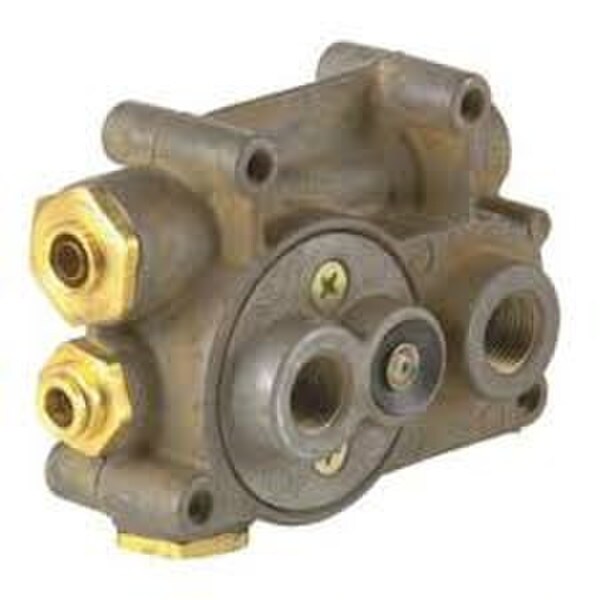

This Match Made TP-5 style tractor protection valve is designed for trailer control and tractor protection. The TP-5 was formerly known as the VM-2 control manifold. They are a merger of two double check valves and a tractor protection valve. With these valves, either of the two service brake circuits of the dual air system on the vehicle can be used to apply the trailer brakes. In addition, when used in concurrence with a control valve, it opens and closes the trailer service and contribute lines in the same manner as a tractor protection valve. The valve also incorporates porting for the installation of the service stop lamp switch. This TP-5 valve from Match Made contains a 3/8 inch NPT service port front and rear as well as a 1/2 inch NPT trailer service and emergeny port. Stop light switch has a 1/4 inch NPT port measurement, as well.
This Match Made truck part comes with a one year warranty.
Brake parts in semi-trucks and other heavy-duty vehicles should be maintained every 50,000 miles. When in need of a replacement brake valve for your commercial vehicle, choose to shop Match Made Parts!
Features

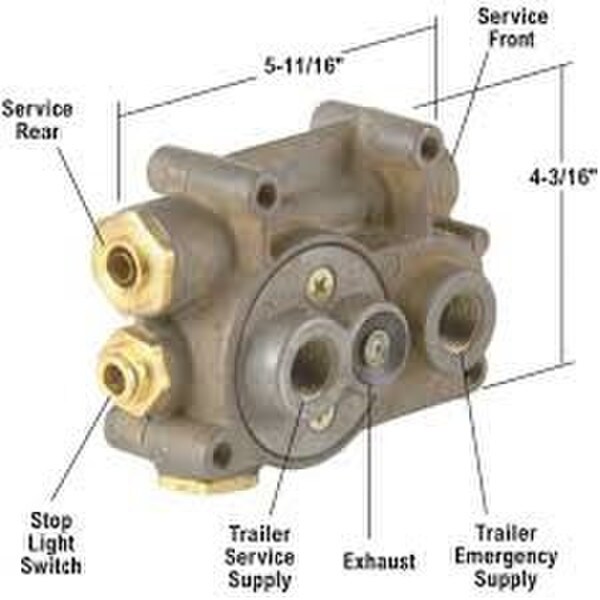

- 3/8 inch NPT service port
- 1/2 inch NPT trailer service and emergeny port
- Stop light switch has a 1/4 inch NPT port measurement
Includes
TP-5 style tractor protection valve
Warranty
1 Year
Cross Reference
Matchmade ACA-0472A700 Cross References
101528, 102638, 102638X, 133856, 1577393, 288605, 288605BXR, 288605BXW, 288605N, 288605P, 288605RX, 288605X, 288605X 288605BXW, 288688, 289253X, 34082, 3500978, 5396288605X, 745-288605N, 745288605, 745288605N, 88605, ACA0472A700, AV288605, BAN288605N, BBH-288605CX, BBH288605CX, BE288605, BE288605X, BEN288605N, BG288605X, BH288605X, BV288605, BW 288605, BW102638, BW288605, BW288605N, BW288605X, BWBW288605, BWBWR288605, BWOR288605X, BWR288605, BWR288605X, BX101528, BX102638X, BX288605, BX288605N, BX288605X, BX288688, BX289253X, BXR288605, BXR288605X, BXTP5, BXVM2, BXX288605, D288605X, EBN288605X, EUEBN288605X, MB288605X, MD288605X, MI288605X, MI5396288605X, MID288605X, OR288605, OR288605X, OTR288605, P288605, R288605, R288605X, R955288605N, R955288605X, SA274, TWDBEN288605N, VL5514, X288605
Specifications
| Port Size | 13392 |
| Brand | Match Made |
| MPN | ACA-0472A700 |
| Width | 1 in. |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Height | 1 in. |
| Benefits | This Match Made TP-5 style tractor protection valve is designed for trailer control and tractor protection. The TP-5 was formerly known as the VM-2 control manifold. They are a merger of two double check valves and a tractor protection valve. With these valves, either of the two service brake circuits of the dual air system on the vehicle can be used to apply the trailer brakes. In addition, when used in concurrence with a control valve, it opens and closes the trailer service and contribute lines in the same manner as a tractor protection valve. The valve also incorporates porting for the installation of the service stop lamp switch. This TP-5 valve from Match Made contains a 3/8 inch NPT service port front and rear as well as a 1/2 inch NPT trailer service and emergeny port. Stop light switch has a 1/4 inch NPT port measurement, as well. |
