Match Made P Air Spring, 7 In. - APL-100141
Details
Product Description
Air springs in semi trucks and other commercial vehicles are generally durable - as most are made from rubber; but like other truck parts, they tend to wear out over time. Air bag suspension parts should be replaced every 80,000-100,000 miles to ensure a safe and comfortable ride. Drivers noticing leaking air and reduced maneuverability should seek aftermarket air springs before it leads to trouble. When in need, turn to Match Made!

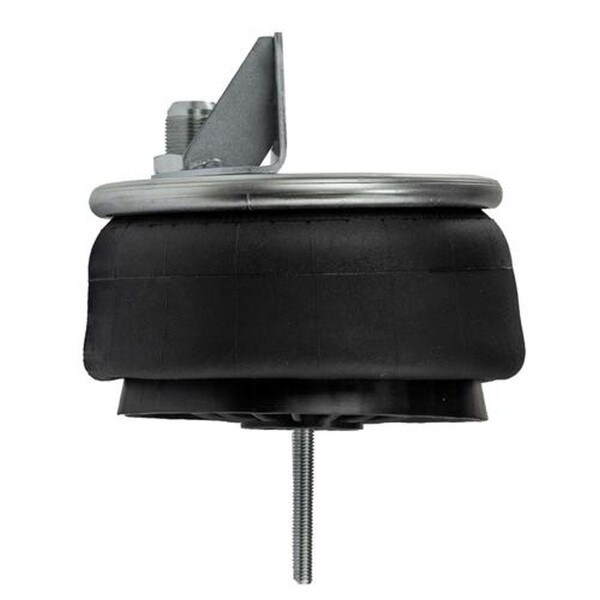

This Rolling Lobe Parallel air spring is designed for heavy-duty vehicles. It contains a "P" bottom plate and a design height of 7 inches. Its load rating at 100 PSI is 6280 and load rating at 80 PSI is 5020. Additionally, it features a 95 natural frequency. It features a top plate diameter measurement of 9 inches with a top plate center to center measurement of 2.24 inches. Its bottom plate diameter measures 8.82 inches. Bottom plate holes: 1. Lastly, its height measurements are as follow: 3.9 inches (minimum) and 11.4 inches (maximum).
This Match Made safety product comes with a one year warranty.
Match Made is one of the most trusted brands in the industry for quality OEM truck parts that are reliable for all types of heavy-duty commercial vehicles. When in need of replacement air springs and air bag components, shop Match Made Parts!
Features
- "P" bottom plate
- Design height of 7 inches
- Load rating at 100 PSI is 6280
- Load rating at 80 PSI is 5020
- 95 natural frequency
- Top plate diameter measurement of 9 inches
- Top plate center to center measurement of 2.24 inches
- Bottom plate diameter measures 8.82 inches
- Bottom plate holes: 1
- Height measurements are as follow: 3.9 inches (minimum) and 11.4 inches (maximum)
Includes
Rolling Lobe Parallel air spring
Warranty
1 year
Cross Reference
019622, 10-99622, 1000-AS9622, 1000AS9622, 1R11-221, 1R11221, 68359, 8537, 9 9-9 S 537, 9622, 999P537, 999S537, AB1DK20G-9622, ABPN32019622, AS-8537, AS9622, AS96220, AS96221, ASPR9L99622, E-FS9622, FIW013589622, FS9622, FSIW013589622, G2299622200, GBH1R11221, GTK-358-9622, GTK3589622, GY1R11221, GYR1R11221, K303-19, K303-22, K30319, K30322, MAF9622, PR9L9, RCAS9622, RF322C9265, TAS9622, TR9622, TWDW013589622, W01-358-9622, W013589622, WA01-9622, WA01-9622C, WA019622C
Specifications
| Height | 13074 |
| Diameter | 11.5 in. |
| Brand | Match Made |
| MPN | APL-100141 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | This Rolling Lobe Parallel air spring is designed for heavy-duty vehicles. It contains a "P" bottom plate and a design height of 7 inches. Its load rating at 100 PSI is 6280 and load rating at 80 PSI is 5020. Additionally, it features a 95 natural frequency. It features a top plate diameter measurement of 9 inches with a top plate center to center measurement of 2.24 inches. Its bottom plate diameter measures 8.82 inches. Bottom plate holes: 1. Lastly, its height measurements are as follow: 3.9 inches (minimum) and 11.4 inches (maximum). |
