Match Made Air Spring W/Bumper, 9 In. - APL-100123

Product Description

Air springs in semi trucks and other commercial vehicles are generally durable - as most are made from rubber; but like other truck parts, they tend to wear out over time. Air bag suspension parts should be replaced every 80,000-100,000 miles to ensure a safe and comfortable ride. Drivers noticing leaking air and reduced maneuverability should seek aftermarket air springs before it leads to trouble. When in need, turn to Match Made!

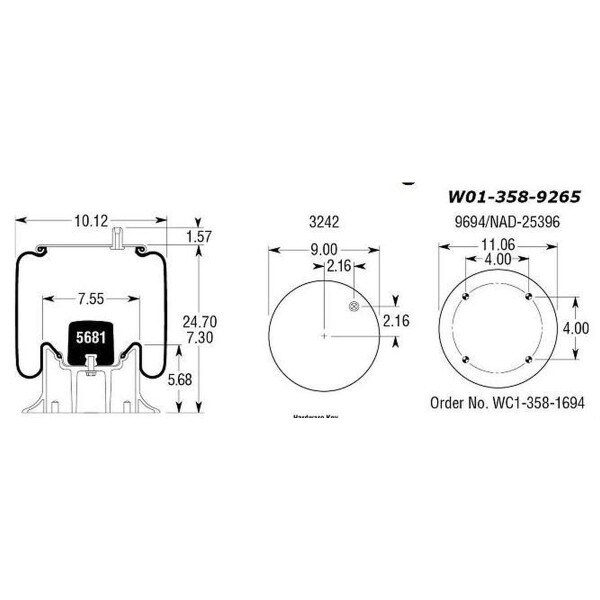

This Rolling Lobe air spring is designed for heavy-duty vehicles. Yes, bumper. It features a top plate diameter measurement of 9 inches. Top plate holes: 1. Additionally, its bottom plate diameter measures 9.5 inches and a bottom plate center diameter measurement of 5.66 inches. Bottom plate holes: 4. Lastly, its height measurements are as follow: 7.8 inches (minimum) and 24.9 inches (maximum).

This Match Made safety product comes with a one year warranty.

Match Made is one of the most trusted brands in the industry for quality OEM truck parts that are reliable for all types of heavy-duty commercial vehicles. When in need of replacement air springs and air bag components, shop Match Made Parts!

Features

• Top plate diameter measurement of 9 inches
• Top plate holes: 1
• Bottom plate diameter measures 9.5 inches
• Bottom plate center diameter measurement of 5.66 inches
• Bottom plate holes: 4
• Height measurements are as follow: 7.8 inches (minimum) and 24.9 inches (maximum)

Includes

Rolling Lobe air spring

Warranty

1 year

Cross Reference

1R12-375, S20124, S20413, S-20124, S-20413, AB1DK23L-9265, 64288, FS9265, 20124, 20413, C20413, C-20413, W01-358-9265, 8435, AS9265, FS9265
