Match Made Rolling Lobe Air Spring, 10.5 In. - APL-100109
Details
Product Description
Air springs in semi trucks and other commercial vehicles are generally durable - as most are made from rubber; but like other truck parts, they tend to wear out over time. Air bag suspension parts should be replaced every 80,000-100,000 miles to ensure a safe and comfortable ride. Drivers noticing leaking air and reduced maneuverability should seek aftermarket air springs before it leads to trouble. When in need, turn to Match Made!

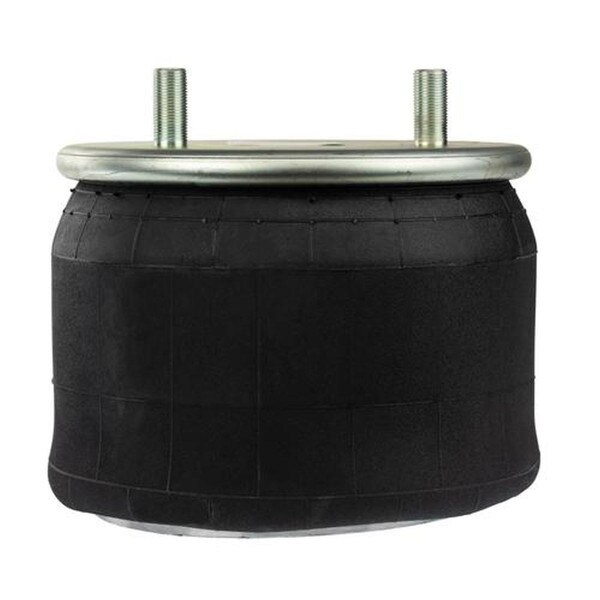

This Rolling Lobe Parallel air spring is designed for heavy-duty vehicles. It contains an "A" bottom plate and a design height of 10.5 inches. Its load rating at 100 PSI is 8450 and load rating at 80 PSI is 6760. Additionally, it features a 75 natural frequency. It features a top plate diameter measurement of 10.2 inches with a top plate center to center measurement of 5.5 inches. Top plate holes: 2. Additionally, its bottom plate diameter measures 9.5 inches and a bottom plate center diameter measurement of 2.25 inches. Bottom plate holes: 4. Lastly, its height measurements are as follow: 7.1 inches (minimum) and 19 inches (maximum).
This Match Made safety product comes with a one year warranty.
Match Made is one of the most trusted brands in the industry for quality OEM truck parts that are reliable for all types of heavy-duty commercial vehicles. When in need of replacement air springs and air bag components, shop Match Made Parts!
Features
- "A" bottom plate
- Design height of 10.5 inches
- Load rating at 100 PSI is 8450
- Load rating at 80 PSI is 6760
- 75 natural frequency
- Top plate diameter measurement of 10.2 inches
- Top plate center to center measurement of 5.5 inches
- Top plate holes: 2
- Bottom plate diameter measures 9.5 inches
- Bottom plate center diameter measurement of 2.25 inches
- Bottom plate holes: 4
- Height measurements are as follow: 7.1 inches (minimum) and 19 inches (maximum)
Includes
Rolling Lobe Parallel air spring
Warranty
1 year
Cross Reference
AB1DK25B-8755, 10-98755, M-3566, 10 10-15 S 522, 101015S522, 352-8755, 64397, E-FS8755, W01-358-8755, 1R13-124, HK190T, S-21623, S22045, FS8755, RFS8755, TR8755, 8755, AS-8522, AS-8755, WA01-8755, 8522, AS8755
Specifications
| Height | 13045 |
| Diameter | 13.7 in. |
| Brand | Match Made |
| MPN | APL-100109 |
| UOM Quantity (Per Unit of Measure) | 1 |
| Unit of Measure (case, ea, drum, etc.) | each |
| Benefits | This Rolling Lobe Parallel air spring is designed for heavy-duty vehicles. It contains an "A" bottom plate and a design height of 10.5 inches. Its load rating at 100 PSI is 8450 and load rating at 80 PSI is 6760. Additionally, it features a 75 natural frequency. It features a top plate diameter measurement of 10.2 inches with a top plate center to center measurement of 5.5 inches. Top plate holes: 2. Additionally, its bottom plate diameter measures 9.5 inches and a bottom plate center diameter measurement of 2.25 inches. Bottom plate holes: 4. Lastly, its height measurements are as follow: 7.1 inches (minimum) and 19 inches (maximum). |
