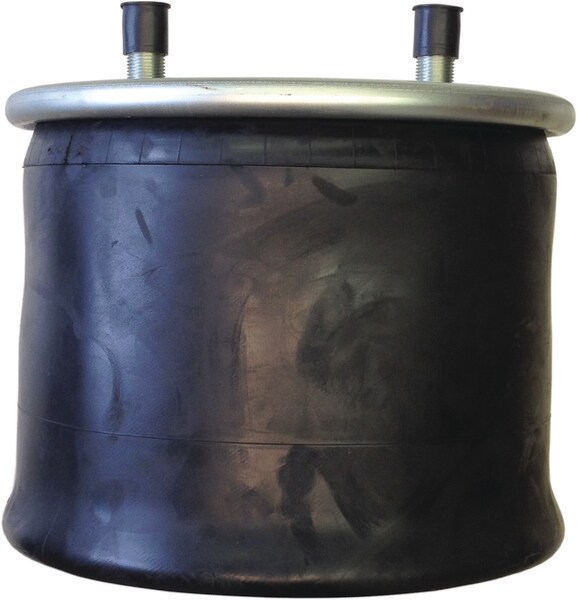

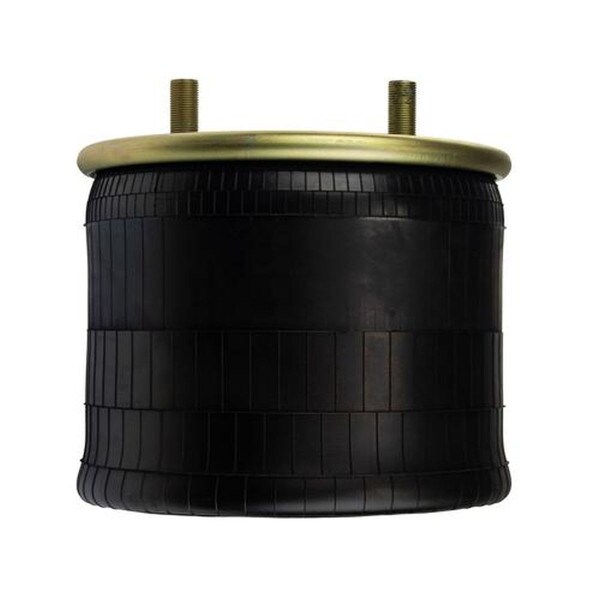

Match Made Tractor Rolling Lobe Air Spring - APL-100103

SKU APL-100103
$78.01
(0)No Reviews yet

In-stock ships today if ordered by 3pm CST

Currently Available: 171

Details

Product Description

Air springs in semi trucks and other commercial vehicles are generally durable - as most are made from rubber; but like other truck parts, they tend to wear out over time. Air bag suspension parts should be replaced every 80,000-100,000 miles to ensure a safe and comfortable ride. Drivers noticing leaking air and reduced maneuverability should seek aftermarket air springs before it leads to trouble. When in need, turn to Match Made!

This Parallel tractor rolling lobe air spring is designed for heavy-duty vehicles. It contains an "A" bottom plate and a design height of 10 inches. Its load rating at 100 PSI is 10250 and load rating at 80 PSI is 8200. Additionally, it features a 74 natural frequency. It features a top plate diameter measurement of 11.31 inches with a top plate center to center measurement of 5.5 inches. Top plate holes: 2. Additionally, its bottom plate diameter measures 10.16 inches and a bottom plate center diameter measurement of 2.25 inches. Bottom plate holes: 1. Lastly, its height measurements are as follow: 5.1 inches (minimum) and 19.3 inches (maximum).

This Match Made safety product comes with a one year warranty.

Match Made is one of the most trusted brands in the industry for quality OEM truck parts that are reliable for all types of heavy-duty commercial vehicles. When in need of replacement air springs and air bag components, shop Match Made Parts!


Features

  • "A" bottom plate
  • Design height of 10 inches
  • Load rating at 100 PSI is 10250
  • Load rating at 80 PSI is 8200
  • 74 natural frequency
  • Top plate diameter measurement of 11.31 inches
  • Top plate center to center measurement of 5.5 inches
  • Top plate holes: 2
  • Bottom plate diameter measures 10.16 inches
  • Bottom plate center diameter measurement of 2.25 inches
  • Bottom plate holes: 1
  • Height measurements are as follow: 5.1 inches (minimum) and 19.3 inches (maximum)

Includes

Parallel tractor rolling lobe air spring


Warranty

1 year


Cross Reference

10-21, 10-98091, 1000-AS9580, 1000AS9580, 1010-21P434, 101021P434, 101021P494, 11105A16P523, 1R13-118, 1R13-144, 1R13118, 1R13144, 1R14-171, 20127, 3040-W013589580, 3040W013589580, 352-8091, 6371, 64394, 64421, 8091, 8434, 8523, AB1DK28E-8091, AS-8523, AS8091, AS80910, AS9580, AS95800, ASPR10B219580, B20127, B20414, E-FS8091, FIPW013589580, FIW013589580, FLT1R13118, FLTA1R13118, FS8091, FS9580, FSIW013589580, G2299580300, GBH1R13118, GTK-358-9580, GTK3589580, GY1R13118, GYR1R13118, HDV9580, HENS-20127, HENS20127, HKA250, HS20127, HT-250U-Y, HT250US, HT250UY, HTSS20127, HTSS20414, M-3565, MAF9580, PR10B21, RCAS9580, REA1R13-118, REA1R13118, RF710918308, RFS8091, S-20127, S-20414, S-20901, S-21784, S20127, S20414, S20901, S21784, TAS9580, TR8091, TR9580, TWDW013589580, VX9580, W01-358-8091, W01-358-9262, W01-358-9580, W013589262, W013589580, WA01-8091, WA01-9580C, WA019580C


Specifications

Height13038
Diameter14.1 in.
BrandMatch Made
MPNAPL-100103
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Benefits

This Parallel tractor rolling lobe air spring is designed for heavy-duty vehicles. It contains an "A" bottom plate and a design height of 10 inches. Its load rating at 100 PSI is 10250 and load rating at 80 PSI is 8200. Additionally, it features a 74 natural frequency. It features a top plate diameter measurement of 11.31 inches with a top plate center to center measurement of 5.5 inches. Top plate holes: 2. Additionally, its bottom plate diameter measures 10.16 inches and a bottom plate center diameter measurement of 2.25 inches. Bottom plate holes: 1. Lastly, its height measurements are as follow: 5.1 inches (minimum) and 19.3 inches (maximum).

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
