Match Made Rolling Lobe P Air Spring - APL-100079

Product Description

Air springs in semi trucks and other commercial vehicles are generally durable - as most are made from rubber; but like other truck parts, they tend to wear out over time. Air bag suspension parts should be replaced every 80,000-100,000 miles to ensure a safe and comfortable ride. Drivers noticing leaking air and reduced maneuverability should seek aftermarket air springs before it leads to trouble. When in need, turn to Match Made!

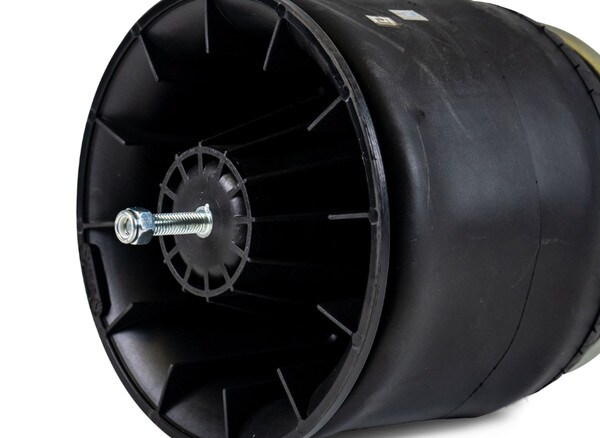

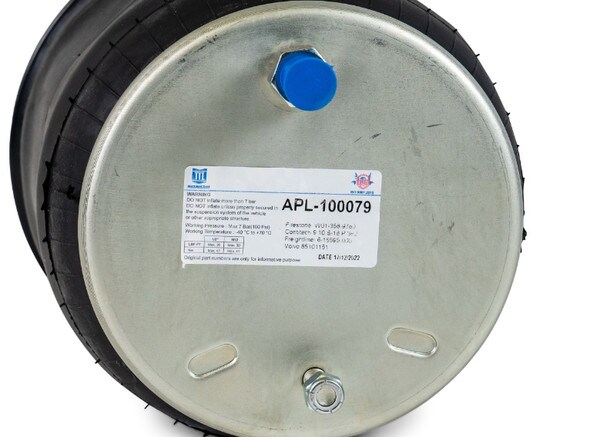

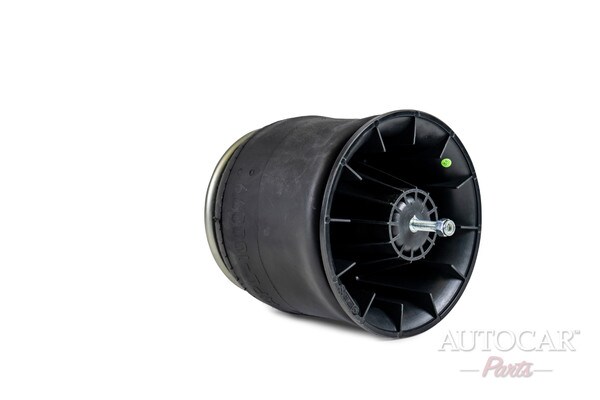

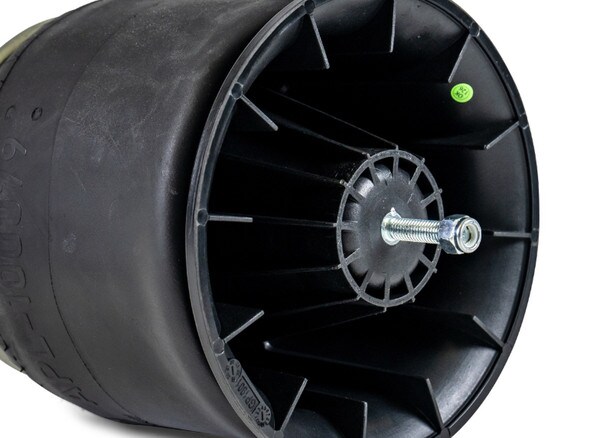

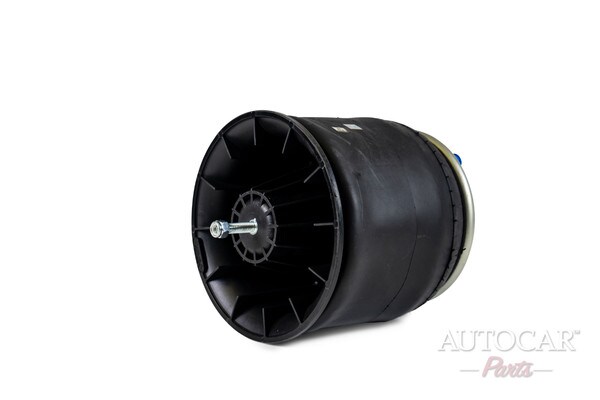

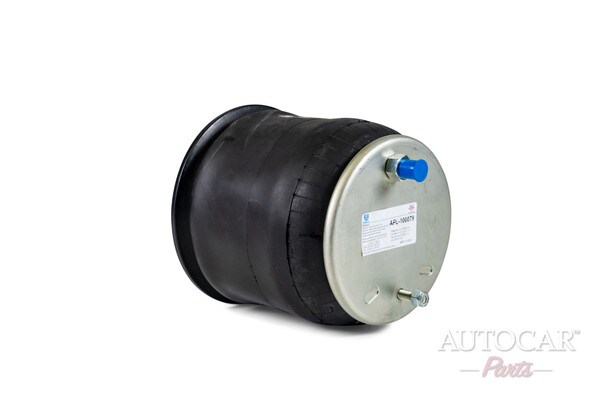

This Rolling Lobe Parallel air spring is designed for heavy-duty vehicles. It has a "P" bottom plate and a 12.5 inch design height. Furthermore, it features a load rating at 100 PSI of 7860 and a load rating at 80 PSI of 6290 as well as a natural frequency of 70. It features a top plate diameter measurement of 9 inches with a top plate center to center measurement of 6.2 inches. Top plate holes: 2. Additionally, its bottom plate diameter measures 10.63 inches and a bottom plate center diameter measurement of 3.23 inches. Bottom plate holes: 1. Lastly, its height measurements are as follow: 8.3 inches (minimum and 23 inches (maximum).

This Match Made safety product comes with a one year warranty.

Match Made is one of the most trusted brands in the industry for quality OEM truck parts that are reliable for all types of heavy-duty commercial vehicles. When in need of replacement air springs and air bag components, shop Match Made Parts!

Features

• "P" bottom plate
• 12.5 inch design height
• Load rating at 100 PSI of 7860
• Load rating at 80 PSI of 6290
• Natural frequency of 70
• Top plate diameter measurement of 9 inches
• Top plate center to center measurement of 6.2 inches
• Top plate holes: 2
• Bottom plate diameter measures 10.63 inches
• Bottom plate center diameter measurement of 3.23 inches
• Bottom plate holes: 1
• Height measurements are as follow: 8.3 inches (minimum and 23 inches (maximum)

Includes

Rolling Lobe Parallel air spring

Warranty

1 year

Cross Reference

018537, 10-99780, 10-99781, 10-99782, 1000-AS9780, 1000-AS9781, 1000AS9780, 1003589780C, 131612, 16-13801-000, 16-13810-000, 16-13810-000 PLA, 16-13810-000 PLASTIC, 16-13810-001, 16-13810-002, 16-13840-000, 16-13840-000 PLA, 16-13840-000 PLASTIC, 16-14004-000, 16-14004-001, 16-14377-000, 16-15595-000, 16-15595-001, 16-15595-002, 16-1673-000, 16-1673-000 STEEL16-15595-00216-15595-00116-15595-00016-14377-00016-14004-00116-14004-00016-13840-00016-13810-002A1614004000, 16-1673-000 steel, 16-16773-000, 16-19466-000, 16-19467-000, 16-19468-000, 16-19468-00016-19467-00016-16825-000, 16-19769-000, 1613810000, 1613810000 PLA, 1613810000PLASTIC, 1613810001, 1613810002, 16138100021613840000 PLA, 1613840000, 1613840000161400400016140040011614377000161559500016155950011615595002161673000 steel16194670001619468000A16140040001R12303 Plastic, 1613840000PLASTIC, 1614004000, 1614004001, 1614377000, 1615595000, 1615595001, 1615595002, 161673000, 161673000 steel, 161673000STEEL, 1616773000, 1616825000, 1619465000, 1619466000, 1619467000, 1619468000, 1619769000, 1DF23-9780, 1DF239780, 1DK23K9780, 1R12 603, 1R12-1054, 1R12-1072, 1R12-1082, 1R12-186, 1R12-189, 1R12-303, 1R12-303 PLASTIC, 1R12-603, 1R121054, 1R121072, 1R12186, 1R12189, 1R12303, 1R12303PLASTIC, 1R12603, 1T15ZR, 1T15ZR-3, 1T15ZR3, 1T15ZR6, 3040-W013589781, 352-9780, 352-9781, 352-9782, 3978001 KPP, 3978001KPP, 4529780, 493 1614365000, 493 1614377000, 566243108, 566243275, 570 1R12268, 570 1R12303, 570 566243274, 570 566243275, 570 GY1R12303, 6363, 64266, 67473, 67601, 67623, 681 320 00 17, 681-320-0017, 681-320-0017 ALU, 681-320-0017 ALUMINU, 6813200017, 6813200017 ALU, 6813200017ALUMINU, 68208, 68607, 73400, 73887, 8382, 8382P, 85101151, 8536, 880 1613810000, 880 1613810001, 880 1613810002, 880 1614377000, 880 1615595001, 880 1616528000, 880 1619468000, 880 1619769000, 880 A1614004000, 880 A1618335000, 880 A1618335001, 880 A1619468000, 880 A18335000, 9 10 S-16 A382, 9 10-16 A 382, 9 10-16 A 999, 9 10S-16 A 382, 910S-16P382, 910S16A382, 910S16P382, 9780, 9781, 9781C, 9782, A16-14004-000, A16-14004-000 ALUMIN, A16-14004-000A16-14004-000 ALU, A16-14004-001, A16-17574-001, A16-17574-002, A16-18335-000, A16-18335-001, A16-20111-001, A1614004000, A1614004000ALUMIN, A1614004001, A1618335000, A1618335001, A1620111001, AB1DF23-9780, AB1DF23-9781, AB1DF239780, AB1DF23I-A999, ABP N32 019781, ABPN32018537, APL-100076, AS PR9MR16-9780, AS PR9MR16-9781, AS PR9MR169780, AS RC9MR16 9780, AS-01471G, AS-0182, AS-8382, AS-8382P, AS-8999P, AS-9780, AS-9781, AS01471G, AS0182, AS8382, AS8382P, AS8999P, AS9780, AS9780A, AS9780P, AS9781, ASPR9MR169780, ASRC9MR169780, CNT AS9780, CT67473, CTH 67473 9759, CTH 67473 9759A1614004000 ALU, CTH674739759, E-FS9780, E-FS9781, FAW013589781, FI W01 358 9781, FIR/9780, FIR9780, FIW013589781, FLRTMX1R12303, FLT1R12303, FLT1R12603, FLTA1R12303, FLTA1R12603, FS9780, FS9780AG, FS9781, FSIW013589780, FSIW013589781, GBH1R12303, GBH1R12603, GD1R12-603, GTK-358-9780, GTK-358-9781, GTK3589780, GY1R12303, GY1R12603, GYR1R12303, GYR1R12603, HDV-HDV9780, HDV9780, HDV9781, K-9780, M-3550, M3550, MAF9780, MAF9781, NPT 1R12-303, NPT AS9780, PR9MR16-9780, RC AS9781, RCAS9780, REAW013589780, RFS9780, S-20179, S-20991, S-22468, S-22469, S20991, S22469, SC2750, TAS AS8382, TAS9780, TAS9781, TR9780, TR9781, TWDW013589780, TWDW013589781, U71 1T15ZR6, U71 AS9780, U71 FIW013779780, U71 W013778528, U71 W013778530, U71 W013778537, W01-358-9780, W01-358-9780 PLA, W01-358-9780 PLASTIC, W01-358-9781, W01-358-9782, W01-377-8527, W01-377-8536, W01-377-9758, W01-377-9780, W01-377-9781, W01-377-9782, W01-377-9784, W01-377-9785, W013589780, W013589780 Plastic, W013589780PLASTIC, W013589781, W013778527, W013778528, W013778529, W013779758, W013779780, W013779781, W013779784, W013779785, WA01-9780, WA01-9780C, WA01-9781, WA01-9781C, WA019780C
