Match Made Rolling Lobe 11 In. H - APL-100075

Product Description

Air springs in semi trucks and other commercial vehicles are generally durable - as most are made from rubber; but like other truck parts, they tend to wear out over time. Air bag suspension parts should be replaced every 80,000-100,000 miles to ensure a safe and comfortable ride. Drivers noticing leaking air and reduced maneuverability should seek aftermarket air springs before it leads to trouble. When in need, turn to Match Made!

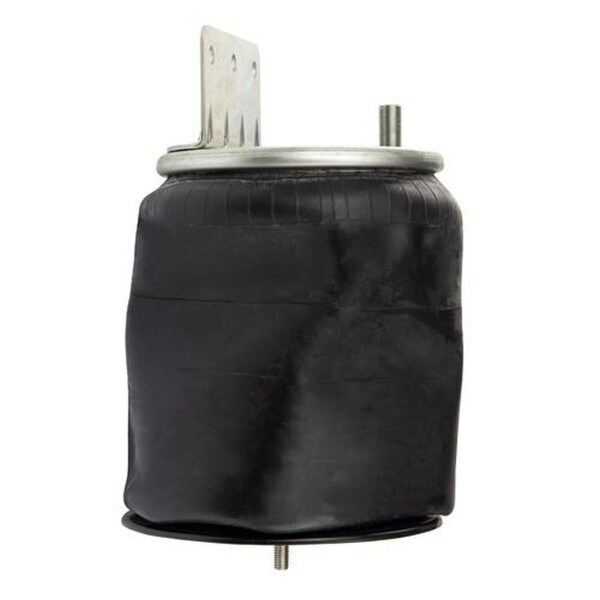

This Rolling Lobe Parallel air spring is designed for heavy-duty vehicles. It has an "A" bottom plate and a 11 inch design height. Furthermore, it features a load rating at 100 PSI of 7500 and a load rating at 80 PSI of 5900 as well as a natural frequency of 71. It features a top plate diameter measurement of 9 inches with a top plate center to center measurement of 5.75 inches. Top plate holes: 2. Additionally, its bottom plate diameter measures 10 inches and a bottom plate center diameter measurement of 2.25 inches. Bottom plate holes: 1. Lastly, its height measurements are as follow: 6 inches (minimum) and 21 inches (maximum).

This Match Made safety product comes with a one year warranty.

Match Made is one of the most trusted brands in the industry for quality OEM truck parts that are reliable for all types of heavy-duty commercial vehicles. When in need of replacement air springs and air bag components, shop Match Made Parts!

Features

• "A" bottom plate
• 11 inch design height
• Load rating at 100 PSI of 7500
• Load rating at 80 PSI of 5900
• Natural frequency of 71
• Top plate diameter measurement of 9 inches
• Top plate center to center measurement of 5.75 inches
• Top plate holes: 2
• Bottom plate diameter measures 10 inches
• Bottom plate center diameter measurement of 2.25 inches
• Bottom plate holes: 1
• Height measurements are as follow: 6 inches (minimum) and 21 inches (maximum)

Includes

Rolling Lobe Parallel air spring

Warranty

1 year

Cross Reference

10-99648, 10.17.5, 1000-AS9648, 1000AS9648, 1R12-398, 1R12-538, 1R12398, 1R12538, 2027911C-1, 2027911C-2, 2027911C1, 2027911C2, 3040-W013589648, 3040W013589648, 352-9648, 73770, 8456, 9 10.17.5 P 456, 910-185P456, 910175P456, 910185P456, 9648, AB1DF23-P1058, AB1DK23M-9648, AS-8456, AS9648, AS96480, ASPR9MR169648, E-FS9648, FIW013589648, FLT1R12538, FLTA1R12538, FS9648, FSIW013589648, GBH1R12538, GTK-358-9648, GTK3589648, GY1R12538, GYR1R12538, HDV9648, M-3571, MAF9648, PR9MR16, RCAS9648, REAW013589648, S-22470, TAS9648, TR9648, TWDW013589648, VX9648, W01-358-9648, W013589648, WA01-9648, WA01-9648C, WA019648C
