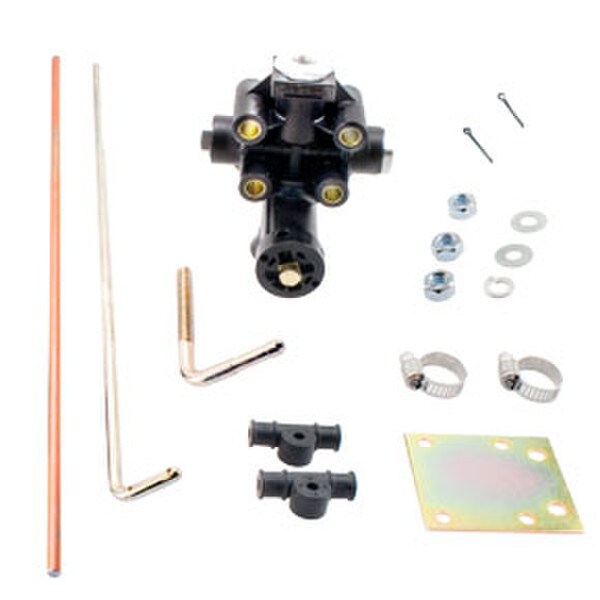

Haldex IR Height Control Valve - KN27000

Product Description

When it comes to your air and brake systems, not just any parts will do. Trust Haldex brake solutions for enhanced safety, environment, and vehicle dynamics. Haldex IR Height Control Valve - KN27000 features Horizontal Arm Length of 12 in. (Max). Vertical Arm Length is 14 in. Axle Bracket Linkage is Vertical. It is used to maintain vehicle height on an air suspended chassis. Made of durable (EGP) Engineering Grade Plastic. Linkage included in specified lengths. One valve can be used for left and right installations. One valve can control two suspension bellows. Standard flow valve for truck/bus/trailer application. All ports are 1/4 in. NPT.

Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.

Haldex is a Sweden-based company that operates worldwide in 19 countries. Haldex develops and produces reliable and innovative solutions that improve safety, vehicle dynamics and environmental sustainability in the global commercial vehicle industry. They are one of the world-leading suppliers of brake and suspension solutions, and are developing new technology for electrical and autonomous vehicles. From air compressors and air dryers to valves and hose clamps, Haldex has everything you need to keep your brake and suspension systems at peak performance all year long. Invest in the best with Haldex.

Features

• Horizontal Arm Length: 12 in. (Max).
• Vertical Arm Length: 14 in.
• Axle Bracket Linkage: Vertical.
• Used to maintain vehicle height on an air suspended chassis.
• Made of durable (EGP) Engineering Grade Plastic.
• Linkage included in specified lengths.
• One valve can be used for left and right installations.
• One valve can control two suspension bellows.
• Standard flow valve for truck/bus/trailer application.
• All ports: 1/4 in. NPT

Includes

Valve only

Warranty

Products are warrantied to be free from defects under warranty terms and conditions. Specific warranties vary slightly from products installed on new vehicles to replacement parts installed at a later date.

Cross Reference

554241, 655 VEL034064, 90554241, 90555105, E13922, E4350, ECE4350, EUE4350, FRL 42006249, KN270000, LEVELINGVALVE, LV27000, MI90554241, MIKN27000, NW90554241, NY90554241, R955KN27000N
