MGM TR3030 Piggyback Plus Kit - 3430008X
Details
Product Description
Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

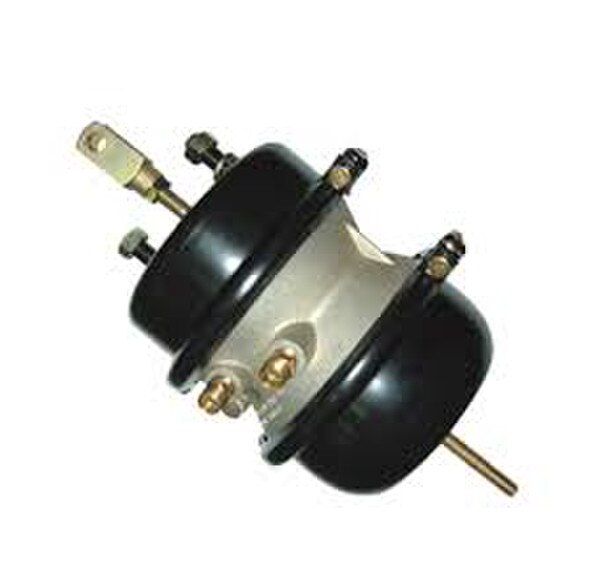

This TR3030 s-cam brake chamber with piggyback is designed for parking brakes. The TR model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head. It offers a long life power spring (spring size is 30); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm. This brake chamber with double diaphram and standard stroke contains a service size of 30; port size measurement of 3/8-18 NPTF and a stroke of 2.5 inches. Its "B" measurement is 6.66 inches; "C" measurement is 8.31 inches; "D" measurement is 8.21 inches and inlets are 3/8-18 NPTF. Package quantity of 20.
MGM's limited warranty depends on product and application. Contact us to learn more!
Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!
Features
- Service size of 30
- Port size measurement of 3/8-18 NPTF
- Stroke of 2.5 inches
- "B" measurement is 6.66 inches
- "C" measurement is 8.31 inches
- "D" measurement is 8.21 inches
- Inlets are 3/8-18 NPTF
- Package quantity of 20
Includes
TR3030 s-cam brake chamber with piggyback
Warranty
MGM's limited warranty depends on product and application. Contact us to learn more!
Cross Reference
02-7076381, 027076381, 1010438, 1010447, 1010457BX, 10326, 12474424, 12560, 1373030006, 1393030043, 15431, 15435, 15439, 15444, 15445, 15446, 15586703, 160802, 161104, 162080, 162368, 162380, 162686, 162782, 163066-1P, 163066-PB, 1630661P, 163066PB, 163539, 163961, 164478, 164516, 164545, 164566, 164690, 164721, 1693194C91, 179SB3030S, 18960, 23030C, 250NFLT3030SCB20, 286096, 286122, 286123, 286124, 286125, 286126, 286153, 286251, 286321, 286322, 286323, 286324, 286325, 286326, 286328, 286332, 286333, 286334, 286335, 286336, 286337, 286338, 286339, 286340, 286341, 286342, 286343, 286344, 286345, 286346, 286347, 286348, 286349, 286350, 286351, 286352, 286353, 286393, 286394, 286504, 286505, 286507, 286508, 30 30, 30/30, 3030-PHD, 3030021, 3030039, 3030049, 30304, 3030B, 3030C, 3030CI, 3030CIS, 3030EC, 3030EC800NN, 3030ESLR, 3030GP, 3030GSTB, 3030KLS, 3030KLSHDA, 3030NC, 3030P75, 3030PB, 3030PBKIT, 3030PC, 3030PHD, 3030PLK, 3030RB, 3030SB, 3030SN2K, 3030SN2K-3001RT, 3030SN2K3001RT, 3030SN2ULK, 3030SN3K, 3030SN3K-3003RT, 3030SN3K3003RT, 3030SN3ULK, 3030T, 3030TC, 3030TOMNI, 3030TOMNIC, 3030TOMNIDBL, 3030TPCP, 3030TPCS, 3030TPREM, 3030TPW, 3030WC, 3031SBA, 3033075, 3033075LC, 30PBK3D, 3130051, 3130517, 3131051, 3230008, 3230008X, 3230008X-MGM, 3230008XMGM, 33030C, 34300001, 3430001, 3430008, 3430051, 3430051X, 3430720, 3437060, 3512210, 3517995, 3949778, 4030051, 4030151, 43BC2, 5007126, 5007132, 5007132N, 5007610N, 5011594, 50866009, 53030017, 53230, 53235, 5396-GP3030, 5396-GP3030LK, 5396GP3030, 5396GP3030LK, 5554-3230008X, 5554-3430008X, 55543230008X, 55543430008X, 55543430051, 55543430051X, 767653298207, 767653298245, 800831, 800831N, 801377, 85107268, 85107271, 94723030PB, 94923030AP, A-3280-M-6955, A3280M6955, ABPN42A30PBK3D, ABPN42A30PBKD, BBH-BPS3030KLS, BBHBPS3030KLS, BG15431, BG15445, BGI15431, BGMA15431, BGMA15445, BH5007132, BH5007610, BM3030T, BM30C, BPS3030KLS, BS3030P, BS3030T, BS3030TC, BT3030P, BT3030T, BT3030TC, BV3030RB, BV3033075, BV3033075LC, BW286122, BW286123, BW286124, BW286125, BW286126, BW286153, BW286251, BW286332, BW286333, BW286334, BW286335, BW286336, BW286337, BW286338, BW286339, BW286340, BW286341, BW286342, BW286343, BW286344, BW286345, BW286346, BW286348, BW286349, BW286350, BW286351, BW286352, BW286353, BW5007125, BW5007126, BW5007132, BW5007610, BW5007610N, BW800831, BW800831N, BWNT3030ELSKITDS, BWNT3030STDKITDS, BWTP3030NC, BWTP3030WC, BWTYPE30, BX286347, BXNT3030ELSKITDS, BXNT3030STDKITDS, C-15444, C15444, CHEAP, CL23030C, CL3030, CL33030C, CLBM30C, DE0702003, DI12560, DN3030PC, DP12560, DP3030CI, E-GP3030LK, EBC3030C, EGP-3030, EGP3030, EGP3030K, EGP3030LK, EJ3030, EPRO3030STD-78, FDBS3030TC, FGBT3030T, FLT3030SB28, FLT3030SCB20, FLTK3030LB24, GC3030, GP3030, GP3030-MD, GP3030K, GP3030KP40, GP3030LK, GP3030MD, GP3030P40, GTASB3030, HABS3030T, HAGP3030, HDA3030WC, HDVSTD30UC, HDXGP3030, HDXGP3030LK, I15431, I3030PB, I3030SB, K022884, K129605, KITDS, KSD3030CP, KSD3030CP-00129, KSD3030CP-00139, KSD3030CP00129, KSD3030CP00139, KSD3030DP, LC3030P40, LONGSTROKE, LTBT3030P, LTBT3030T, LTT3030T, M83030, M83030PB, MA15431, MA15435, MA15444, MA15445, MA15445S, MA15446, MA15451, MA15454, MA3030, MA43311, MA5445, MB15431, MBIGP3030, MBIGP3030LK, MBMA15431, MBMA15445, MBMA15445S, MBMA3030, MBMC3030B, MBMC3030P75, MC3030, MC3030B, MC3030P75, MD15445, MDMA15431, MDMA15445, MG3130051, MG3131051, MG3230008, MG3230008X, MG3430001, MG3430008X, MG3430051, MG3430051X, MG3430720, MG3430851, MG3437060, MG4030051, MG4030151, MGM 3230008, MGM 3230008X, MGM-3430008, MGM3230008, MGM3230008X, MGM3430008, MGM3430008X, MGM3430051, MGP3030, MI15431, MI15445, MI3030049, MI53030017, MIDGP3030, MIDGP3030LK, MIMA15431, MIMA15444, MIMA15445, MIMA15451, MIMA5445, MIMQ48300, MQ48300, MST1X3030TG, MX3030EC, MX3030EC800NN, MXMA15431, MXMA15445, N4830A, N4830AA, N4830AD, N4830AE, N4830B, N4830EA, NLF1010447, NT3030ELS, NT3030ELS-KIT, NT3030ELS-KITDS, NT3030ELSKIT, NT3030ELSKITDS, NT3030STD, NT3030STD-78, NT3030STD-KIT, NT3030STD-KITDS, NT3030STD78, NT3030STD78DS, NT3030STD78TC, NT3030STDKIT, NT3030STDKITDS, NTBS3030T, NTBT3030TC, NW3030039, NW3030049, NW3030PC, NW53030017, OB3030PB, OB3030SB, OBI3030PB, OBI3030SB, OTR3030, OTR3030PBK, OTR3030PBK-LS, OTR3030PBKLS, OTR3030PBLS, OTR3030SB, OTR30SB, OV3030, PB3030K, PB3030LSK, PET/SB3030CC, PF3030PBLS, PF3030TS, PLBPS3030KLS, QD12560, QD3030C, QD3030PBKIT, RBPBPS-3030KLS, RBPBPS3030KLS, SA3030RB, SB23030, SB3030CC, SB3030PKC, SB3030PKLC, SB63030, SB83030, T1X3030TG, T3030T, TE3030TOMNI, TE3030TOMNIC, TE3030TOMNIDBL, TETSE3030T, TM3030C, TMBS3030T, TMBT3030T, TP3030BK, TP3030NC, TP3030PBK, TP3030PC, TP3030WC, TRBS3030P, TRBT3030TC, TS3030TOMNI, TS3030TOMNIC, TS3030TOMNIDBL, TS3030TPCP, TS3030TPCS, TS3030TPREM, TS3030TPW, TSE3030T, TSXTSE3030T, TYPE30, V1090537, V109537, XTSE3030T, ZAJ3230008, ZAJ3230008Q, ZAJ3230008X, ZAJ3430008, ZAJ3430008Q, ZAJ3430008Q20, ZAJ3430008X, ZAJ3430051, ZAJ3430051X, ZAJT3230008X, ZAJT3430008X, ZZGP3030, ZZGP3030LK, ZZMG3131051
Specifications
Brand | mgm brakes |
Model Number | TR3030 |
MPN | 3430008X |
Width | 8.5 in. |
UOM Quantity (Per Unit of Measure) | 1 |
Unit of Measure (case, ea, drum, etc.) | each |
Height | 8.5 in. |
Benefits | This TR3030 s-cam brake chamber with piggyback is designed for parking brakes. The TR model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head. It offers a long life power spring (spring size is 30); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm. This brake chamber with double diaphram and standard stroke contains a service size of 30; port size measurement of 3/8-18 NPTF and a stroke of 2.5 inches. Its "B" measurement is 6.66 inches; "C" measurement is 8.31 inches; "D" measurement is 8.21 inches and inlets are 3/8-18 NPTF. Package quantity of 20. |
