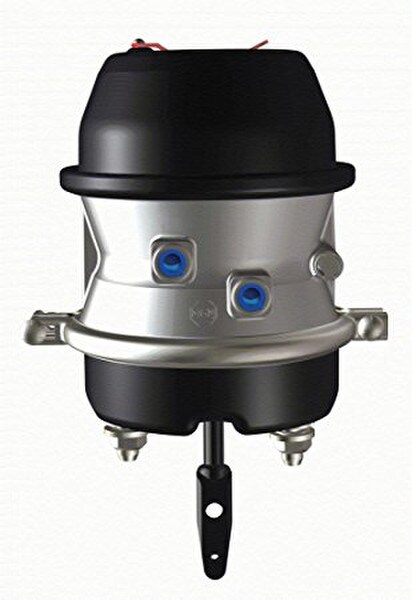

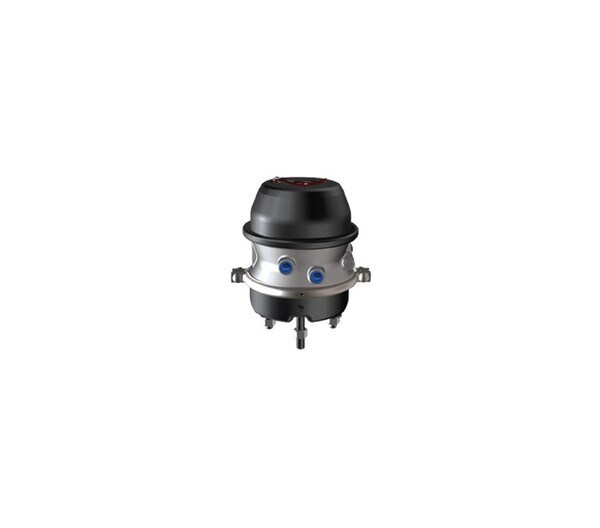

MGM 3030 Combo Spring Brake - 3430051X

Product Description

Early signs of failing spring brake chambers often go unnoticed without visual inspection. When performing routine maintenance on your semi-truck or other commercial vehicle, you may want to check to see if the brake chamber rod is bent; isn't fully retracting or chamber and slack adjusters are out of adjustment. It could be time for a replacement. After all, brake chambers should be replaced every two-five years.

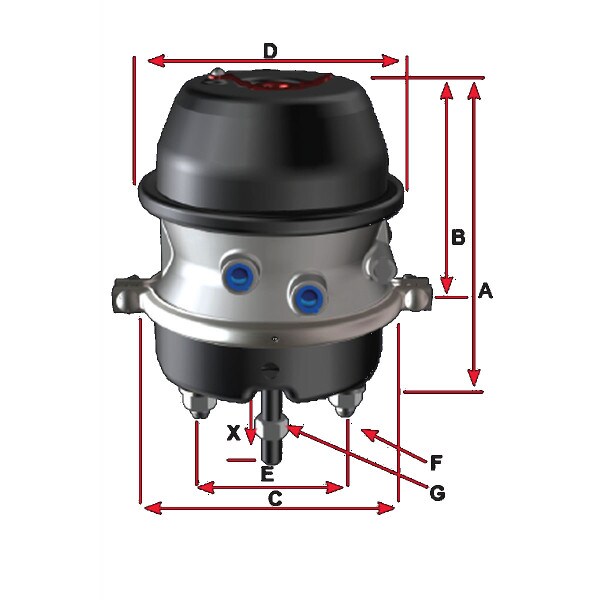

This TR3030 s-cam brake chamber is designed for parking brakes. The TR model with composite guide corrosion fighter technology (T30 spring side models only) features a tamper-resistant design and externally stored released bolt with epoxy-coated head and center hole shield. It offers a long life power spring (spring size is 30); 360 aluminum center case and weatherseal plug in addition to a heavy-duty nylon neoprene diaphragm and steel non-pressure chamber. This brake chamber with double diaphragm and standard stroke contains a service size of 30; port size measurement of 3/8-18 NPTF and a stroke of 2.5 inches. Its "A" measurement is 9.04 inches; "B" measurement is 6.71 inches; "C" measurement is 8.32 inches; "D" measurement is 8.21 inches; "E" measurement is 4.75 inches; F" measurement is 5/8-11 UNC; "G" measurement is 5/8-18 UNF and inlets are 3/8-18 NPTF. X-min measures 8 inches.

MGM's limited warranty depends on product and application. Contact us to learn more!

Since 1956, MGM has been a top solution provider of quality spring brake actuator technology and electronic brake monitoring systems servicing trucks, buses, and other types of heavy-duty commercial vehicles. When in need of replacement air disc brake parts and components for your heavy-duty application, turn to MGM Brakes!

Features

• Service size of 30
• Port size measurement of 3/8-18 NPTF
• Stroke of 2.5 inches
• "A" measurement is 9.04 inches
• "B" measurement is 6.71 inches
• "C" measurement is 8.32 inches
• "D" measurement is 8.21 inches
• "E" measurement is 4.75 inches
• F" measurement is 5/8-11 UNC
• "G" measurement is 5/8-18 UNF
• Inlets are 3/8-18 NPTF
• X-min measures 8 inches

Includes

TR3030 s-cam brake chamber

Warranty

MGM's limited warranty depends on product and application. Contact us to learn more!

Cross Reference

1010447, 10326, 12560, 15431, 15439, 15445, 15446, 1691135C91, 179SB3030S, 23030C, 250NFLT3030SCB20, 286122, 286123, 286124, 286125, 286126, 286153, 286251, 286332, 286333, 286334, 286335, 286336, 286337, 286338, 286339, 286340, 286341, 286342, 286343, 286344, 286345, 286346, 286347, 286348, 286349, 286350, 286351, 286352, 286353, 30 30, 30/30, 3030-PHD, 3030039, 3030049, 30304, 3030B, 3030C, 3030CI, 3030CIS, 3030EC, 3030EC800NN, 3030ESLR, 3030GSTB, 3030NC, 3030P75, 3030PC, 3030PHD, 3030RB, 3030SB, 3030T, 3030TC, 3030TN2-CRT, 3030TN2CRT, 3030TN2ULC, 3030TOMNI, 3030TOMNIC, 3030TOMNIDBL, 3030TPCP, 3030TPCS, 3030TPREM, 3030TPW, 3030WC, 3031SBA, 3033075, 3033075LC, 3130051, 3131051, 33030C, 33030CD, 3430051, 3430051X, 3430720, 3437060, 3506534, 3918827, 3945423, 4030051, 4030151, 430051X, 430058, 43BC2, 5007132, 5007132N, 53030017, 555-3430051X, 5553430051X, 5554-3430051, 5554-3430051X, 55543430051, 55543430051X, 800831, 800831N, 85107268, ABPN42A33030CD, ACA-78961700, ACA78961700, BG15431, BG15445, BGI15431, BGMA15431, BGMA15445, BH5007132, BM3030T, BM30C, BS3030T, BS3030TC, BT3030T, BT3030TC, BV3030RB, BV3033075, BV3033075LC, BW286122, BW286123, BW286124, BW286125, BW286126, BW286153, BW286251, BW286332, BW286333, BW286334, BW286335, BW286336, BW286337, BW286338, BW286339, BW286340, BW286341, BW286342, BW286343, BW286344, BW286345, BW286346, BW286348, BW286349, BW286350, BW286351, BW286352, BW286353, BW5007132, BW800831, BW800831N, BWTP3030NC, BWTP3030WC, BWTYPE30, BX286347, CHEAP, CL23030C, CL3030, CL33030C, CLBM30C, CS9059, DE0702003, DI12560, DN3030PC, DP12560, DP3030CI, EBC3030C, EJ3030, EPRO3030STD-78, FDBS3030TC, FGBT3030T, FLT3030SCB20, GC3030, GP3030, GTASB3030, HABS3030T, HDA3030WC, HDVSTD30UC, I15431, I3030SB, K022884, K129605, LC3030P40, LTBS3030T, LTBT3030T, LTT3030T, M3430051X, M3430058, M83030, MA15431, MA15443, MA15445, MA15445S, MA15446, MA15451, MA3030, MA5445, MB15431, MBMA15431, MBMA15445, MBMA15445S, MBMA3030, MBMC3030B, MBMC3030P75, MC3030, MC3030B, MC3030P75, MD15445, MDMA15431, MDMA15445, MG-3430051, MG3130051, MG3131051, MG3430051, MG3430051X, MG3430720, MG3430851, MG3437060, MG4030051, MG4030151, MGM-3430051, MGM3430051, MGM3430051X, MGM3430058, MGMZAJ3430051, MI15431, MI15445, MI3030049, MI53030017, MIMA15431, MIMA15445, MIMA15451, MIMA5445, MS3430051, MST1X3030TG, MSZZ3430051, MX3030EC, MX3030EC800NN, MXMA15431, MXMA15445, NLF1010447, NT3030STD-78, NT3030STD78, NT3030STD78DS, NT3030STD78TC, NTBS3030T, NTBT3030TC, NW3030039, NW3030049, NW3030PC, NW53030017, OB3030SB, OBI3030SB, OTR3030, OTR3030PBK, OTR3030SB, OTR30SB, OV3030, PET/SB3030CC, PF3030TS, QD12560, QD3030C, S-D603, SA3030RB, SB23030, SB3030CC, SD603, T1X3030TG, T3030T, TE3030NC, TE3030TOMNI, TE3030TOMNIC, TE3030TOMNIDBL, TETSE3030T, TM3030C, TMBS3030T, TMBT3030T, TP3030NC, TP3030PC, TP3030WC, TRBT3030TC, TS3030TOMNI, TS3030TOMNIC, TS3030TOMNIDBL, TS3030TPCP, TS3030TPCS, TS3030TPREM, TS3030TPW, TSE3030T, TSXTSE3030T, TYPE30, XTSE3030T, ZAJ-3430051X, ZAJ3430051, ZAJ3430051Q, ZAJ3430051X, ZAJT3430051X, ZZ3430051, ZZMG3131051
