Gabriel Special Applications Shock Absorber - 646155

SKU 646155
$82.33
(0) No Reviews yet

Details

*THIS PART IS NON-RETURNABLE*

Product Description

Shock absorbers are a vital piece of any truck's suspension. They quite literally keep you grounded as a driver. Bad shocks not only lead to a bumpy ride, but can increase a truck's stopping distance as well as it's turning accuracy. Don't settle for low quality shocks and get a fresh set that fits your trucks specifications.

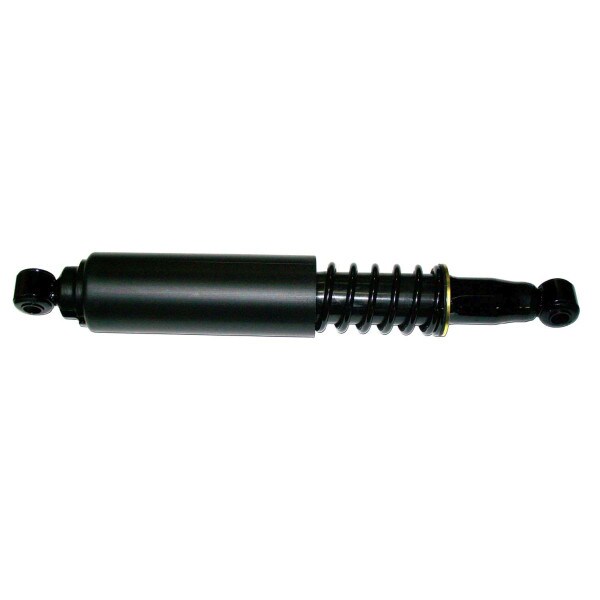

This Gabriel Heavy Duty Shock Absorber is built for special applications to deliver maximum control, comfort and durability in high intensity environments. It's also built with a coil-over shock for self-centering suspensions. This specific shock absorber is 14.1 in. fully collapsed and 22.45 in. fully extended. The stroke size on this shock is 8.35 in. and the bore size is 1.1875 in. It also has a protective dust tube around the shock. For various axle and vehicle applications.

This particular product comes with a 1 year, 100,000 mile warranty.

Gabriel invented the original auotomotive shock absorber in 1907 and haven't taken their foot off the gas since. Covering more than 96% of North American vehicle, Gabriel is where you go when you want to purchase innovative shock solutions from a brand you trust.


Features

  • Special Application Heavy-Duty Cab Shock Absorber
  • 14.1 in. to 22.45 in. Collapsed to Extended Length at Bumper Contact
  • Delivers maximum control, comfort and durability
  • Coil-over shock for self-centering suspensions
  • 8.35 in. Stroke Size
  • 1.1875 in. Bore Size
  • Includes protective dust tube.
  • 1 Year, 100,000 Mile Warranty

Includes

Includes One (1) Shock Absorber


Warranty

1 Year, 100,000 Mile Warranty


Cross Reference

020273541, 020273541-4, 020273544, 03-04628, 03-07420, 0306084PLUS, 0307423PLUS, 044162S, 10-13051-001, 10-13776-000, 10-13859-000, 10-83203, 10023, 1012388000, 1012390000, 1012703000, 1013021000, 1013063000, 1013205000, 1013634000, 1013684000, 10147, 10147HD, 102-13441-10, 1021344110, 1023160201, 1080099, 1083203, 1083225, 1085000, 1085005, 1085300, 1085310, 1089000, 1091367, 1091379, 11418, 11599, 1170719, 11931, 1210-0001, 1210-0002, 1210-0007, 1210-0009, 1210-0010, 1210-0012, 12100001, 12100005, 12100007, 12100009, 12100010, 12100012, 12111, 12111ADV, 12111AOV, 12474917, 1250563B000, 1253069B000, 1266009B000, 1270563B000, 1270563B003, 1288503, 12J510, 1310002, 1310004, 1317570B001, 1360386, 1360386 MTM, 1360386MTM, 142108, 1431085MTM, 143699-0185, 1436990185, 14496, 14583, 1473224, 1491909, 1491909 MTM, 1491909MTM, 14QK-2108, 14QK-2108P1, 14QK2108, 14QK2108P1, 14QK3101M, 1540212, 1540459, 1583470, 16-14759-000, 16-17144-000, 16-17361-000, 16-18103-000, 16135, 1614759000, 1617144000, 1617361000, 1618103000, 16327, 16616, 16652, 16653, 16681, 16773, 16778, 17069, 17186, 17186-01, 1718601, 17358-01, 18800-01, 1880001, 20001, 20002, 200188, 20126, 2018987C3, 20273541, 202735414, 20273544, 2029200C91, 2034140, 2034140MTM, 204994R91, 20889, 210533R91, 210534R92, 210535R91, 210536R91, 210537R91, 210538R91, 21832, 21998392, 22715, 23013, 2352401, 23566, 24088, 24125, 24392-01, 25621810, 25624365, 26652, 27058, 280499, 288920C91, 288921C91, 290460, 29432, 30009612284, 301565, 301566, 301627, 301630, 3050961284, 306084, 3082285, 3093252, 311633, 315399, 315404, 315411, 315546, 315551, 315552, 315553, 316319, 3199949, 3199959, 3199980, 341617, 341625, 341626, 341631, 34185310, 34189423, 345604, 345607, 345613, 345617, 345618, 373013401, 373013404, 373013409, 373013412, 37429, 37432, 3919056, 3919570, 3919913, 3919949, 3919959, 3919994, 3945812, 3U2Z18124EA, 404951, 410040, 410042, 410056, 410057, 42006409, 42019189, 434237, 434277, 436028, 436118, 438013, 441600, 453561C91, 453562C91, 453565C91, 453566C91, 453568C91, 453569C91, 467371C91, 467372C91, 471700005079, 481700000000, 481700000000000, 481700000477, 481700000493, 481700131919, 482000000000, 48200000000000, 48632155, 4940627, 508-26, 508-9, 508-90, 50826, 50835, 50839, 50842, 50847, 50859, 510017, 517-05001-23, 517-05110-20, 517-05511-14, 517-05805-20, 517-05808-20, 5170511020, 5170551114, 5170580520, 5170580920, 520001, 524125, 53041, 53059, 5348631, 553209, 5559363, 557012, 557033, 57252, 57306608, 57306893, 57365404, 57365416, 57365419, 57365436, 57366634, 57366893, 57374409, 57639, 58049, 58059, 59011, 59019, 59030, 5C3Z18125CF, 5C3Z18125DA, 5U2Z18V124AA, 5U2Z18V124BA, 600-115994B, 600-11599M, 600-188206, 600104MT, 600115994B, 60011599C, 60011599M, 600188206, 601104, 61310232, 6216001, 62161, 630811, 632147, 632155, 632447, 64442AX, 64442AX MTM, 64442AXMTM, 646124, 646128, 64612840X, 646168, 646177, 646201, 64838001L, 64838002, 64838002L, 64838003L, 650150, 650404, 650404MT, 650416, 650416MT, 650419, 650419MT, 650436, 650436MT, 651056, 65173, 653511-01, 65351101, 65404, 65404M, 65416, 65416M, 65419, 65419M, 65420, 65436, 65436M, 65458, 65459, 654907, 65495-1, 654951, 65501, 656155, 65911, 659222, 659300, 660104MT, 660195, 660195MT, 6608, 661104, 66424, 66437, 66502, 66503, 66504, 66506, 665133, 665197, 665246, 66553-6, 665531, 665533, 665536, 66554540I, 665568, 665698, 665724, 665746, 665756, 66576-6, 665761, 665766, 665788, 665813, 665862, 665902, 665903, 665906, 665918, 665937, 665944, 665945, 665950, 66608, 66608M, 66634, 66634M, 66893, 66893M, 66957, 671707, 671948, 680063, 680178, 680239, 68023940Y, 680268, 6803230200, 680341, 680458, 680467, 680476, 680486, 680509, 680547, 680565, 680568, 680571, 680591, 680616, 680702, 680756, 680769, 69670, 69672, 69715, 69717, 69732, 6KP857, 6KP857 MTM, 6KP857MTM, 700098-01, 70009801, 701071-01, 70107101, 70213601, 70623, 70642, 70654, 70701, 70701PLUS, 718718C, 718718CHD, 727603, 728600, 728614, 728630, 73516, 74079, 74409, 78005, 78013, 7C3418080DCB, 7W7Z18125B, 821952, 821954, 821955, 821970, 822158, 822345, 8235-83128, 8235-89436, 823583128, 823589436, 82401029, 82401054, 82401148, 83128, 83130, 83176204, 83176207, 83176211, 83176230, 83176234, 83176236, 83176240, 83203, 8320307, 83214, 83217, 83225, 83389, 83911, 84-1168, 85000, 8500007, 85000GA, 85000GAB, 85000HSK, 85005, 85013, 85029, 85030, 85043, 85051, 85052, 85137420, 85300, 85310, 85323, 85336, 85738, 85900, 85902, 85908, 85911, 85932, 85934, 88-1540, 88-1639, 88-1644, 881644, 88982688, 8901020, 8901025, 8901027, 8901030, 8901031, 890120, 890414, 890449, 89414, 89419, 89423, 89430, 89436, 89436GSK, 89440, 90-1577-SP1, 90-1907-SP1, 90-1922, 90-2396-SP1, 90-2477, 90-2478, 90013787, 9004162, 90044008, 90044071, 90044081, 90044086, 90044095, 90044162, 90044162S, 90044626, 90044685, 90044981, 90044982, 90044991, 90044992, 90045001, 90045003, 90045040, 90045054, 90045075, 90045298, 90045299, 90045331, 90045337, 90045564, 90045575, 90045666, 90045669, 9015771, 901577SP1, 901922, 902291, 902396SP1, 902477, 902627, 9423-00, 942300, 97220100008, 97221000170, 97999902634, 98583-019, 98583019, A-10023, A-11931, A-14496, A-14583, A-145B3, A-1667, A-1668, A-20001, A-20002, A-20126, A-20889, A-2232, A1-6-135, A10023, A11931, A14496, A14583, A16135, A1667, A1668, A20001, A20002, A20126, A20889, A21553, A646155, A665937, A83128, A83203, A85000, A85310, A85323, A85900, A89423, A89430, A89436, AMS600102, AMS600103, AMS600104, AMS600109, AMS600167, AMS600169, AMS600172, AMS600173, AMS650110, AMS650404, AMS650410, AMS650416, AMS650419, AMS650420, AMS650436, AMS650459, AMS660102, AMS660104, AMS660109, AMS660167, AMS660169, AMS660172, AMS660173, AMS660195, AMS660215, AMS660502, AMS660504, AMS66893, AMS700119, AMS700402, AMS700405, APL-101743, APL-101748, AR-1434, AR-2451, AR-718-C, AR-718-C-HD, AR-781, AR1434, AR2451, AR718C, AR718CHD, AR781, AS413, AS433, AS563B, ASHV1028, ASHV3, ASHV4, AT547, AT683, AT684, AT685, AT764, B-21832, B-22345, B-22715, B-23013, B-23014, B-23361, B-23566, B-24023, B-24088, B-24125, B-26652, B-27058, B-27747, B-29432, B-29678, B21832, B22715, B23013, B23361, B23566, B24023, B24088, B24125, B24577, B26652, B27058, B29432, B83203, BOOSTERSHOCK, C0062-D, C0062D, C0078, C6PF18077A, CAHL-409, CAHL409, CAT730, CAT750, CAT803, CAT817, CAT824, CAT831, CAT832, CAT839, CAT853, CAT868, CAT904, CAT910, CAT911, CAT919, CAT944, CAT960, CAX-893, CAX893, D250826, DAY34183300, DN1085000, DN34185310, DN34189423, DN632147, DP34183300, DPM65404, DPM65416, DPM65419, DPM65436, DPM66502, DPM66608, DPM66634, DPM66893, DPM74409, E3129, E65404, E74409, E7XZ18125A, E7XZ18125J, E83203, E83214, E83217, E83225, E83903, E83910, E83911, E85000, E85310, E89423, E89436, ECEMN65404, ECEMN66893, EIE3129, EIE83203, EIE85000, EIE85310, EIE89423, EIEMN65404, EIEMN66893, EIEMN74409, EMN65404, EMN65416, EMN65419, EMN65436, EMN66502, EMN66608, EMN66634, EMN66660, EMN66893, EMN6893, EMN74409, EMNEMN65404, EU632147, EU632155, EU65404, EU65416, EU65419, EU65436, EU66634, EU66893, EU74409, EU83911, EUE83203, EUE83903, EUE83910, EUE85000, EUE85310, EUE89423, EUEMN65404, EUEMN65416, EUEMN65419, EUEMN65436, EUEMN66502, EUEMN66608, EUEMN66634, EUEMN66893, EUEMN6893, EUEMN74409, EUEMNEMN65404, EUSA65404, EUSA65416, EUSA65419, EUSA65436, EUSA66502, EUSA66634, EUSA66893, EUSA74409, F4TZ18124D, F5HZ18125A, F65404, F65416, F65419, F65436, F66502, F66608, F66634, F66893, F6HT18045AC, F6HT18045CC, F6HT18045EB, F6HT18045EC, F6HT18045HB, F6HZ18124C, F6HZ18124D, F6HZ18124E, F6HZ18124F, F74409, FF66893, FLF65404, FLF65416, FLF65419, FLF65436, FLF66502, FLF66608, FLF66634, FLF66893, FLF74409, FLL83203-07I, FLL8320307I, FLL85000-07I, FLL8500007I, FLS-632147, FLS-83128, FLS-83203, FLS-85000, FLS-85310, FLS-85323, FLS-85900, FLSD65404, FLSD66893, FVMAE65404, FVMAE74409, GAB/83203, GAB/85000, GAB83203, GAB85000, GAB89436, GB-83128, GB83128, GBL 85000, GBL83128, GBL85000, GBL89436, GF83128, GF89436, GSX-89423, GSX-89436, GTK-83128, GTK83128, H1632147, H1A14496, H53-20415-006, HEN/S23566, HENS-20001, HENS-20002, HENS-20126, HENS-22715, HENS-23566, HENS-24088, HENS20001, HENS20002, HENS20126, HENS22715, HENS23566, HENS24088, HOL90045298, HS83128, HTA200001, HTA200002, HTA20001, HTA20002, K374-29, K374-29PLUS, K374-32, K374-7, K374-9, K374-C7, K37428PLUS, K37429, K37429PLUS, K37432, K3744, K3747, K3749, K374C7, L57639, L59019, L76117, LT66893, LT74409, LTL57639, LTL59019, LTL76117, M632147, M646155, M646177, M65404, M65416, M65419, M65436, M66437, M66502, M665937, M66608, M66634, M66893, M74409, M83128, M83203, M85000, M85310, M85323, M85900, M89423, M89436, MAE 66608, MAE65404, MAE66608, MAE74409, MB-37737-30, MBSA65404, MBSA65419, MBSA65436, MBSA66893, MBSA74409, MI65404, MI65416, MI65419, MI65436, MI66502, MI66634, MI66893, MI74409, MISA65404, MISA65416, MISA65419, MISA65436, MISA66502, MISA66634, MISA66893, MISA6893, MISA74409, MN65404, MN65416, MN65419, MN65436, MN6608, MN66502, MN66608, MN66634, MN66893, MN6893, MN74409, MNEMN65404, MNEMN65416, MNEMN65419, MNEMN65436, MNEMN66502, MNEMN66634, MNEMN66893, MNEMN74409, MNEMNEMN65404, MNSA65404, MNSA65416, MNSA65419, MNSA65436, MNSA66502, MNSA66634, MNSA66893, MNSA74409, MO65404, MO65416, MO65419, MO65436, MO66502, MO66634, MO66893, MO6893, MO74409, MON/65416, MON/66893, MON65416, MON66893, MON74409, MR65419, MR66893, MR74409, MS632147, MS632155, MS65404, MS65416, MS65419, MS66502, MS66503, MS66608, MS66634, MS66893, MS6893, MS74409, MSEUEMN74409, MSF66893, MSMAE74409, N65404, N65416, N65419, N65436, N66502, N66608, N66634, N66893, N74409, NE6893, NE90044162, NEW900-44-162, NEW900-45-054, NEW900-45-298, NEW900-45-299, NEW90044162, NEW90045298, NEW90045299, NS500699, NW57366893, NW57374409, NW65404, NW6893, NW90044008, NW90044071, NW90044081, NW90044086, NW90044095, NW90044162, NW90044448, NW90045040, NY90044162, OE10455, Part Number, R-003273, RA14496, RC SA3128, RC SA3203, RC SA5000, RC SA5310, RC SA5900, RC SA6155, RCSA3128, RCSA3203, RCSA5000, RCSA5310, RCSA5900, RCSA6155, RWAS563B, S-14583, S-1667, S-1668, S-18681, S-20001, S-20002, S-20126, S-20889, S-21832, S-2230, S-2232, S-22345, S-22715, S-23013, S-23014, S-23566, S-24088, S-24125, S-24912, S-26652, S-29432, S-29678, S-F384, S11799, S14496, S14583, S1667, S1667HAA, S1668, S18681, S20001, S20002, S20126, S20889, S21832, S22715, S23013, S23361, S23566, S24023, S24088, S24125, S24577, S24912, S26652, S29432, S6009B, SA3128, SA5000, SA5310, SA5323, SA5900, SA6155, SA65404, SA65416, SA65419, SA65436, SA66502, SA66608, SA66634, SA66893, SA6893, SA74409, SAF90045299, SD65404, SD66893, SF384, SMR560403, SMR560407, SMR560408, SMR560414, TDA83128, TDA89436, TQA14496, TQS14496, TW34183300, TX651097, UCD-006216-001, UCD-6216-1, UCD006216001, UCD6216001, UCD62161, UDS14496, UEY 1124001, V6F66893, VC85000, VC85310, VC89423, WSA0083203, WSA0085000, WSA0085310, WSA0085900, WSA0646155, XL2Z18125BA, Y34183300, ZYWSA0083203, ZYWSA0085000, ZYWSA0085310, ZYWSA0085900


Specifications

Width5981
Stroke Inch5985
Height5980
Model5982
Length5986
BrandGabriel
Stroke212.09 mm.
MPN646155
ColorBlack
Width3.75 in.
VMRSGBRLR
UOM Quantity (Per Unit of Measure)1
Unit of Measure (case, ea, drum, etc.)each
Type / StyleShock Absorber
Height27.25 in.
Global Trade Number43645710521
BenefitsThis heavy duty shock absorber is built for special applications to deliver maximum control, comfort and durability in high intensity environments. It's also built with a coil-over shock for self-centering suspensions. This specific shock absorber is 14.1 in. fully collapsed and 22.45 in. fully extended. The stroke size on this shock is 8.35 in. and the bore size is 1.1875 in. It also has a protective dust tube around the shock.
